DroneCAN Power Module:
(Подходит для всех полётных контроллеров Holybro Autopilot Flight controller и к любым автопилотам на шине CAN Bus)
|
Model |
PM08-CAN |
|
Input Voltage |
7 to 60V (2S to 14S) |
|
Current Rating |
|
|
Max Current Sensing |
376A |
|
Output Voltage |
5.2V/3A Max |
|
Ports |
Molex CLIK-Mate 2mm 6Pin |
|
Communication Protocol |
DroneCAN |
|
Dimensions |
45 × 41 × 26mm (Not Include Cable) |
|
Weight |
185g (Include Cable) |
|
Mounting Hole |
Available |
|
Applicable Products |
All Autopilot Flight controller with CAN Bus |
Аналоговые модули питания:
(Подходят для Pixhawk 6C & 6C Mini, Pix32 V6, etc)
|

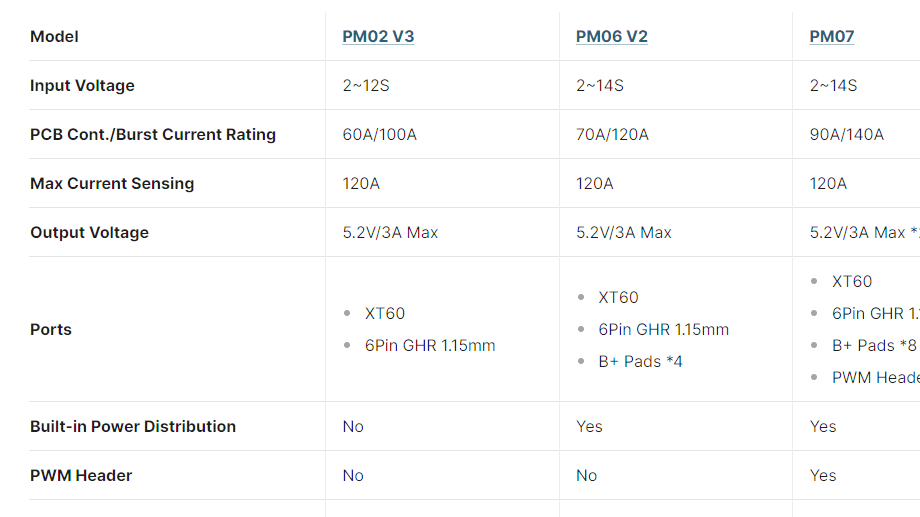

Model |
PM02 V3 |
PM06 V2 |
PM07 |
PM08 |
|
Input Voltage |
2~12S |
2~14S |
2~14S |
2~14S |
|
PCB Cont./Burst Current Rating |
60A/100A |
70A/120A |
90A/140A |
200A/1000A |
|
Max Current Sensing |
120A |
120A |
120A |
237.6A |
|
Output Voltage |
5.2V/3A Max |
5.2V/3A Max |
5.2V/3A Max *2 |
5.2V/3A Max |
|
Ports |
|
|
|
|
|
Built-in Power Distribution |
No |
Yes |
Yes |
No |
|
PWM Header |
No |
No |
Yes |
No |
|
Dimensions |
25 x 25 x10 mm |
35 x 35 x10 mm |
68 x 50 x 10 mm |
101 x 45 x 26 mm |
|
Weight |
20g |
24g |
43.8g |
151g |
|
Mounting Hole |
N/A |
30.5 x 30.5 mm |
45 x 45 mm |
79 x 38.1mm |
|
Applicable Products |
|
|
|
|
Цифровые модули питания:
(Подходят для Pixhawk 5X & 6X и других FMUv6X FC)
|
Model |
PM02D |
PM03D |
PM06D |
PM08D |
|
Input Voltage |
|
2~6S |
2~14S |
2~14S |
|
PCB Cont./Burst Current Rating |
60A/100A |
60A/120A |
70A/120A |
200A/1000A |
|
Max Current Sensing |
|
164A |
327A |
327A |
|
Output Voltage |
5.2V/3A Max |
|
5.2V/3A Max |
5.2V/3A Max *2 |
|
Ports |
|
|
|
|
|
Built-in Power Distribution |
No |
Yes |
Yes |
No |
|
PWM Header |
No |
No |
No |
No |
|
Dimensions |
25 x 25 x10 mm |
84 x 78 x 12 mm |
35 x 35 x10 mm |
101 x 45 x 26mm |
|
Weight |
20g |
59g |
24g |
151g |
|
Mounting Hole |
N/A |
45 x 45 mm |
30.5 x 30.5 mm |
79 x 38.1mm |
|
Applicable Products |
Pixhawk 5X & 6X |
Pixhawk 5X & 6X |
Pixhawk 5X & 6X |
Pixhawk 5X & 6X |
