GNSS система Holybro H-RTK F9P Rover lite

GNSS система Holybro H-RTK F9P Rover lite

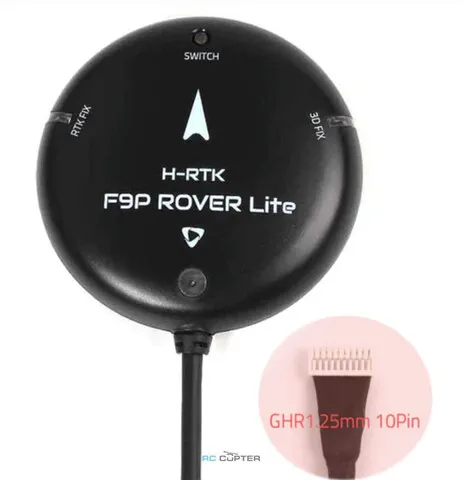

H-RTK F9P is the latest differential high-precision GNSS positioning system series from Holybro. This system provides multi-band RTK with fast convergence times and reliable performance, concurrent reception of GPS, GLONASS, Galileo and BeiDou, and fast update rate for highly dynamic and high volume applications with centimeter-accuracy. It uses a UBLOX F9P module, a IST8310 compass, and a tri-colored LED indicator. It also has a integrated safety switch for a simple and convenient operation.

This model is lower cost, light weight, and has high performance, It can meet the needs of general DIY users. Due to the lower cost, this model can also greatly minimize the cost of large swarm drone projects such as swarm light shows. It has a integrated safety switch and a tri-colored LED indicator, and it is compatible with the open source Pixhawk series flight controller.

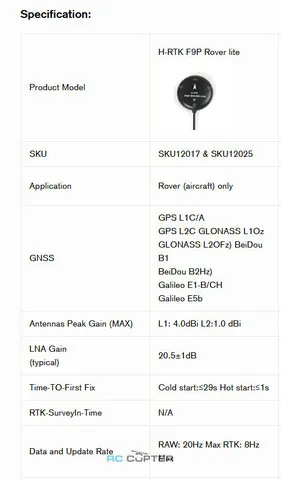

Возможности и характеристики:

В комплекте:

•     H-RTK F9P Rover Lite - 1 шт (опционально)
•     H-RTK F9P Rover Lite 2-й GPS  - 1шт  (опционально)
•     Фиксированное крепление GPS из углеродного волокна (40 мм) - 1 шт
•     Кабель USB (type-c)  - 1 шт

Инструкция:

Using H-RTK with Cube Autopilot

H-RTK Pinout

User Guide: Setup & Getting started.

Другую техническую информацию можно найти на нашей странице документации Holybro.
