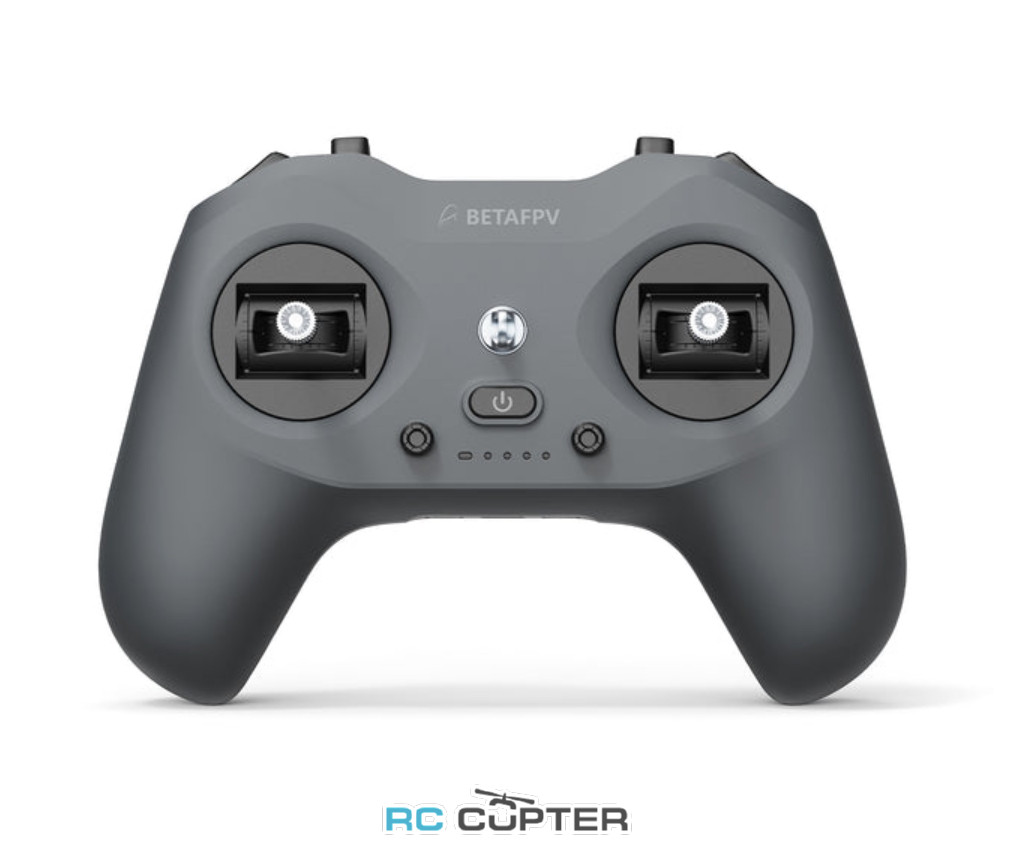

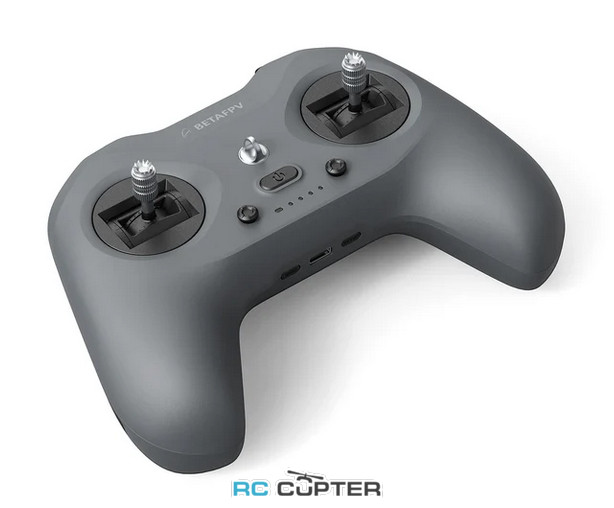

Аппаратура управления BetaFPV LiteRadio 4 M2 (Right stick throttle) ELRS 2.4G

Аппаратура управления LiteRadio 4 переопределяет понятие пульта начального уровня, предлагая профессиональную 10-канальную работу в ультрапортативном корпусе, идеально подходящем для начинающих пилотов. Благодаря двум новым специальным переключателям триммирования для мгновенной настройки в полете он обеспечивает предельно точное управление, независимо от того, летаете ли вы на дронах, осваиваете дрон-футбол, управляете роботами или самолетами. Его стики с усовершенствованным покрытием обеспечивают плавную и надежную работу, а беспроводные режимы Bluetooth позволяют беспрепятственно тренироваться на симуляторе на ПК, планшетах и мобильных устройствах. Аккумулятор 1S емкостью 2000 мАч, созданный для длительной работы, обеспечивает более 8 часов (при мощности 25 мВт) полета или тренировок и полностью заряжается за 40 минут благодаря быстрой зарядке мощностью 15 Вт.

От первых сеансов на симуляторе до освоения реальных полетов — LiteRadio 4 сочетает в себе прочную конструкцию и интуитивное управление, доказывая, что для достижения профессиональной точности не нужна сложная техника. Идеальная отправная точка для вашего путешествия в мир радиоуправления.

LiteRadio 4 Twilight Limited Edition: Fly with Grace, Command with Confidence

Inspired by the serene tones of skyline in the Blue Hour, the LiteRadio 4 Twilight – a limited release of only 1,000 units – combines artistry with engineering in a soft gray-blue finish that evokes calm and focus. This edition elevates performance with Hall Gimbals, delivering pro-level precision for unparalleled smoothness, buttery-smooth control, and exceptional durability. Retaining all the features of the standard version – 10-channel customization, 5D trim adjustments, Bluetooth simulator connectivity, and the 1S 2000mAh battery, the Twilight edition wraps uncompromised capability in an exclusive design. Whether navigating complex FPV routes or executing delicate maneuvers, the LiteRadio 4 Twilight ensures every input feels effortless and every moment in the air remains fluidly in control.

Bullet Points

• Ergonomic Portability: Lightweight design offers all-day comfort for training or travel.
• 10-Channel Customization: Two new tactile switches expand output channels to 10, enabling more flexible controls for drones, robots, drone soccer, and fixed-wing models.
• 5D Trim Adjustments: Two dedicated trim switches allow pilots to effortlessly fine-tune joystick offsets mid-flight for instant balancing.
• Advanced-Coated Gimbal Sensor: Anti-wear coating ensures smooth, accurate stick movement with better durability.
• Wireless Simulator Ready: Bluetooth Joystick Mode connects wirelessly to FPV simulators on PC, mobile, or tablet.
• Fast-Charging Battery: Built-in 1S 2000mAh battery delivers 8+ hours of runtime at 25mW, with 15W charging in just 40 mins.
• Latest LiteRadio Transmitter: Incorporates BETAFPV’s advanced radio transmission technology for reliable, low-latency control.

Specifications

• Item: LiteRadio 4 Radio Transmitter
• Channel: 10
• Color: Gray (Standard Version), gray blue (Twilight Limited Edition)
• Gimbal: Potentiometer (Standard Version), Hall (Twilight Limited Edition)
• RF System: ExpressLRS 2.4G
• RF Output Power: 25mW/50mW/100mW (adjustable)
• Simulator Connection: Bluetooth and USB-cable connection
• Supported Simulator: Most simulators and DJI Virtual Flight
• Port: Type C port (integrates data transfer and charging)
• Charging Power: 5V, max 3A
• Battery: Built-in 1S 2000mAh LiPo
• Endurance: 4-5 hours at 100mW or max 8 hours at 25mW
• Weight: c. 210g
• Dimensions: 172.5mm*118.5mm*72.5mm

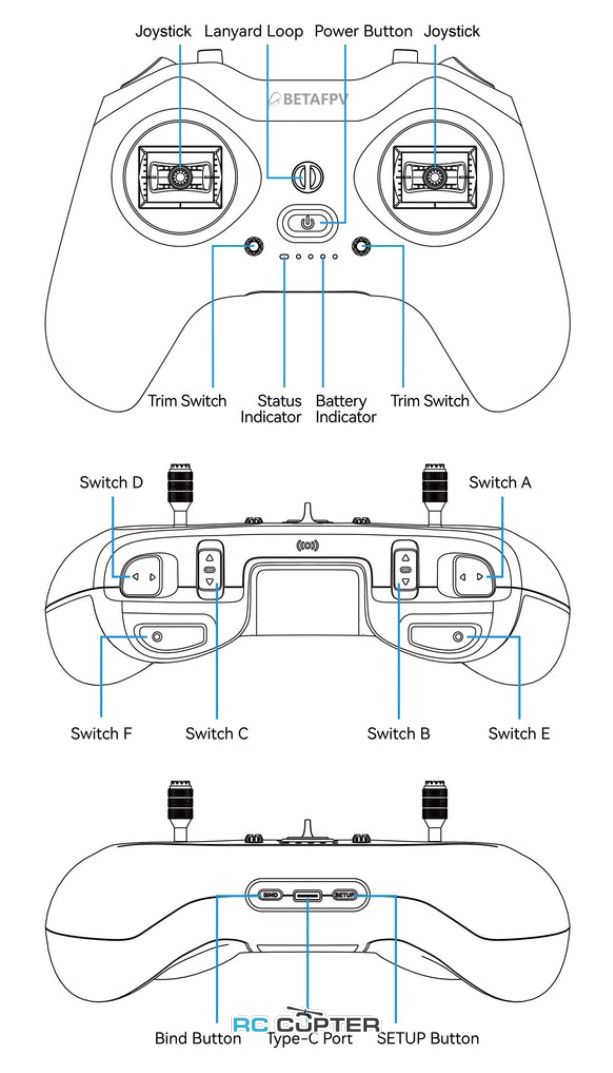

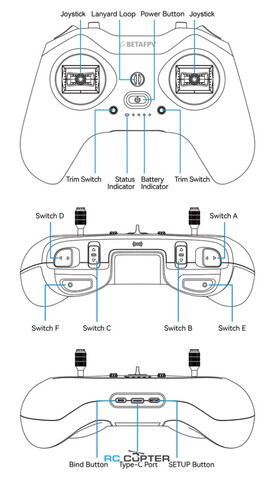

Diagram

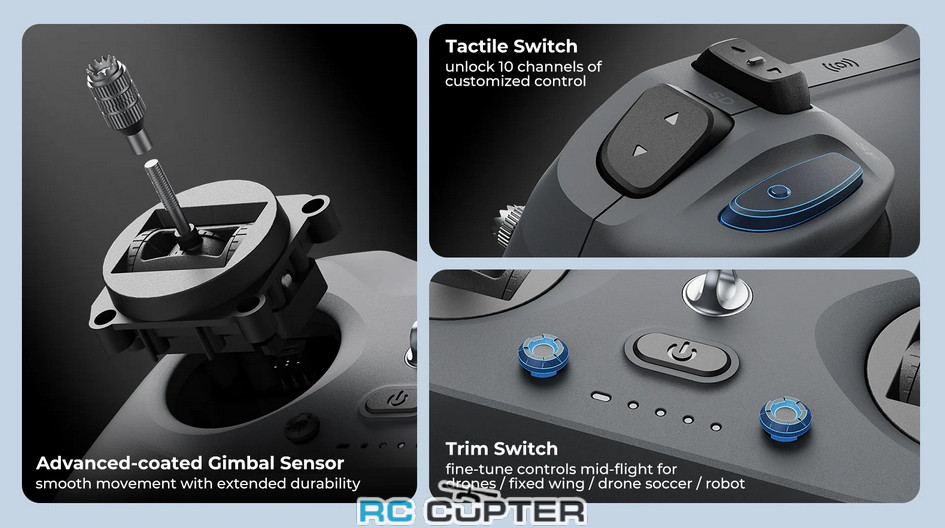

Enhanced Control & Precision at Your Fingertips

The LiteRadio 4 Radio Transmitter elevates pilot mastery with advanced-coated gimbal sensor, two tactile switches and trim switches. 10 output channels now offer more advanced customization with responsive and ergonomic handling, while the trim switches offer 4-directional adjustments with central-tap reset capability - enabling instant in-flight balancing when it matters most. Combined with the advanced-coated gimbal sensor—optimized for silky responsiveness and extended durability—the LiteRadio 4 transforms complex tasks into intuitive actions.

Whether mastering drone, robot, drone soccer, or fixed wing, the LiteRadio 4’s enhanced functionality ensures pilots enjoy unparalleled responsiveness and adaptability. Every input is sharper, Every adjustment effortless.

Train Wirelessly On Any Simulator, Anywhere

The LiteRadio 4 transforms pilot training with its Bluetooth Joystick Mode, offering instant wireless connectivity to FPV simulators across PCs, mobile devices, and tablets. Hone your skills in lifelike environments—no cables, no hassle. Furthermore, the Xbox Mode delivers integration with DJI Virtual Flight, offering the most authentic DJI training experience outside actual flight. Perfect your maneuvers in hyper-realistic aerial simulations, bridging the gap between practice and real-world performance.

Start Small, Control Big

The LiteRadio 4 Radio Transmitter packs professional-grade control into a remarkably compact form. Small enough for your backpack yet powerful enough for competition, its lightweight design doesn’t sacrifice durability—making it the perfect companion for training at home, at the field, or anywhere inspiration strikes.

Fly Longer, Charge Faster

Powered by the built-in 1S 2000mAh LiPo battery, LiteRadio 4 delivers 4-5 hours of operation at 100mW or max 8+ hours at 25mW—enough for all-day training or competition. When it’s time to recharge, the upgraded 15W fast charging gets you back in the air in just 40 minutes.

Evolving Excellence: The LiteRadio Series

From the original LiteRadio 1 to the advanced LiteRadio 4, BETAFPV’s LiteRadio series has redefined compact, high-performance radio transmitters. Now, the LiteRadio 4 elevates the series with 10-channel output, dual trim switches, 15W fast charging, and dual-mode wireless simulator support, making it the most versatile and precise transmitter in the lineup. Each iteration in the LiteRadio lineage demonstrates BETAFPV's dedication to innovation, delivering increasingly sophisticated performance while maintaining the accessible, user-friendly design that made the original so popular.

All Your Favorite FPV Simulators, One Controller

Experience the ultimate flexibility with LiteRadio 4, your gateway to popular FPV simulators like VelociDrone, Liftoff, TRYP, Erea Drone, DRL, DCL, DJI, etc. Whether you're on a desktop, Android device, or tablet, LiteRadio 4 ensures smooth compatibility across all platforms. With the added Xbox mode, enjoy effortless integration with the DJI Flight Simulator on Windows system and elevate your virtual flying experience to new heights.

How can I enable support for the DJI FPV simulator on LiteRadio 2 SE, LiteRadio 3 and LiteRadio 4?

How can I enable compatibility with Android devices on LiteRadio 2 SE, LiteRadio 3 and LiteRadio 4?

BETAFPV Configurator

The BETAFPV Configurator is an open-source configuration tool tailored for BETAFPV drones and remote controls. It enables pilots to effortlessly configure and fine-tune various parameters, ensuring more efficient and optimized flight control.

The BETAFPV Configurator V2.0.0, officially released in December 2024, introduces several exciting improvements:

• Support macOS and Linux (Debian family) platforms.
• Support almost all LiteRadio transmitters, including LiteRadio 1 (FrSky), LiteRadio 2 SE V2 (FrSky, ELRS2 & ELRS3), LiteRadio 3 (FrSky, ELRS2 & ELRS3), LiteRadio 4 (ELRS3) and LiteRadio 4 SE (ELRS3).
• Resolved various known bugs for improved performance.

Download address: https://github.com/BETAFPV/BETAFPV_Configurator/releases

Manual: https://support.betafpv.com/hc/en-us/article_attachments/40772076147737

BETAFPV Configurator features:

• Easy Parameter Adjustment: Designed for BETAFPV's LiteRadio series and Cetus drones with position-hold and auto-hovering features, the software allows pilots to effortlessly adjust PID controller parameters through an intuitive graphical interface, optimizing flight performance with ease.
• Real-Time Feedback: Instantly displays the effects of parameter adjustments, providing real-time monitoring and helping pilots quickly evaluate and refine settings for the drones or remote controls.
• Efficient Troubleshooting: With built-in diagnostic tools, the software assists pilots in checking firmware versions and product status when a issue arises, making it easier to identify and resolve issues, minimizing downtime.
• Streamlined Firmware Flashing: Features a user-friendly firmware flashing mechanism for drones and remote controls, complete with guided instructions and progress indicators, ensuring smooth, error-free updates.

Note: DO NOT power on the transmitter before connecting it to the PC. Doing so will render the USB port non-functional.

File

• LiteRadio 4 Radio Transmitter Manual
• BETAFPV ELRS V3.0.0 firmware.

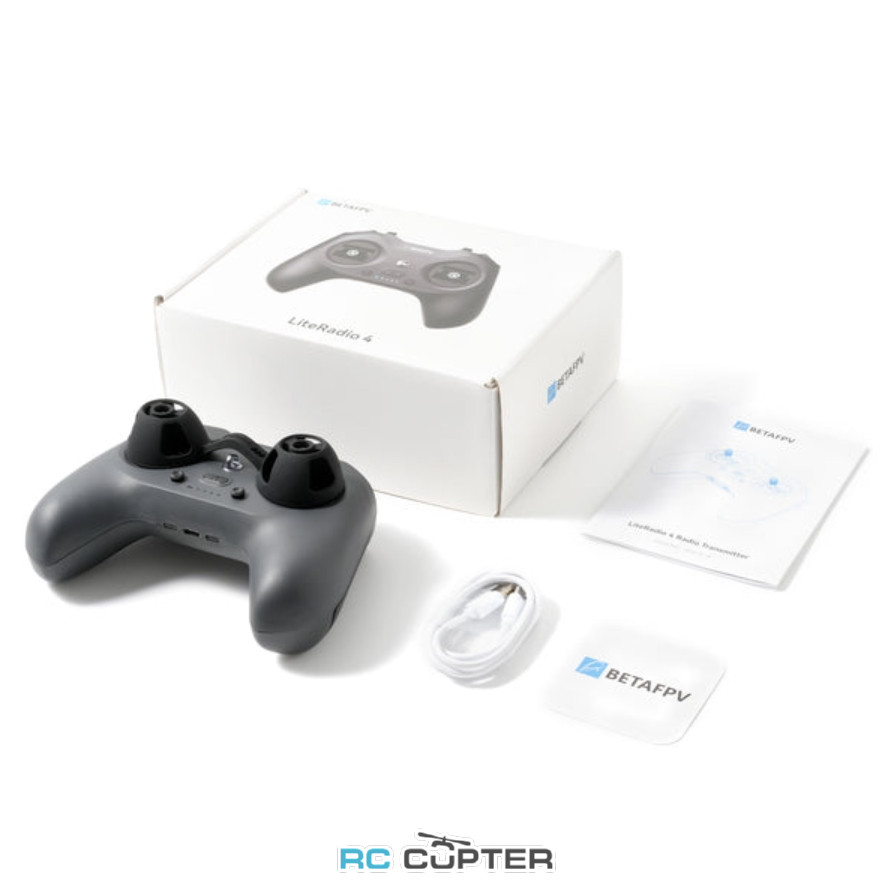

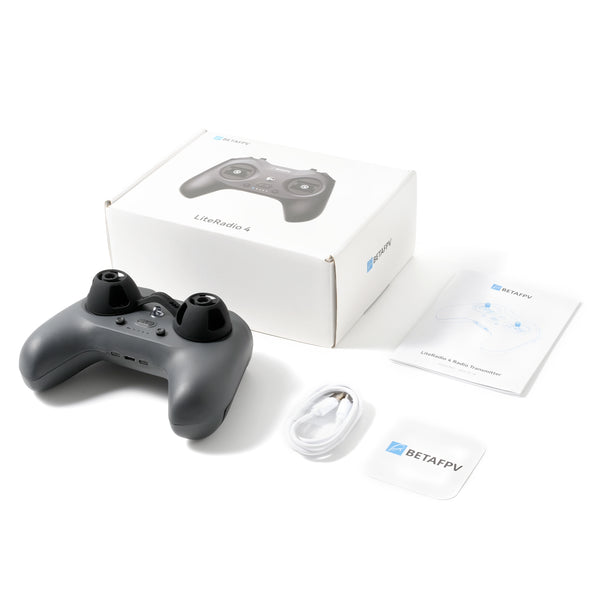

Package

• 1 * LiteRadio 4 Radio Transmitter (Twilight Limited Edition)
• 1 * Gimbal Protector
• 1 * User Manual
• 1 * USB Type-C Cable

• 1 * LiteRadio 4 Radio Transmitter (Standard Edition)
• 1 * Gimbal Protector
• 1 * User Manual
• 1 * USB Type-C Cable
