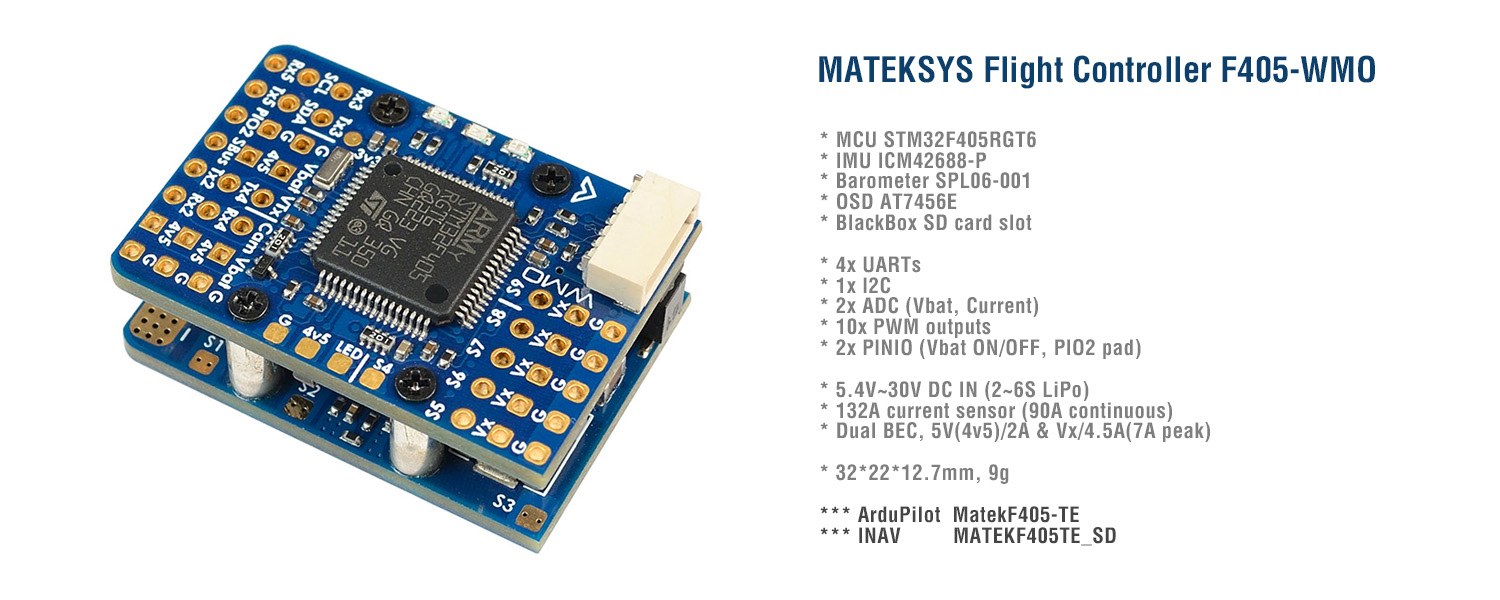

Полётный контроллер Matek F405-WMO

Полётный контроллер F405-WMO (STM32F405RGT6, ICM42688P, SPL06, OSD, SD slor, 4xUARTs, 9x PWM,1xI2C, 2xADC) - это вычислительный модуль для управления беспилотными летательными аппаратами (самолёты, летающие крылья, планеры).

Характеристики:

• MCU: STM32F405RGT6, 168MHz , 1MB Flash
• IMU: ICM42688-P
• Baro: SPL06-001
• OSD: AT7456E
• Blackbox: SD card slot
• 4x UARTs
• 10x PWM outputs
• 1x I2C
• 2x ADC (VBAT, Current)
• 1x spare PINIO
• Vbat output ON/OFF control
• USB/Beep Extender with Type-C(USB2.0)
• Built in inverter on UART2-RX for SBUS input

Power

• 5.4~30V DC IN (2~6S LiPo)
• 132A Current Sense (INAV Scale 250, ArduPilot 40A/V)
• PDB/Current sense resistor: 90A continuous, 132A burst.
• BEC 5V(4v5) 2A for FC & Peripherals
• BEC Vx 4.5A cont.(7A peak) for servos, 5V/ 6V option
• Filtered Vbat for VTX and camera
• LDO 3.3V 200mA
• Battery Voltage Sensor: 1k:20k

FC Firmware

• ArduPilot: MatekF405-TE
• INAV: MATEKF405TE_SD

Physical

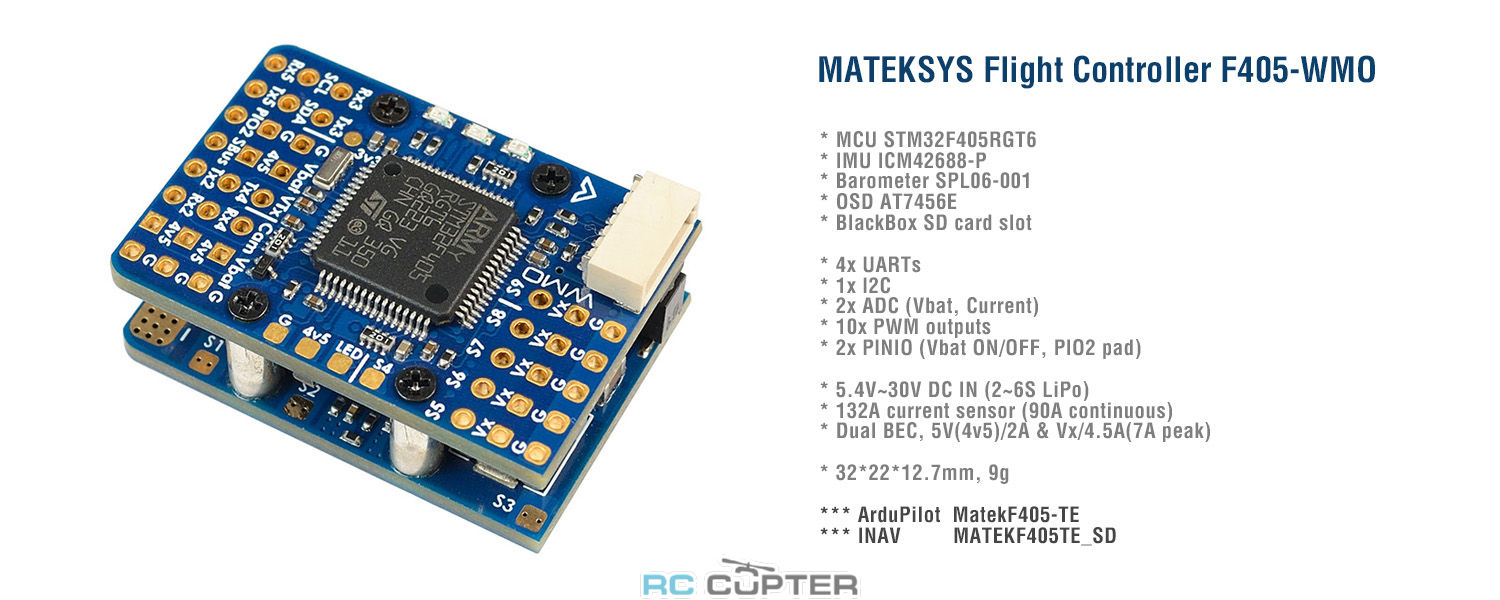

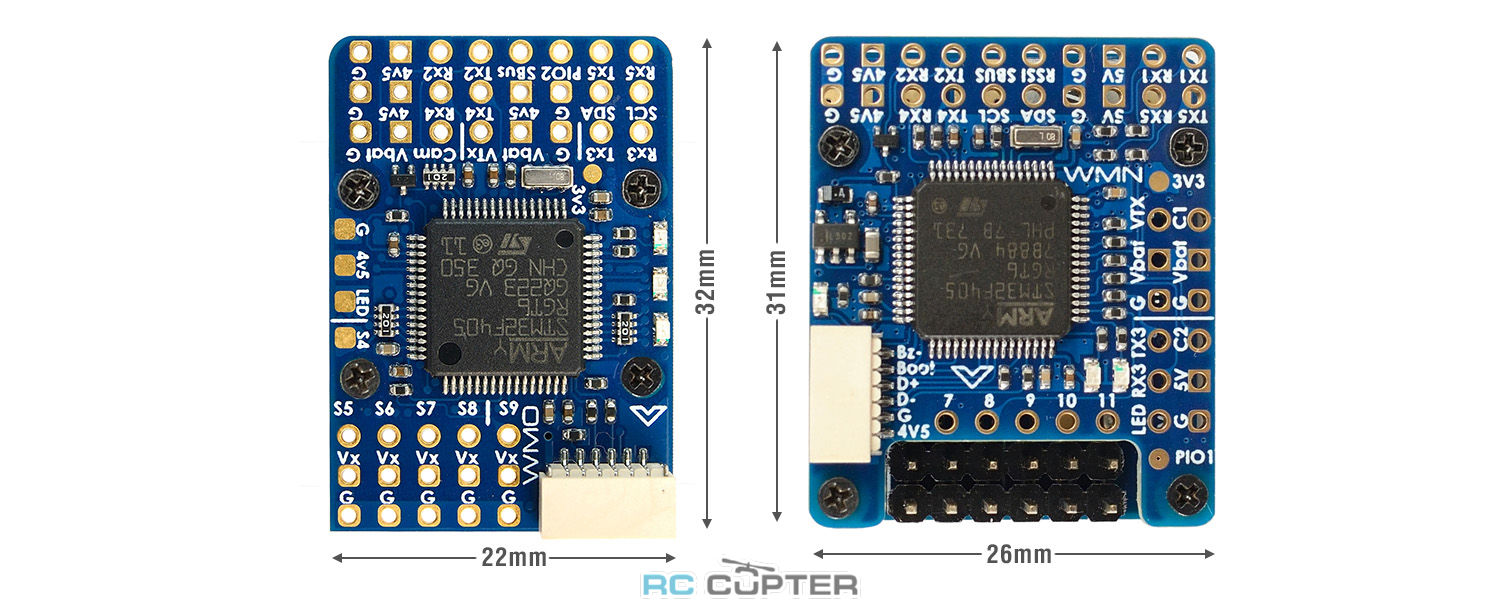

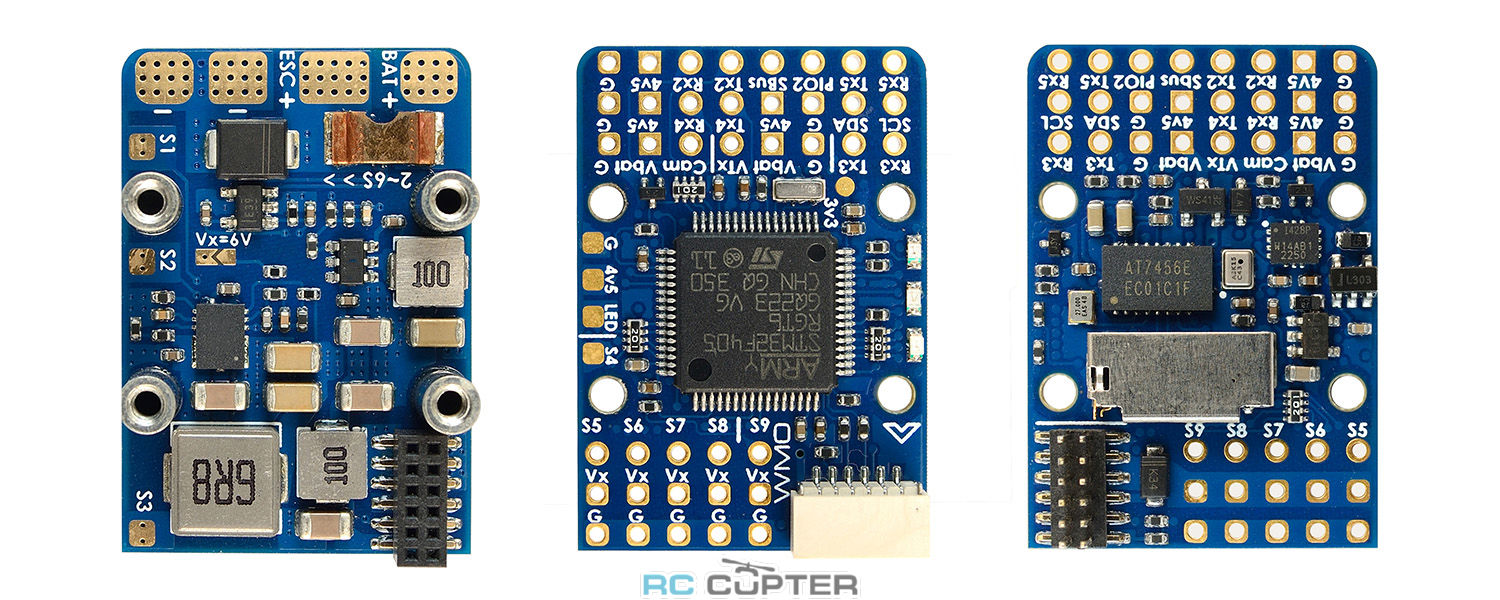

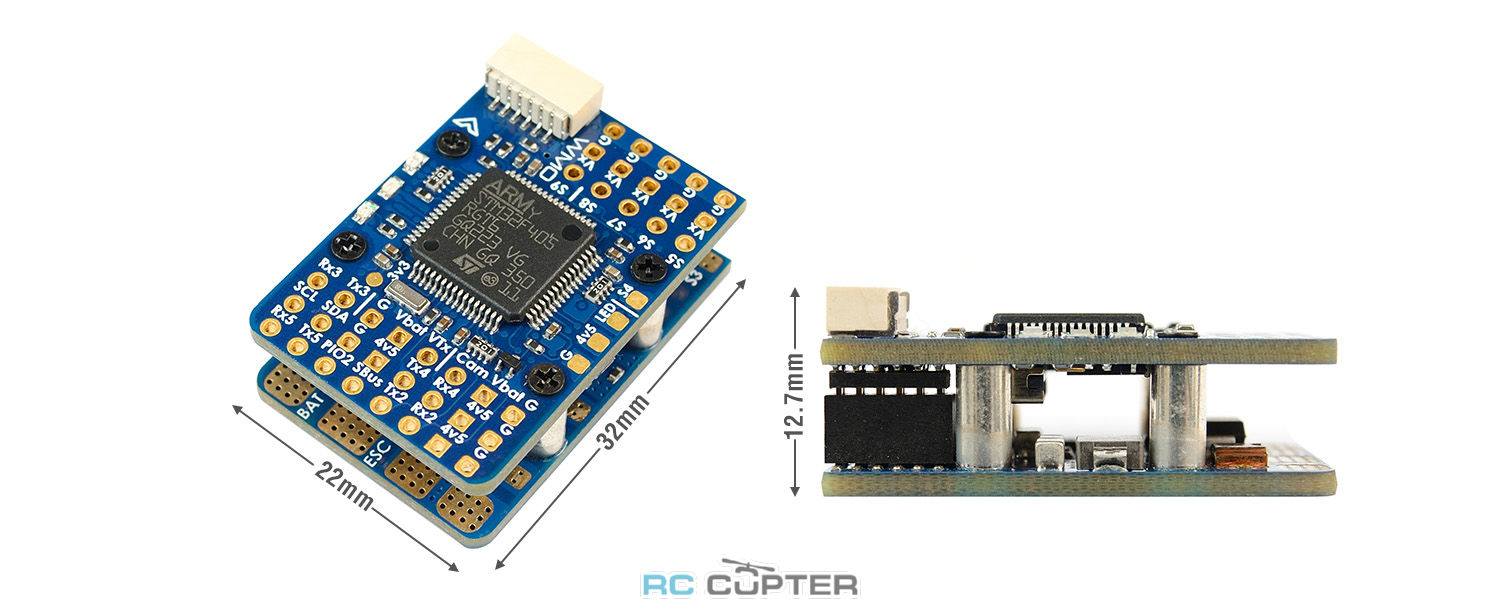

• Dimensions: 32 x 22 x 12.7 mm
• Weight: 9g

Комплектация:

• 1x F405-WMO
• 1x USB(Type-C)/Beep (Passive buzzer) Extender + 20cm JST-SH-6P cable for USB extender.
• Dupont 2.54 pins  (Board is shipped unsoldered)

Ссылки:

• F405-WMO Quick Start Guide  PDF

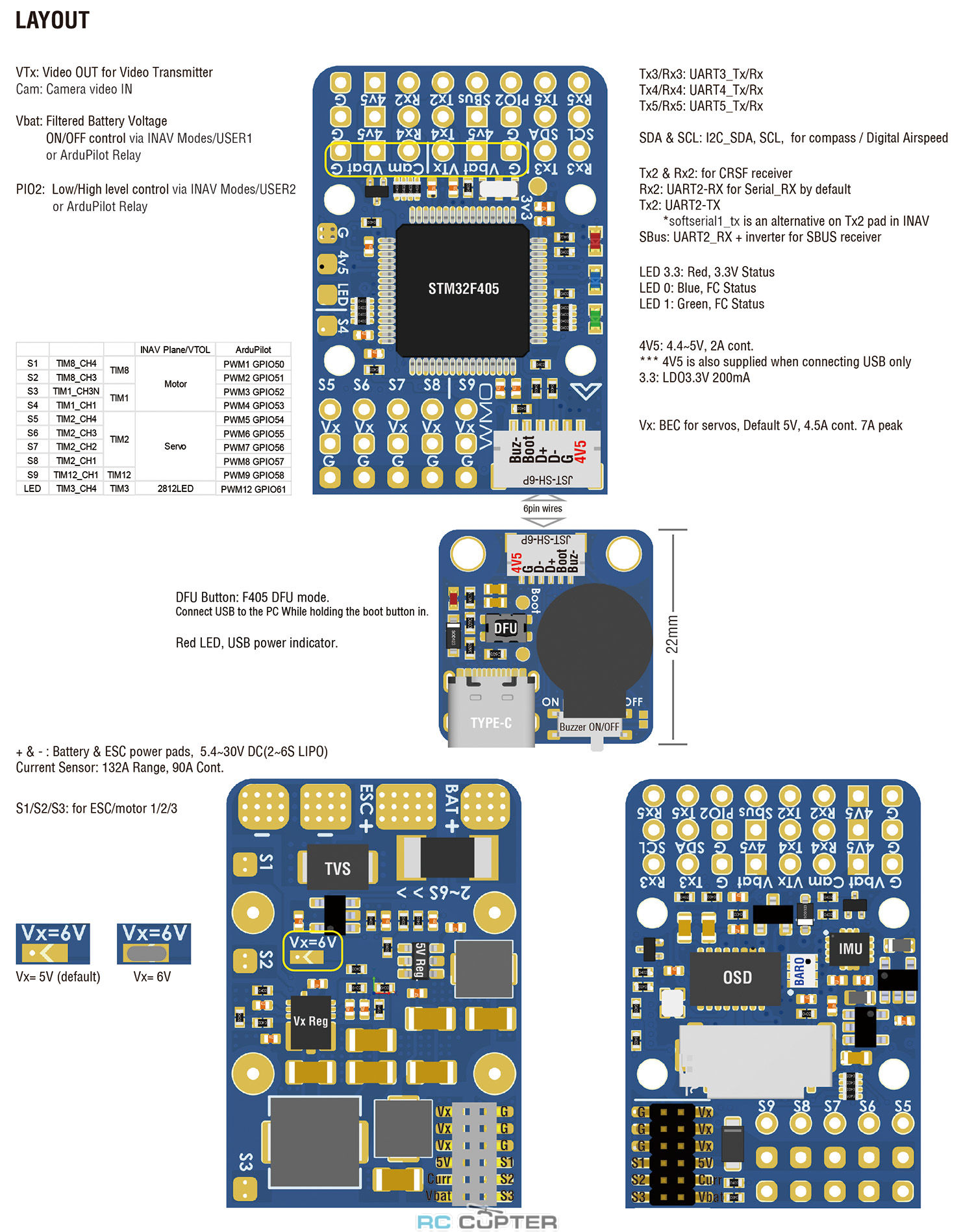

Layout (распиновка)

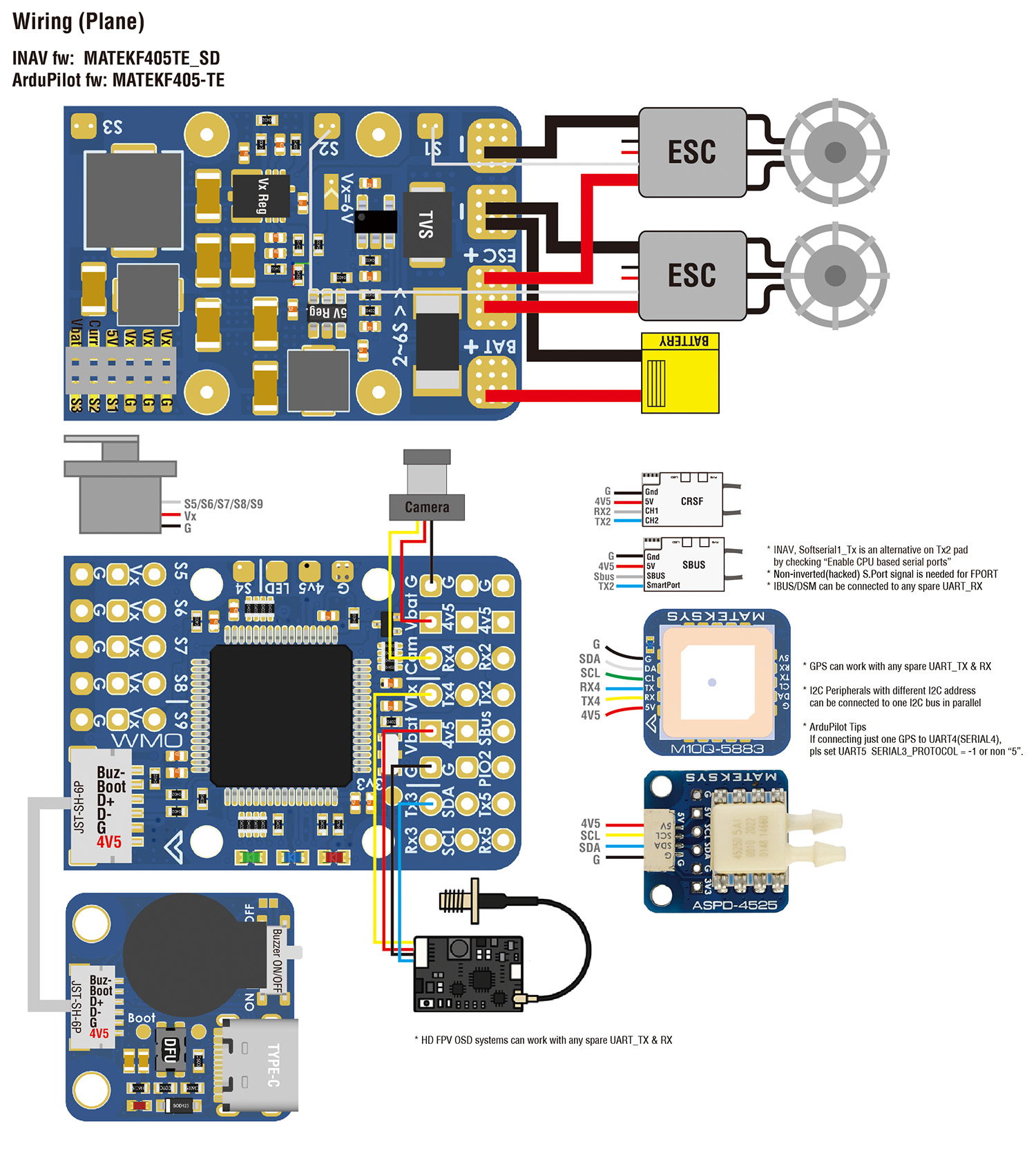

Wiring (подключение)

INAV mapping

ArduPilot mapping

• ***  If connecting just one GPS to UART4(TX4/RX4),  pls set  SERIAL3_PROTOCOL = -1 or non “5”.   otherwise ArduPilot will stop searching for GPS during bootup if not found on the first port(SERIAL3/UART5) configured for GPS protocol.

SD card logging

• set LOG_BACKEND_TYPE = 1 (File)

Frsky Smartport Telemetry

• non-inverted (hacked) S.Port signal

• any spare Uart_TX
• SERIALx_BAUD   57
• SERIALx_OPTIONS  7
• SERIALx_PROTOCOL  4  or 10(for yaapu)

Relay(PINIO)

• PINIO1,  Vbat output ON/OFF, ON by default
• PINIO2,  PIO2 pad output Low/High Level,  Low Level by default

# GPIOs

• PA4  PINIO1  OUTPUT  GPIO(81)  LOW
• PB5  PINIO2  OUTPUT  GPIO(82)  LOW

# RCx_OPTION: RC input option

• 28   Relay1 On/Off
• 34   Relay2 On/Off

e.g.

• RELAY1_FUNCTION  1
• RELAY1_PIN       81
• RC7_OPTION   28    //Use CH7 of Transmitter to control Vbat output ON/OFF
• RELAY2_FUNCTION  1
• RELAY_PIN2     82    //PIO2 pad
• RC8_OPTION   34    //Use CH8 of Transmitter to control PIO2 Low/High Level

The configured feature will be triggered when the auxiliary switch’s pwm value becomes higher than 1800. It will be deactivated when the value falls below 1200.

Check the pwm value sent from the transmitter when the switch is high and low using the Mission Planner’s Initial Setup >> Mandatory Hardware >> Radio Calibration screen. If it does not climb higher than 1800 or lower than 1200, it is best to adjust the servo end points in the transmitter.

Отличия от версии F405-WMN

Обновление:

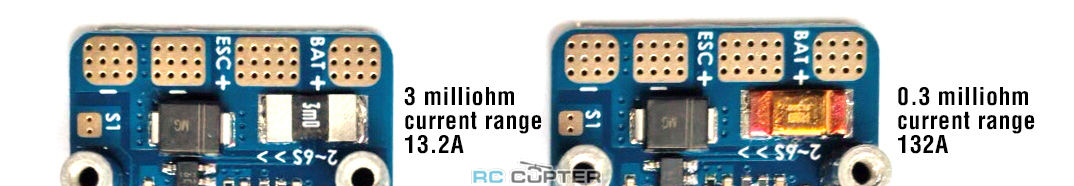

• Due to incorrect components of the shunt resistor were placed during the SMT process. The current sensor range of the F405-WMO has been changed to 13.2A (scale 2500). If the shunt resistor on your F405-WMO PDB is marked “3m0″(3 mΩ), please contact the dealer you originally purchased from to get a new PDB. We will gradually send out the new PDBs to resellers.
• The PDB equipped with 3 mΩ(mark 3m0) resistor can still be used on low-current(<15A) aircraft, with more accurate current measurement performance.
• Dec.22, 2025
