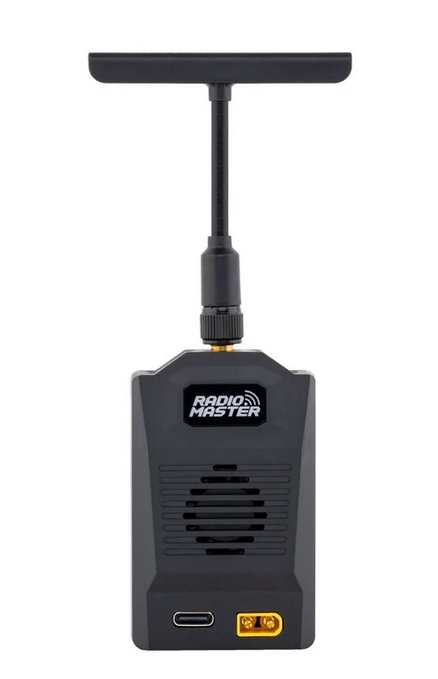

Передающий модуль Radiomaster Ranger Nano 2.4GHZ ELRS

Want to experience the efficiency, stability, and low-latency link of the ExpressLRS protocol without purchasing a new radio? RadioMaster has you covered!

Featuring F-1000Hz refresh rates and a high-efficiency cooling system, the Ranger Nano 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (RadioMaster Zorro and more) to enjoy all that ELRS has to offer.

The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.

*Note: The Ranger Nano 2.4GHz ELRS Module fits Nano module bays, for JR style/Micro connectors, please consider the Ranger and the Ranger Micro modules. For more information on the Ranger series, please click here.

Features

• Built-in ExpressLRS Backpack
• High-efficiency cooling system
• Wifi and Bluetooth support
• Packet rates up to F-1000Hz
• T-antenna included
• With the Nano connector, support Zorro radio

Specification

• Item: Ranger Nano Module
• Regulatory Domain: ISM2400
• MCU: ESP32(main), ESP8285(aux,as ESP backpack)
• RF chip: SX1281IMLTRT
• Frequency Range: 2400 MHz - 2480 MHz
• Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
• Minimum receiver refresh rate: 25Hz
• Wifi Support: Yes
• Bluetooth support: Yes
• XT30 Power supply voltage: DC 6V - 16.8V
• Weight: 48g (with antenna) / 39g (without antenna)
• Dimension: 136*42*26mm (with T antenna) / 74*42*26mm (without antenna)

Size

Ranger Series

We wish to thank the ExpressLRS team for their support and testing during the development of the Ranger series. To learn more and support the ExpressLRS project visit https://www.expresslrs.org/

• Ranger 2.4GHz ELRS Module
• Ranger Micro 2.4GHZ ELRS Module
• Ranger Nano 2.4GHZ ELRS Module
• 2.4GHz T Antenna
• 2.4GHz Moxon Antenna

Download

• Ranger Nano User Manual
