Камера SIYI ZT6 Mini Dual-Sensor Optical Pod с тепловизором 640p, трехосевой подвес, 4К, 6x цифровой зум
под заказ, пишите
- Описание
- Характеристики
- Сопутствующие товары
- Аналоги
- Отзывы (0)

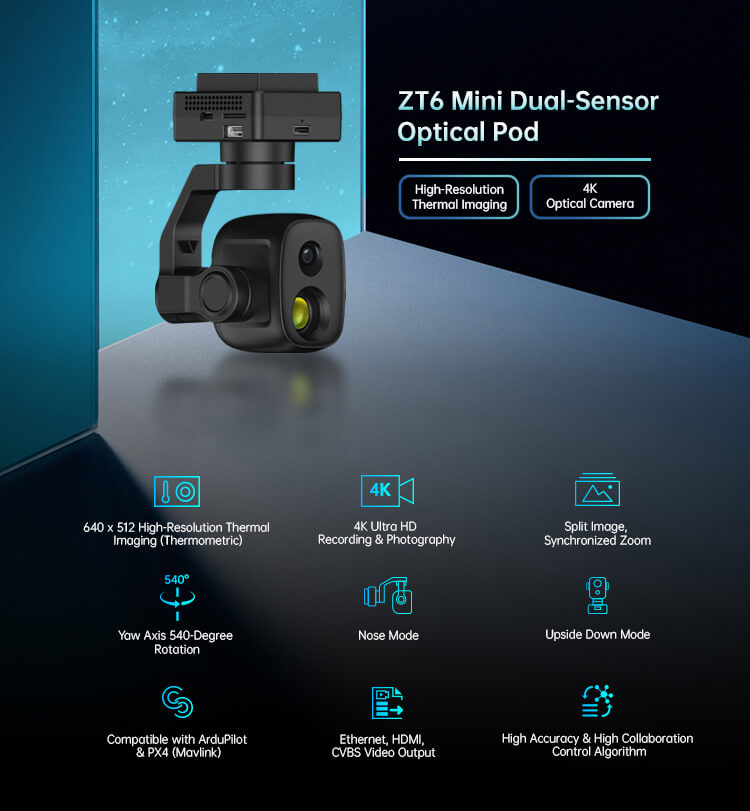

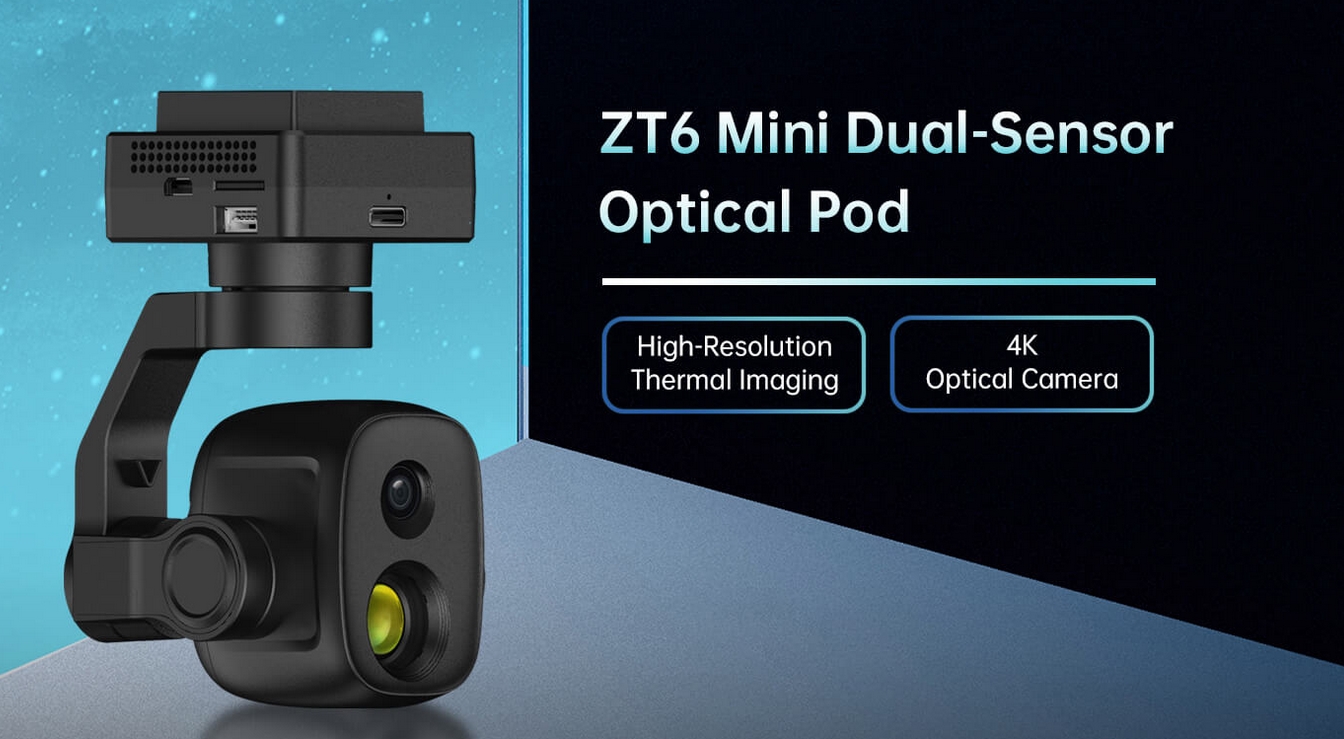

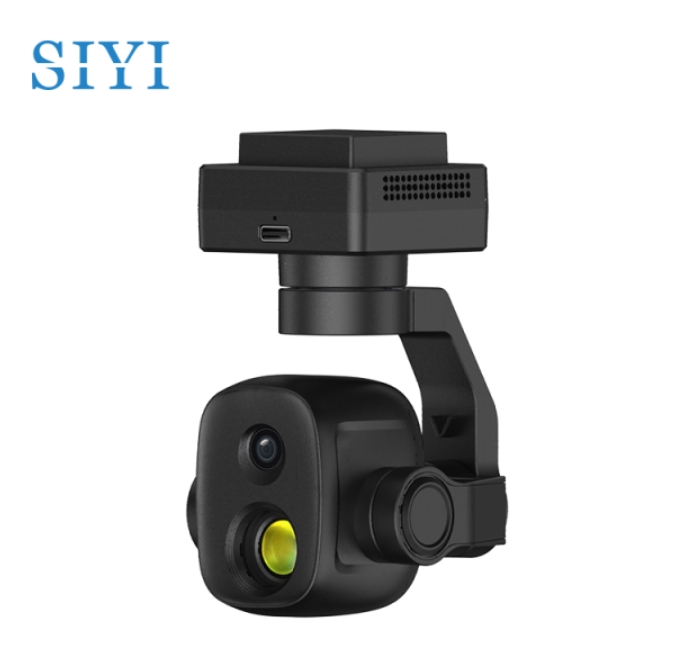

SIYI ZT6 Mini Optical Pod Dual Sensors 4K 8MP 6X Digital Zoom Gimbal Camera 640 x 512 Thermal Imaging Temperature Measuring 3-Axis Stabilizer ArduPilot PX4 Mavlink Compatible UAV UGV USV Pod Payload for Drone Surveillance Inspection
- 640 x 512 High-Resolution Thermal Imaging (Temperature Measuring)
- 4K Ultra HD Recording & Photography
- Split Image, Synchronized Zoom
- Yaw Axis 540-Degree Rotation
- Nose Mode
- Upside Down Mode
- Compatible with ArduPilot & PX4 (Mavlink)
- Ethernet, HDMI, CVBS Video Output
- High Accuracy & High Collaboration Control Algorithm
| Video Output Port |
Ethernet / CVBS Micro-HDMI |
| Control Signal Input Port |
S.Bus UART Ethernet UDP / TCP |
| Control Signal Output Port |
S.Bus |
| High Accuracy 3 Axis Stabilization |
Yaw Pitch Roll |
| Working Voltage |
11 ~ 25.2 V |
| Power Consumption |
Average 6.5 W Summit 15 W |
| Waterproof Level |
IP53 |
| Working Temperature |
-10 ~ 50 ℃ |
| Dimension |
73.5 x 75 x 131.5 mm |
| Weight |
Excluding Anti-Vibration Board: 177 g Including Anti-Vibration Board: 197 g |
| Angular Vibration Range |
±0.01° |
| Controllable Pitch Angle |
-90° ~ +25° |
| Controllable Yaw Angle |
-270° ~ +270° |
| Rotatable Roll Angle |
-45° ~ +45° |
| Lens |
Fixed Focal Length 6x Digital Zoom |
| Equivalent Focal Length |
20 mm |
| Image Sensor |
Sony 1/2.7 Inch CMOS 8 MP Effective Resolution |
| Aperture |
F2.8 |
| FOV |
Diagonal 93° Horizontal 84.5° |
| Video Recording Resolution |
4K (3840 x 2160) @ 30 fps 2K (2560 x 1440) @ 30 fps 1080p (1920 x 1080) @ 30 fps 720p (1280 x 720) @ 30 fps |
| Still Photo Resolution |
4K (3840 x 2160) |
| Thermal Sensor |
Uncooled VOx Microbolometer |
| Resolution |
640 x 512 |
| Zoom |
2X Digital |
| Lens |
Focal Length: 13 mm Aperture: F1.0 Fixed Focus Athermalization |
| Wavelength Range |
8 ~ 14 um |
| Temperature Measuring Range |
High Gain: -20 ~ +150℃ Low Gain: 50 ~ +550℃ |
| Temperature Measuring Accuracy |
±2℃ (-20 ~ +150℃) ±5℃ (50 ~ +550℃) |
| Temperature Measuring Mode |
Point Anywhere Measurement Full Image Measurement Selected Box Measurement |
| Video Storage Bitrate |
15 Mbps (H.265 Codec) |
| File Storage Format |
FAT32 ExFAT |
| Image Format |
JPG |
| Video Format |
MP4 |
| Supported MicroSD Cards |
MicroSD Class10, Max 256 GB |
| Still Photography Mode |
Single |
| White Balance |
Auto |
Комплектация:
- Камера SIYI ZT6 Mini Dual-Sensor Optical Pod с тепловизором 640p, трехосевой подвес, 4К, 6x цифровой зум - 1 шт
| Вес: | 197 г |
| Для камеры: | SIYI |
| Количество осей: | 3 |
| Производитель: | SIYI |
| Протокол связи в микроконтроллерах и периферии: | Ethernet UDP/TCP , S.Bus , UART |
| Рабочее напряжение: | 11-25.2 В |
| Разрешение: | 720P , 1080p , 2K , 4К |
| Разъём: | Ethernet , micro HDMI , Micro SD |
| Угол обзора (FOV): | 93° , 84.5° |
| Zoom: | 6x цифровой |
