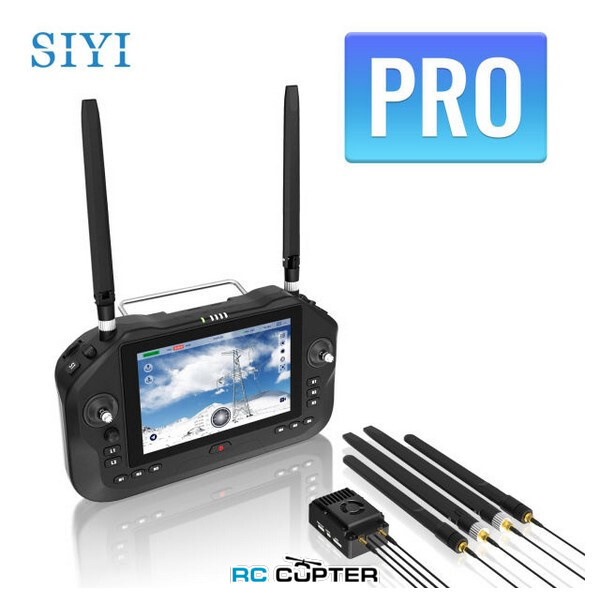

Аппаратура управления SIYI UniRC 7 Pro (2.4 & 5 GHz) Цифровая передача изображения
под заказ, пишите
- Описание
- Характеристики
- Отзывы (0)

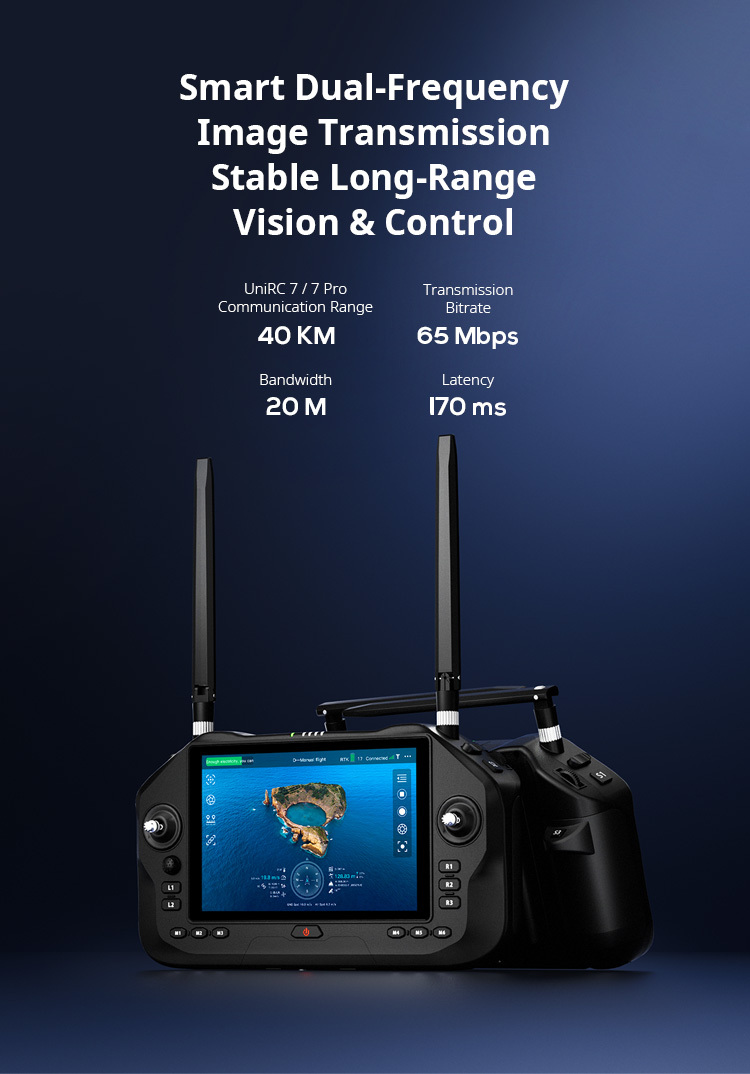

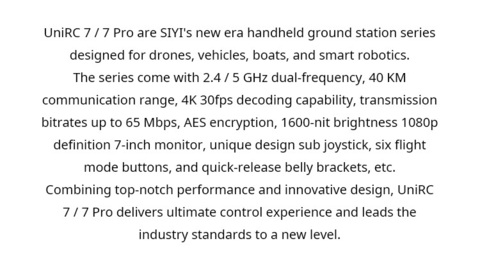

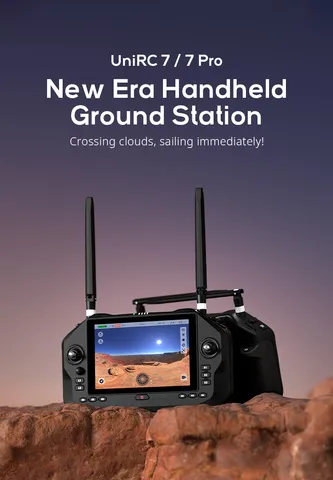

SIYI 7 Pro двухчастотная (Dual) 2,4 и 5 ГГц портативная наземная станция (Handheld Ground Station) дальностью 40 км.
Интеллектуальный контроллер с 7-дюймовым 1080P сенсорным экраном высокой яркости с передачей цифрового изображения 4K.
4G RAM 64G ROM Android 13 OS AES шифрования для БПЛА (UAV), UGV, USV.

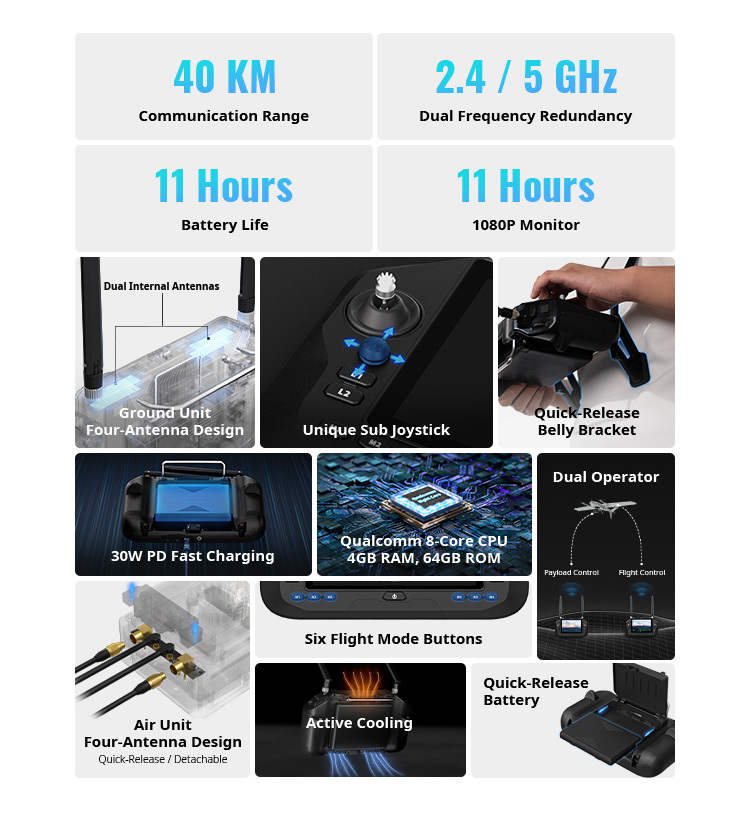

- 2.4 / 5 GHz Dual Frequency Redundancy
- 40 KM Communication Range

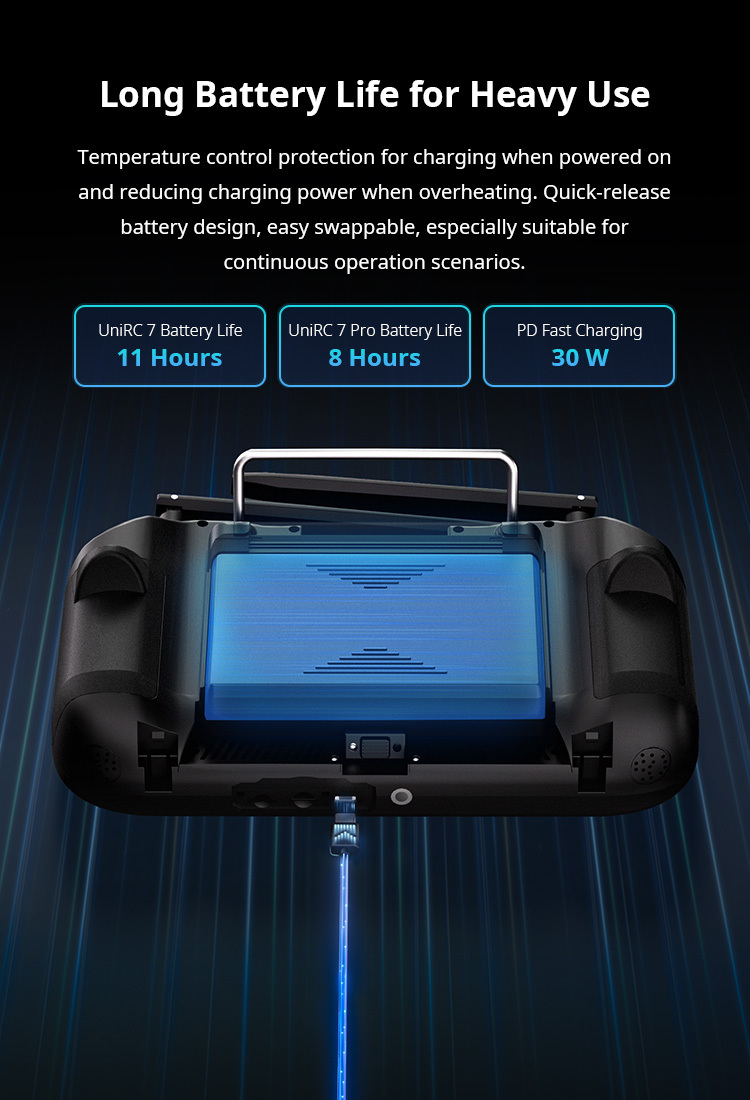

- 11 Hours Battery Life

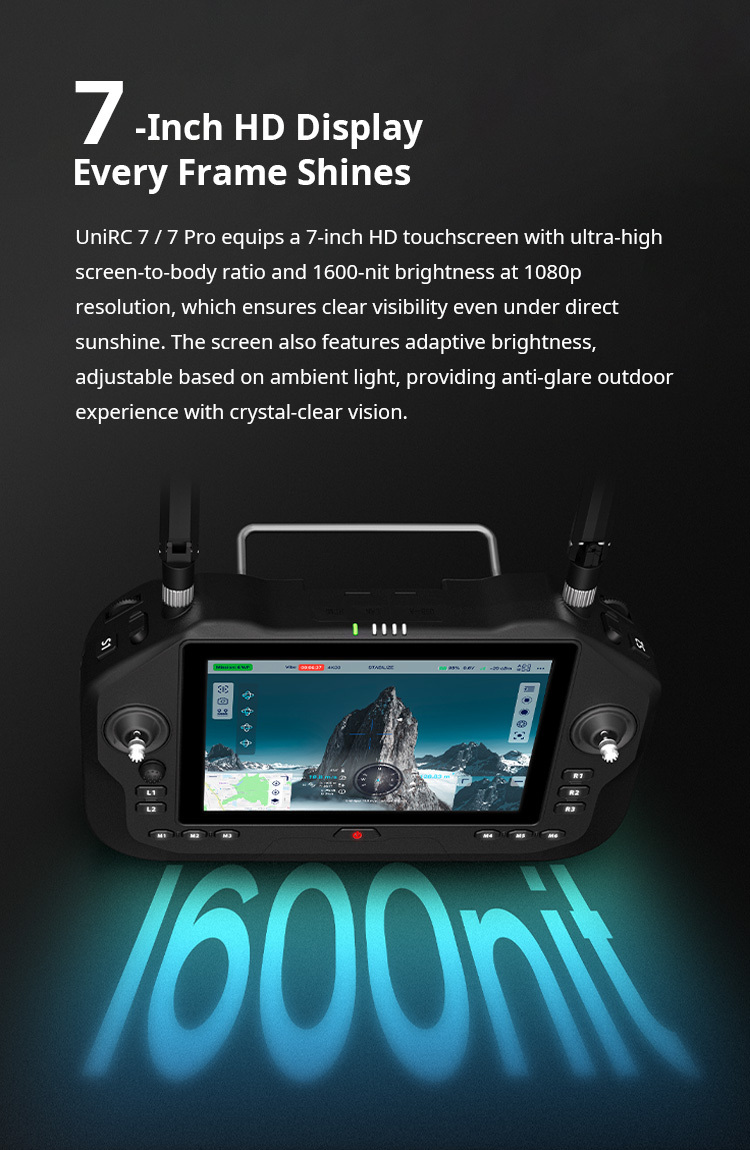

- 7-Inch 1080P Monitor

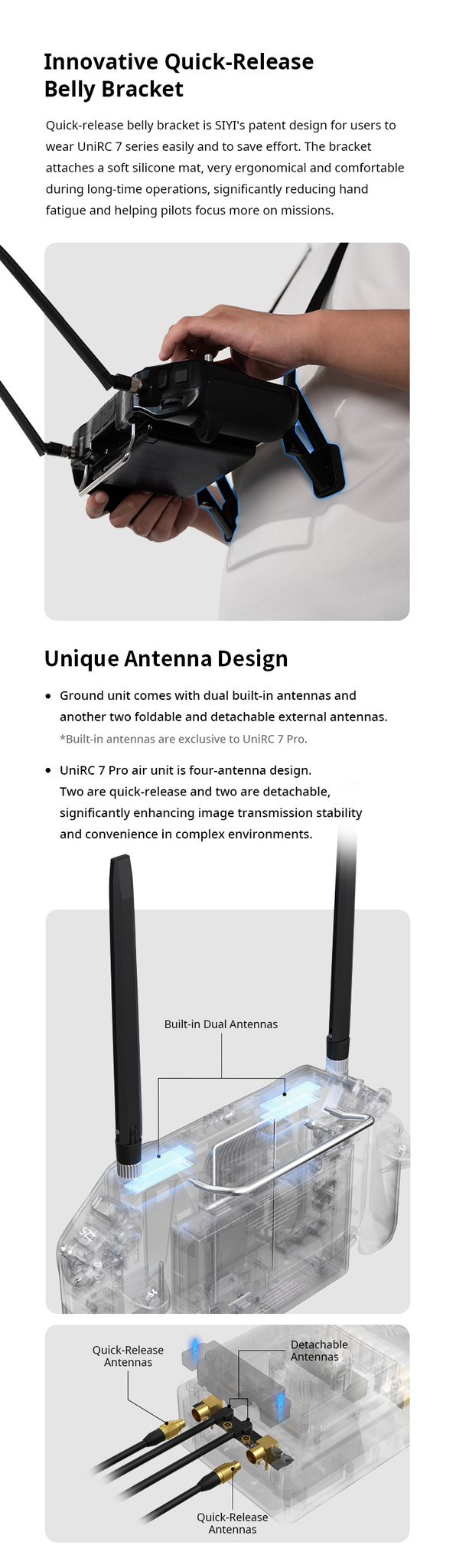

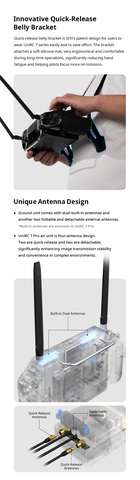

- Ground Unit Four-Antenna Design Dual Internal Antennas

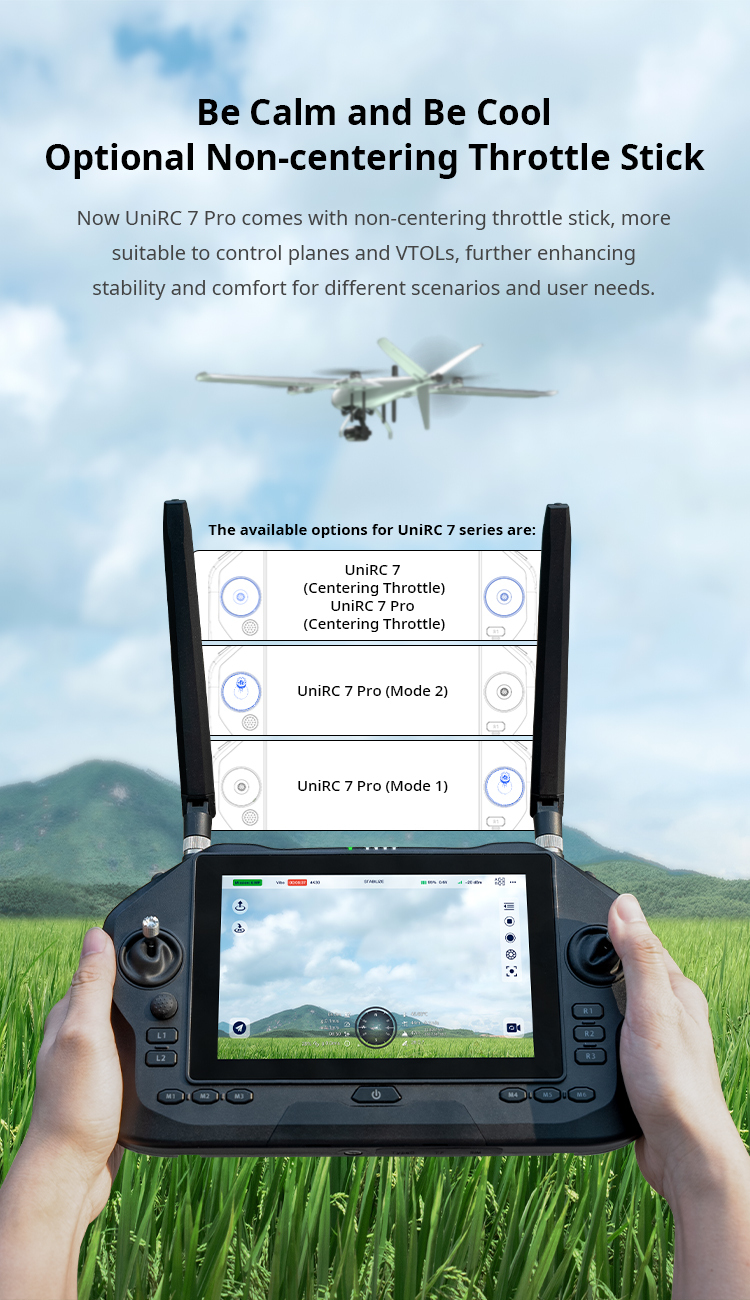

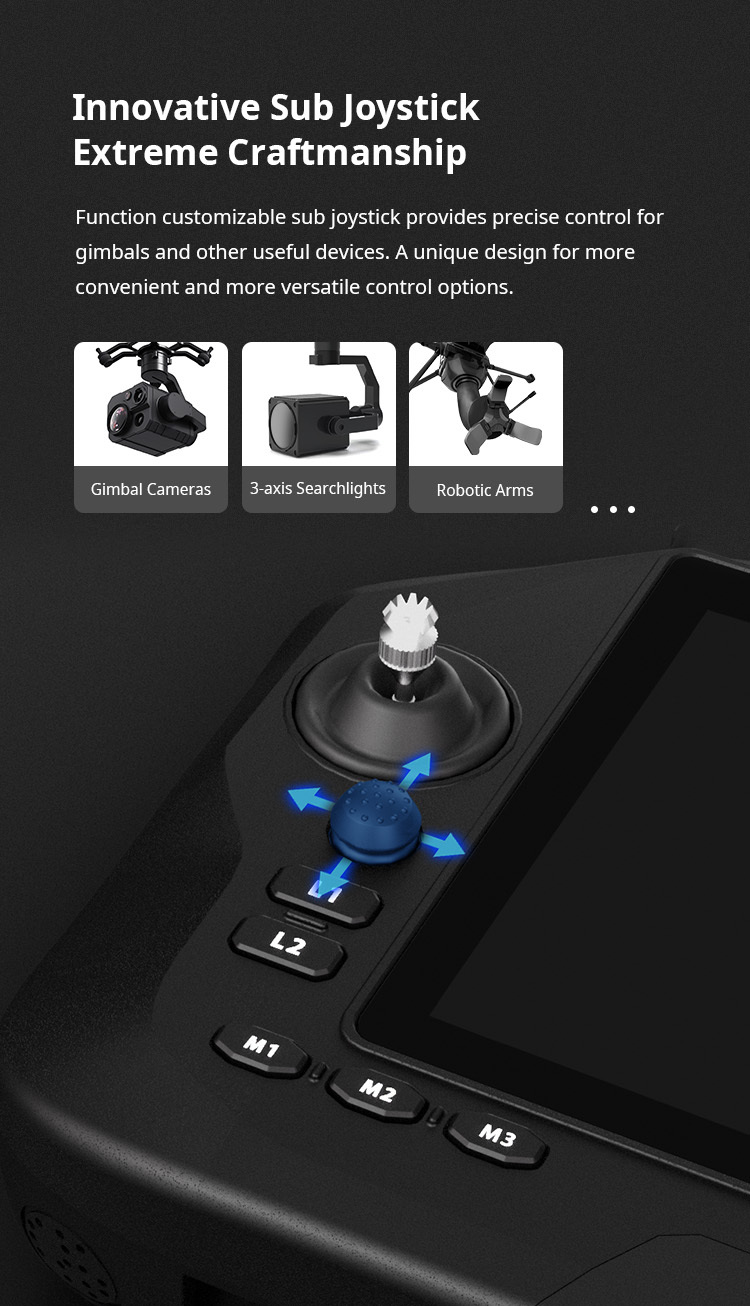

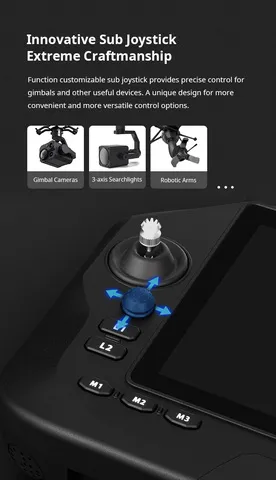

- Unique Sub Joystick
- Quick-Release Belly Bracket

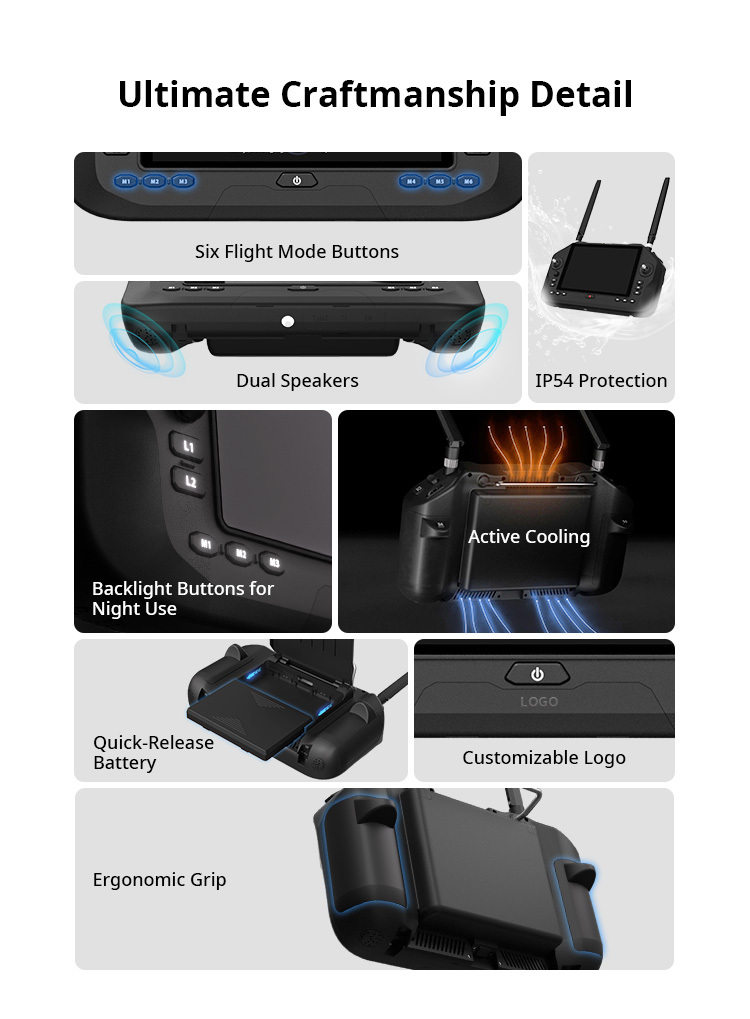

- Active Cooling

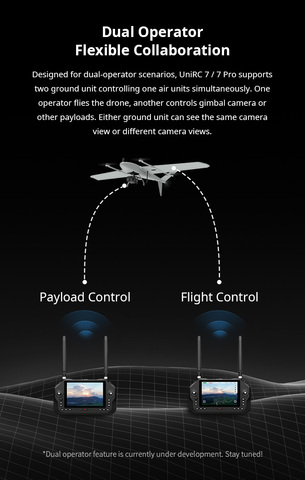

- Dual Operator
- Payload Control
- Flight Control
- 30W PD Fast Charging
- Qualcomm 8-Core CPU 4GB RAM, 64GB ROM
- Six Flight Mode Buttons
- Air Unit Four-Antenna Design
- Quick-Release, Detachable
- Quick-Release Battery
| Maximum Effective Signal Range |
Agriculture Spraying Altitude (3 to 6 m):3 to 6 km Rural Area Flight Altitude (120 m), Few Obstruction & Medium Interference:10 to 15 km Above Sea Flight Altitude (150 m), No Obstruction & Low Interference:30 to 40 km |
| Working Frequency |
UniRC 7 Pro: 2.400 GHz - 2.476 GHz UniRC 7: 2.400 GHz - 2.476 GHz |
| Physical Channels |
10 x Custom Buttons 6 x Flight Mode Buttons 2 x Main Joysticks 1 x Sub Joystick 2 x Dials 2 x 3-Stage Switches |
| Monitor |
7-inch 1080p 1600-nit High Definition and High Brightness LCD Touchscreen UniRC 7 Pro: 1920×1200 UniRC 7: 1280×800 |
| Operating System |
Android 13 |
| Android Hardware |
4GB RAM+ 64GB ROM |
| Wi-Fi |
Wi-Fi 5 |
| Bluetooth |
BT 5.0 |
| GNSS |
GPS/GLONASS/BeiDou/Galileo/QZSS |
| Battery Life |
UniRC 7 Pro: Approx 8 hours UniRC 7: Approx11 hours |
| Battery Capacity |
13400mAh |
| Charging Protocol |
PD 30W |
| Charging Time |
Approx 4.5 hours |
| Datalink/SDK Port |
UART/UDP、Bluetooth、Type-C |

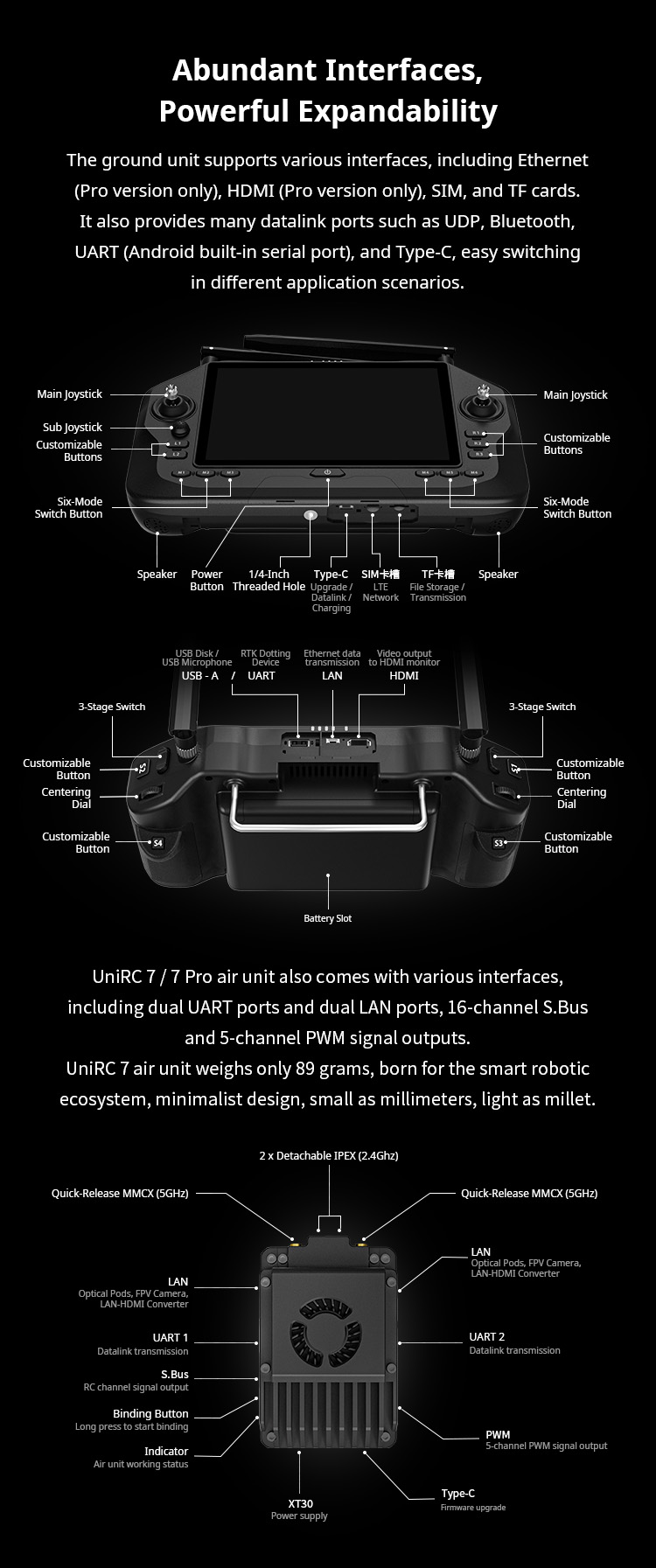

| Interfaces |
UniRC 7 Pro: External Device (Mouse, USB Disk, USB Microphone): USB-A Serial Port (for RTK Dotting Module): USB-A File Transfer: USB-A Video Output: Standard HDMI Network Communication: LAN (GH1.25 4-Pin) UniRC 7: Serial Port (for RTK Dotting Module): USB-A Charging: Type-C Firmware Upgrade: Type-C File Transfer: Type-C Mobile Network: SIM Card Slot External Storage: TF Card Slot / USB-A Tripod Mount: 1/4-inch Standard Screw Hole |
| Antennas |
UniRC 7 Pro: 2 x Internal (5 GHz)+2 x External (2.4 GHz) UniRC 7: 2 x External (2.4 GHz) |
| Protection Class |
IP54 |
| Dimensions |
L274 * W190 * H100 mm |
| Weight |
UniRC 7 Pro: 1.46KG UniRC 7: 1.44KG |
| RC Signal Output |
16-channel S.Bus 5-channel PWM |
| Interfaces |
RC Signal Output: S.Bus (GH1.25 2-Pin) RC Signal Output: PWM 1 to 5 (GH1.25 6-Pin) Datalink: 2 x UART (GH1.25 3-Pin) Video & Data: 2 x LAN (GH1.25 8-Pin) Power Supply: XT30 Firmware Upgrade: Type-C |
| Antennas |
UniRC 7 Pro: 2 x Quick-Release MMCX (5 GHz) 2 x Detachable IPEX (2.4 GHz) UniRC 7: 2 x Detachable IPEX (2.4 GHz) |
| Working Voltage |
7 to 76 V |
| Dimensions (antenna excluded) |
UniRC 7 Pro: L63 * W40 * H27 mm UniRC 7: L57 * W40 * H28 mm |
| Weight (antenna excluded) |
UniRC 7 Pro: 115g UniRC 7: 90g |
| Average Power Consumption |
UniRC 7 Pro: 8W UniRC 7: 6W |
| Производитель: | SIYI |
