GPS модуль Matek M9N-G4-3100 GNSS DRONECAN AP_PERIPH

Note

• No barometer integrated.

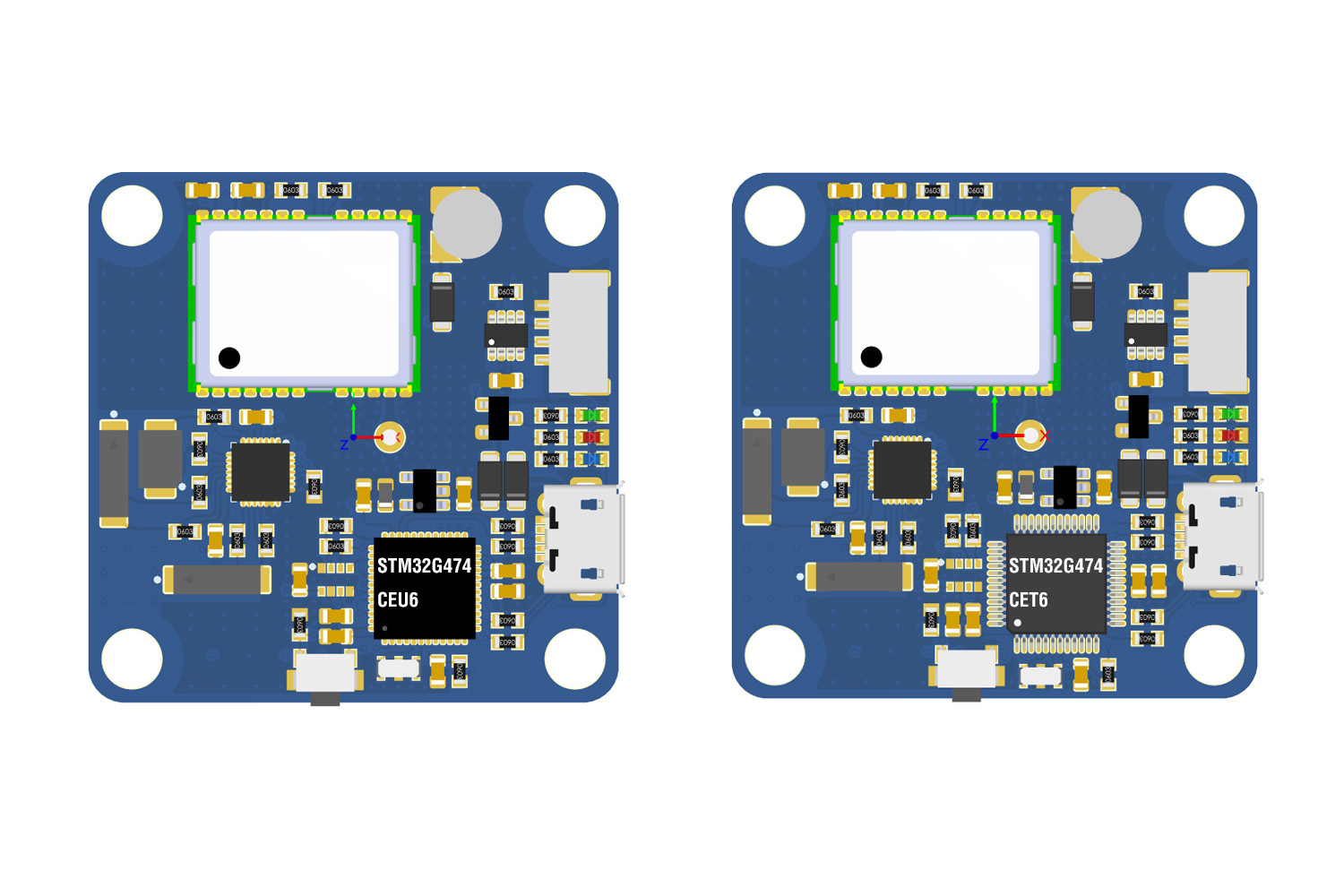

• Depending on the components supply, we are using STM32G474CEU6 (UFQFPN48) or STM32G474CET6 (LQFP48) as CAN Node MCU in different batches of M9N-G4-3100. MCU performance is the same in both packages.

Характеристики

• M9N-G4-3100 is based on ArudPilots’ AP_Periph firmware,  It is a GNSS+COMPASS peripheral with CAN/DroneCAN and UART/MSP interfaces.
• M9N-G4-3100 uses multi-constellation GNSS powered by M9 series , It is a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently.
• M9N-G4-3100 integrates an industrial-grade compass PNI RM3100 which provides high resolution, low power consumption, no hysteresis, large dynamic range, and high sampling rates.
• G474 CAN node is compatible with CAN FD(5 Mbps) & CAN 2.0 (1 Mbps)

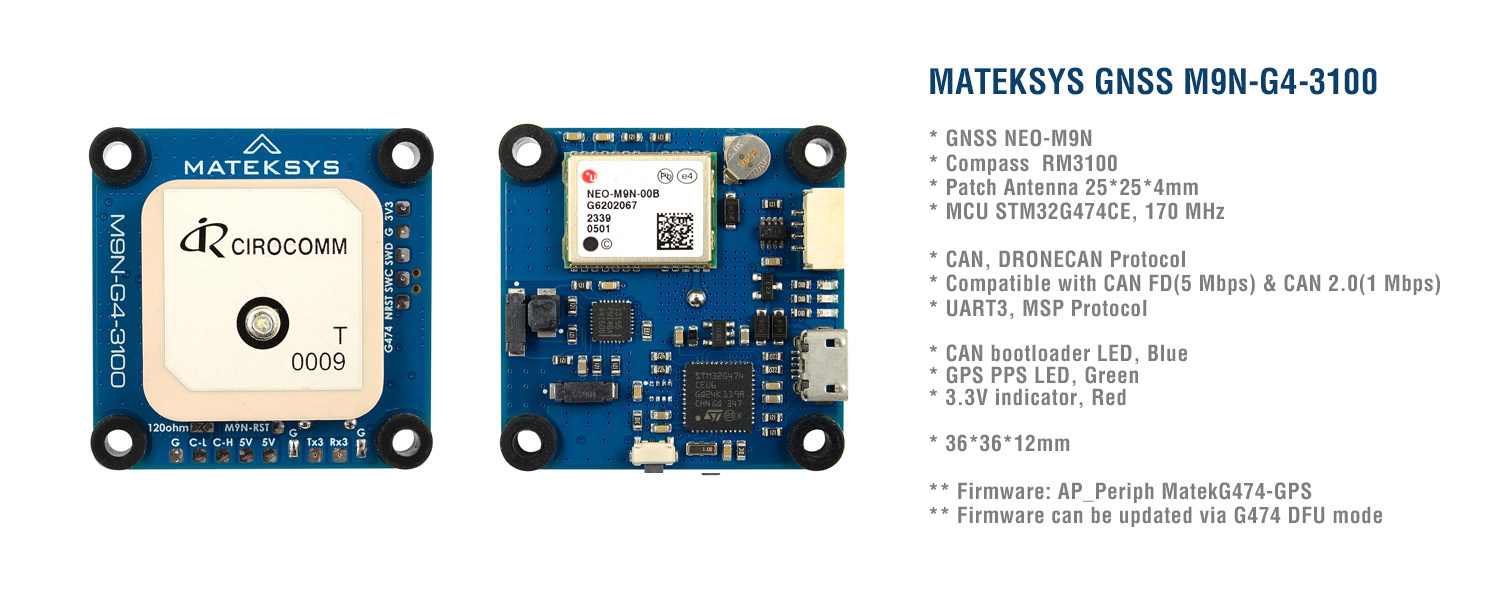

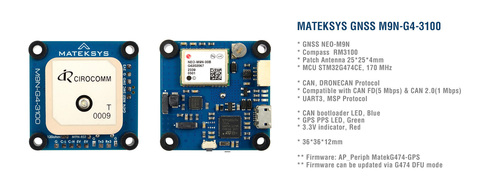

Specifications

• GNSS M9N series (GPS, GLONASS, Galileo and BeiDou)
• Magnetic Compass RM3100
• Patch GNSS Antenna 25*25*4mm
• MCU STMG474CE, 170MHz

• UART2, onboard M9N GNSS module
• UART3(TX3), MSP Protocol
• CAN, DroneCAN Protocol
• USB, for firmware update in G474 DFU mode

• CAN bootloader LED, Blue
  • Fast blinking,  Booting
  • Slow blinking, working
• GNSS PPS LED, Green
  • Green LED OFF after powering on
  • blinking(1Hz) when GNSS has 3D fixed
• 3.3V LED, Red

• Input voltage range: 4~6V (5V pad/pin)
• Power consumption: 100mA
• Operating Temperatures: -20~80 °C

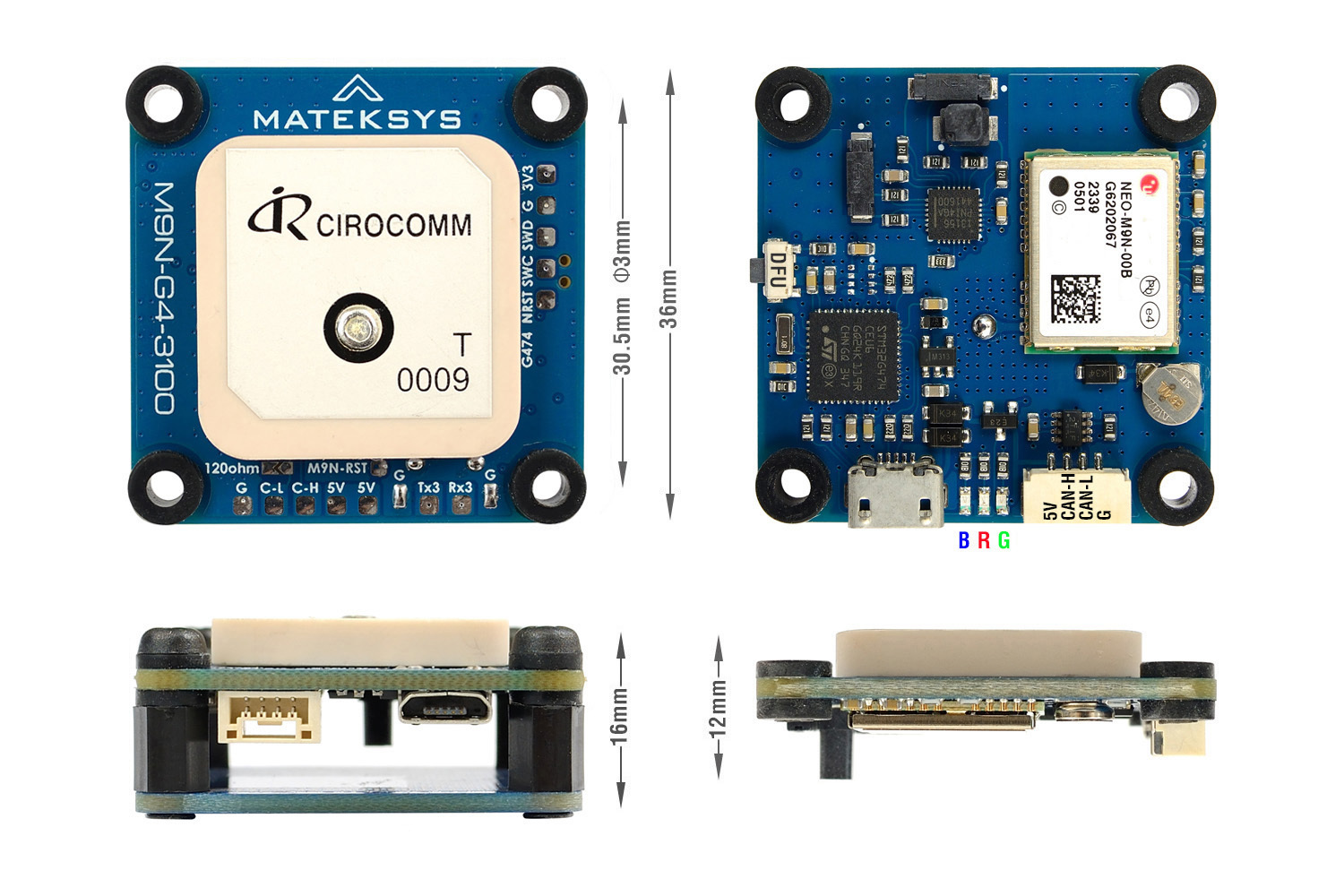

• 36mm*36mm*12mm
• 16g
• M9N-G4-3100_step.zip

Firmwares

• ArduPilot AP_Periph: MatekG474-GPS  or MatekG474-Periph
• Update via DroneCAN GUI Tool or Mission Planner–DroneCAN Tab, load AP_Periph.bin
• Update in G474 DFU mode via USB & STM32CubeProgrammer, load AP_Periph_with_bl.hex

Includes

• 1x M9N-G4-3100
• 1x JST-GH-4P to JST-GH-4P 20cm silicon wire
• Mounting base (1x PCB plate,  4x silicon grommets, 4x Nylon standoffs M3x7,  4x Nylon screws M3*8)

Tips and Notes

• on M9N-G4-3100, The 3 magnetic coils have little solder paste to avoid the excess to “tilt” them, resulting in some reading inaccuracies of the compass. Any strong impacts will definitely separate them, especially the “tall coil” Sen-Z-f.  Pls use this precision module with care.
• Start with ubx GNSS FW3.01, timepulse is aligned with UTC time and that time is set valid only after leap second is downloaded. That could take up to 12.5 min. Probably PPS LED will not blink immediately after GPS has 3D fixed.
• The M9N-G4-3100 provides the ability to reset the receiver. Bridging “M9N-RST” pad to Ground for at least 100 ms will trigger a cold start. RESET will delete all information and trigger a cold start. It should only be used as a recovery option.
• No barometer integrated.

DRONECAN and MSP parameters
