Цифровой датчик воздушной скорости ASPD-DLVR (CAN & I2C)
Характеристики:
- All sensors DLVR series is the best airspeed sensor ArduPilot currently support.
- ArduPilot AP_Periph L431/F405/F303 CAN node
- All sensors DLVR-L10D, Industrial temperature range

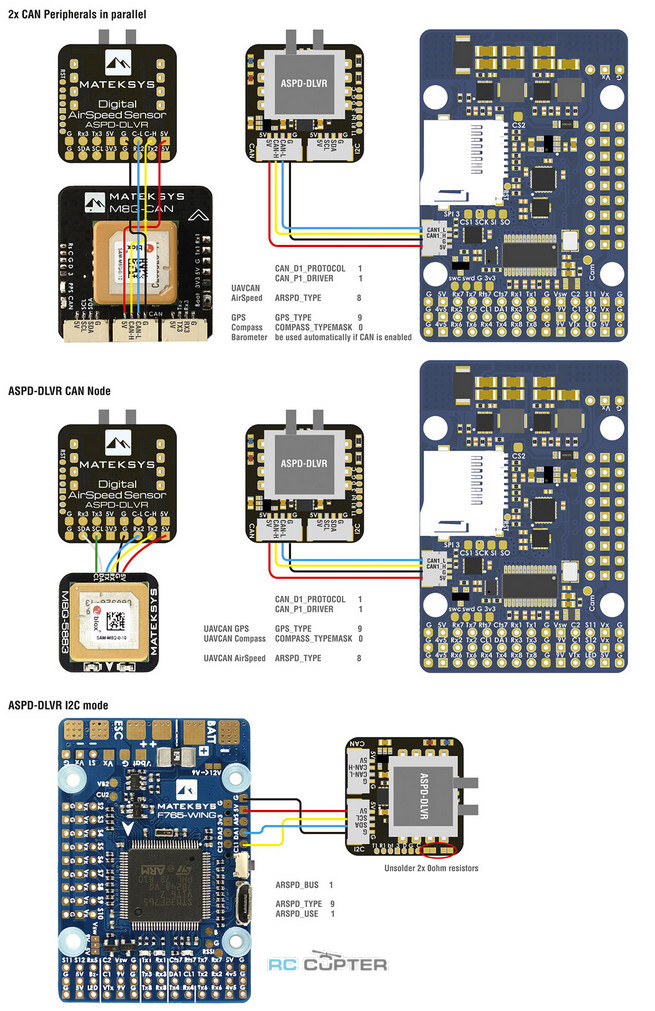

- CAN & I2C Interface
- Typical Platforms: Fixed-Wing, QuadPlane, VTOL

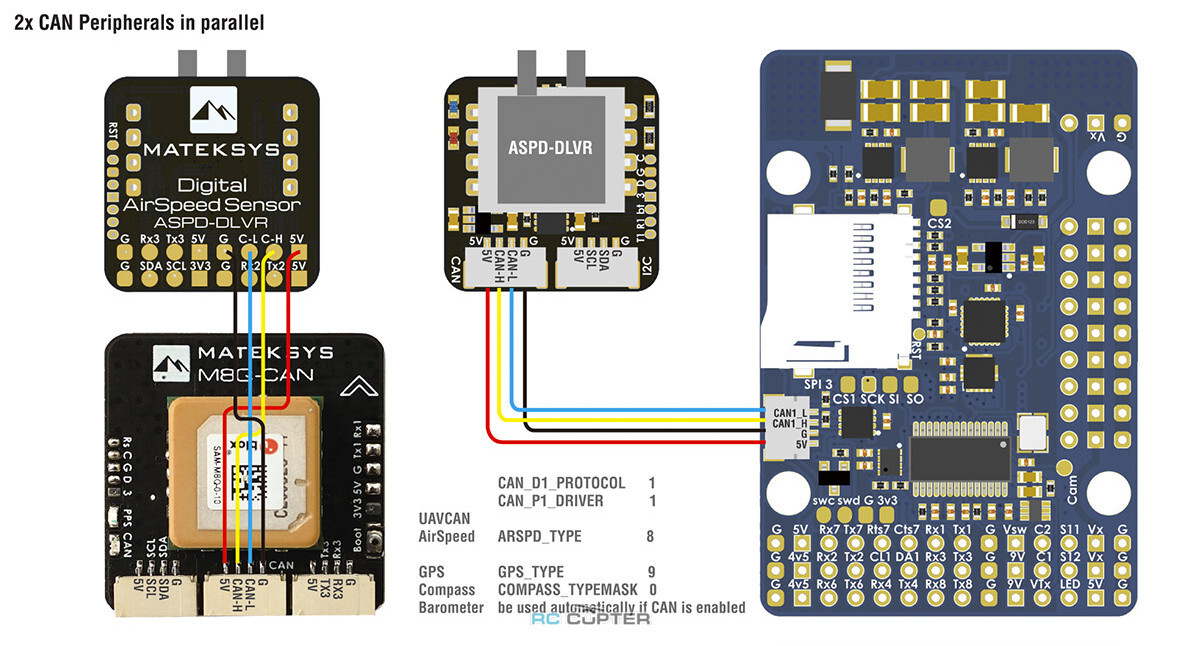

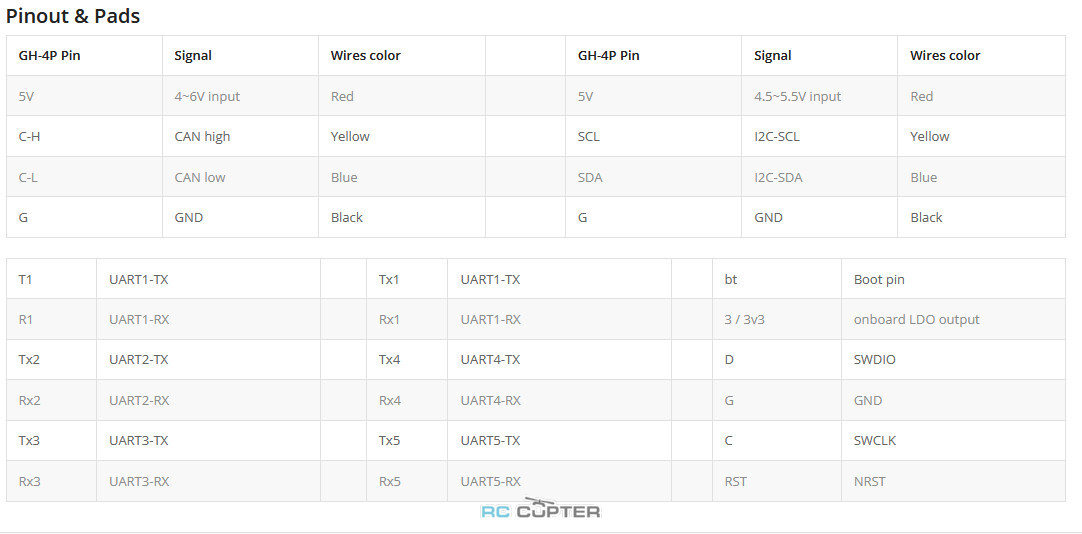

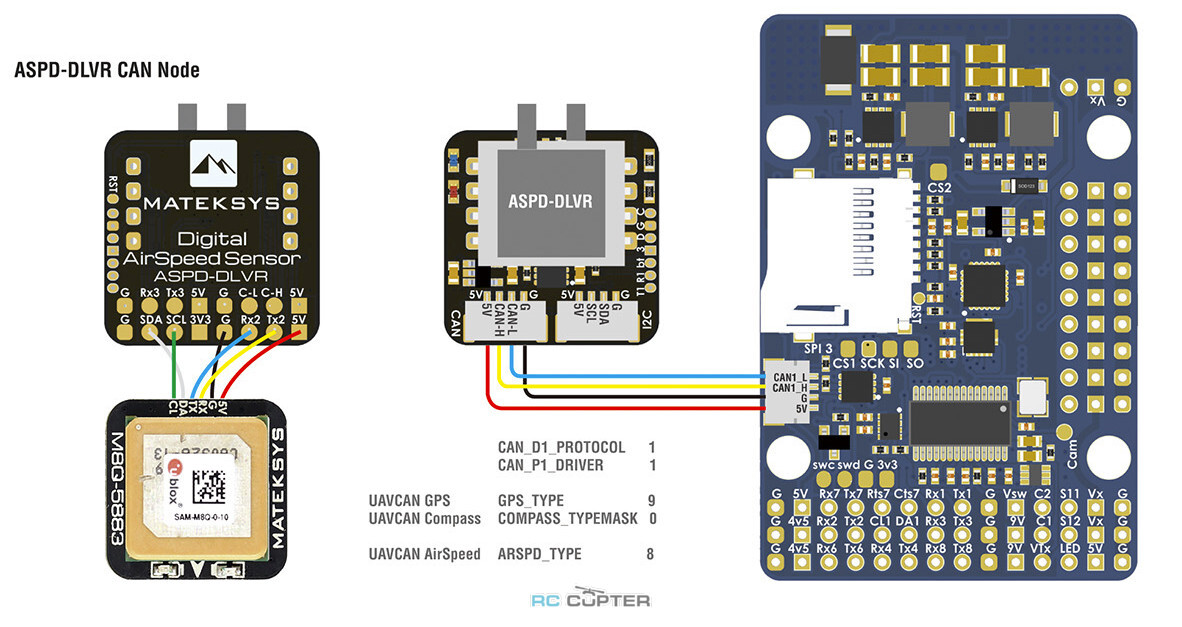

- CAN JST-GH connector, DroneCAN Protocol

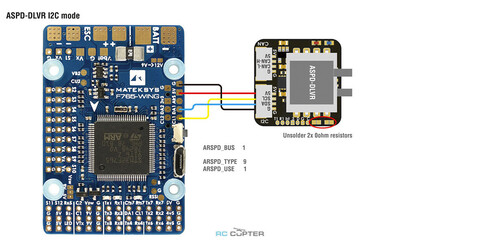

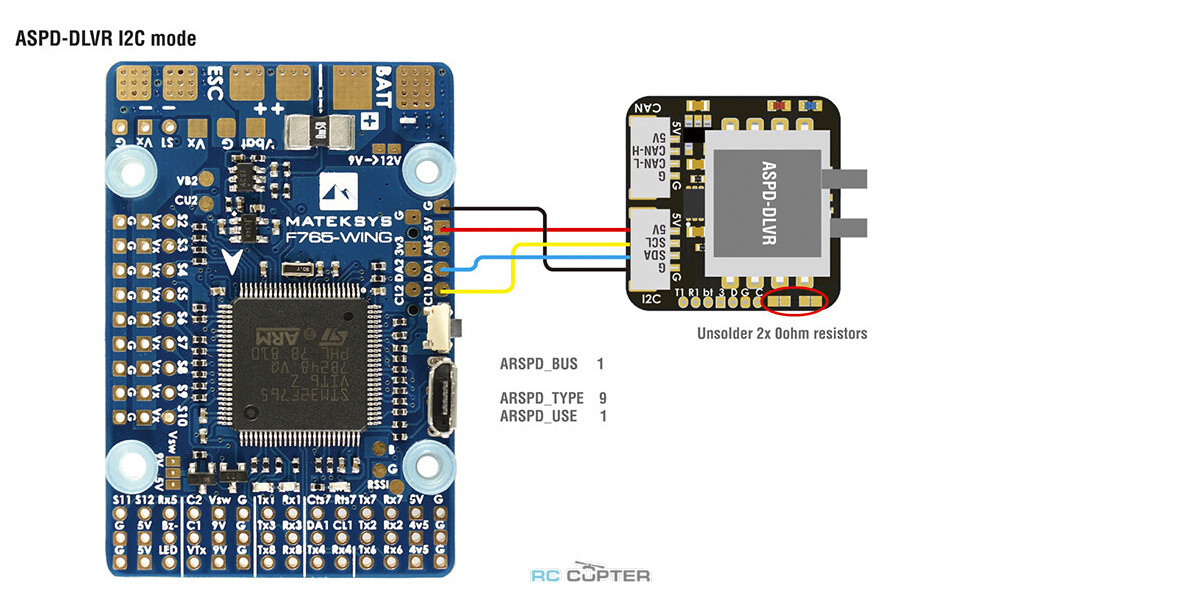

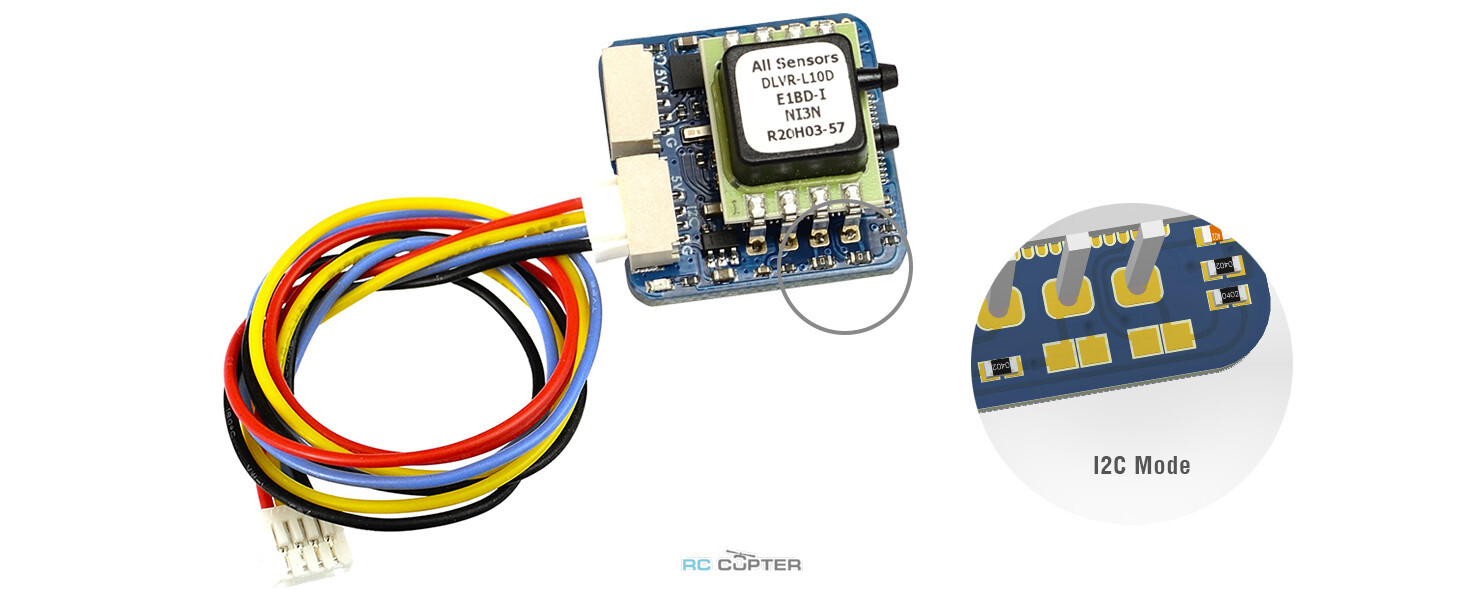

- I2C JST-GH connector, DLVR-L10D I2C mode (I2C address 0x28)
- F303 ver. (Black PCB)
- UART1, Firmware update
- UART2, Spare for external GPS

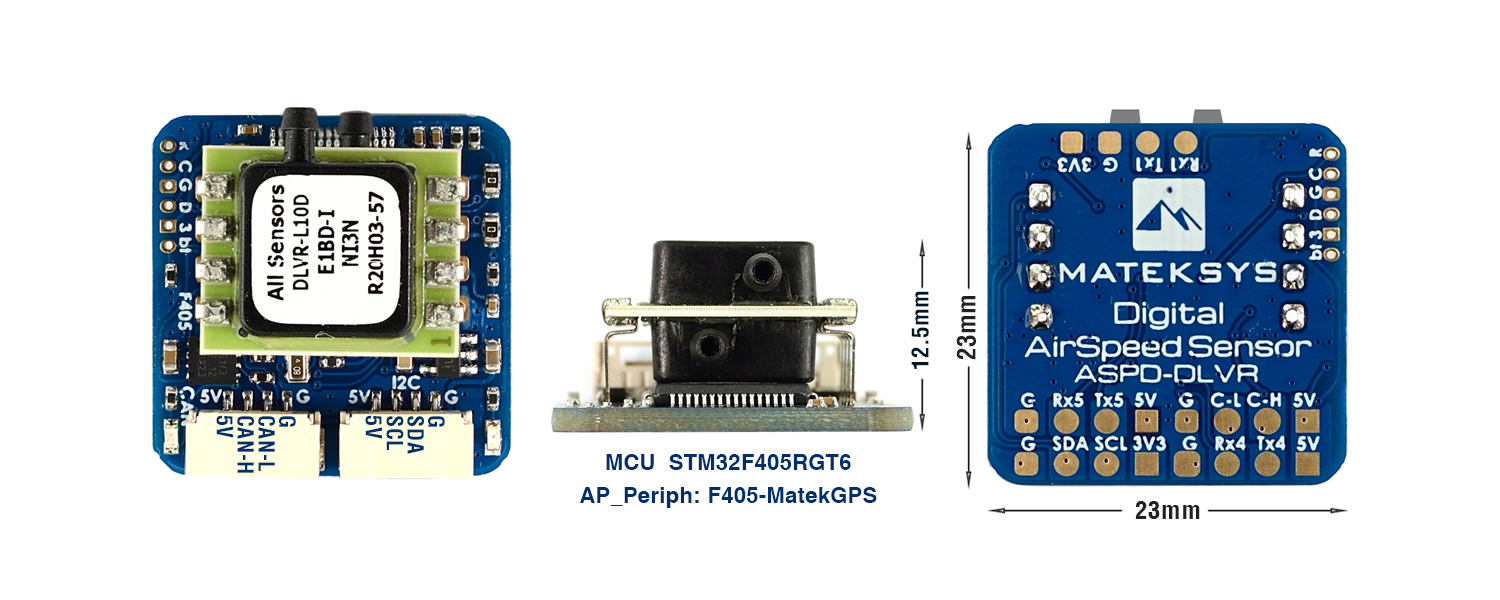

- F405 ver. (Blue PCB)
- UART1, Firmware update
- UART4, Spare for external GPS

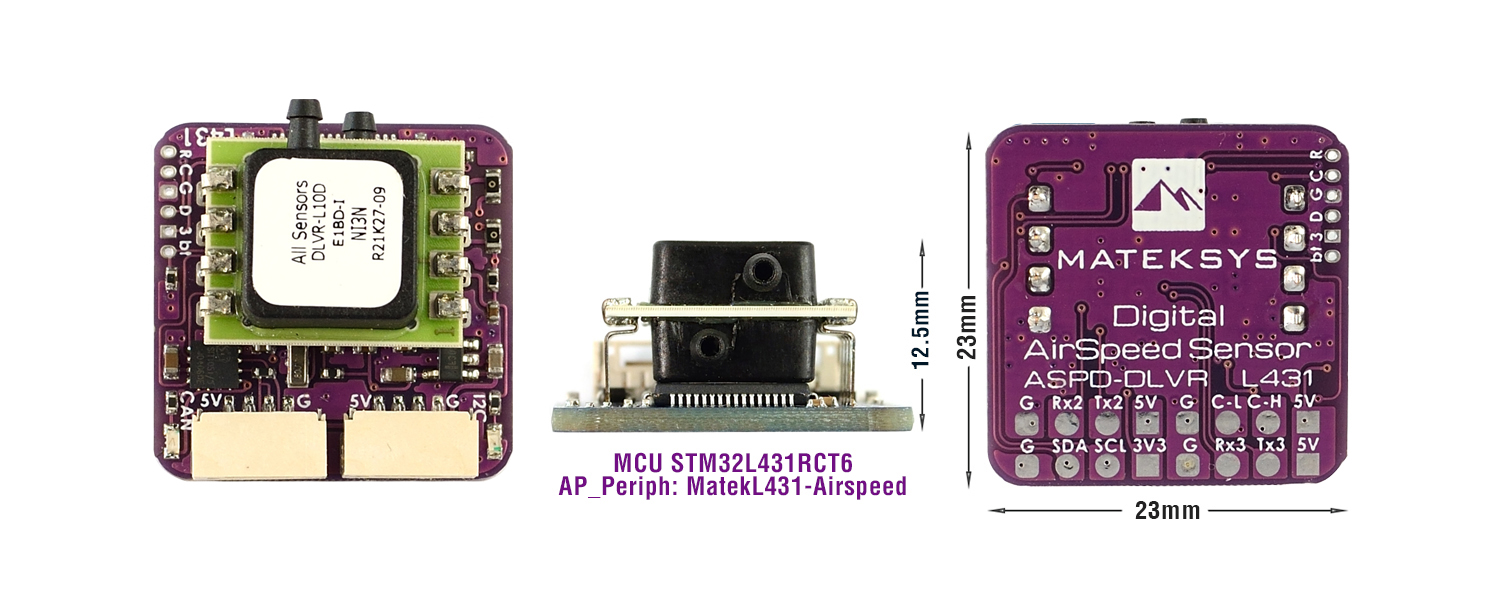

- L431 ver. (Purple PCB)
- UART2, Firmware update
- UART3, Spare for external GPS
- CAN bootloader LED, Blue
- Fast blinking, AP_Periph bootloader
- Slow blinking, CAN Node ready
- 3.3V Power LED, Red
- Input voltage range: 4.5~5.5V
- Power consumption: 60mA
- Operating Temperatures: -20°C to 85°C
- Pressure Range: 2500Pa (± 10 inH2O)
- Burst Pressure: 75kPa
- Speed Range: ±250 km/h
- 22mm*22mm*12.5mm(F303 ver.)
- 23mm*23mm*12.5mm(F405 ver.)
- 4g
информация о датчике на сайте производителя

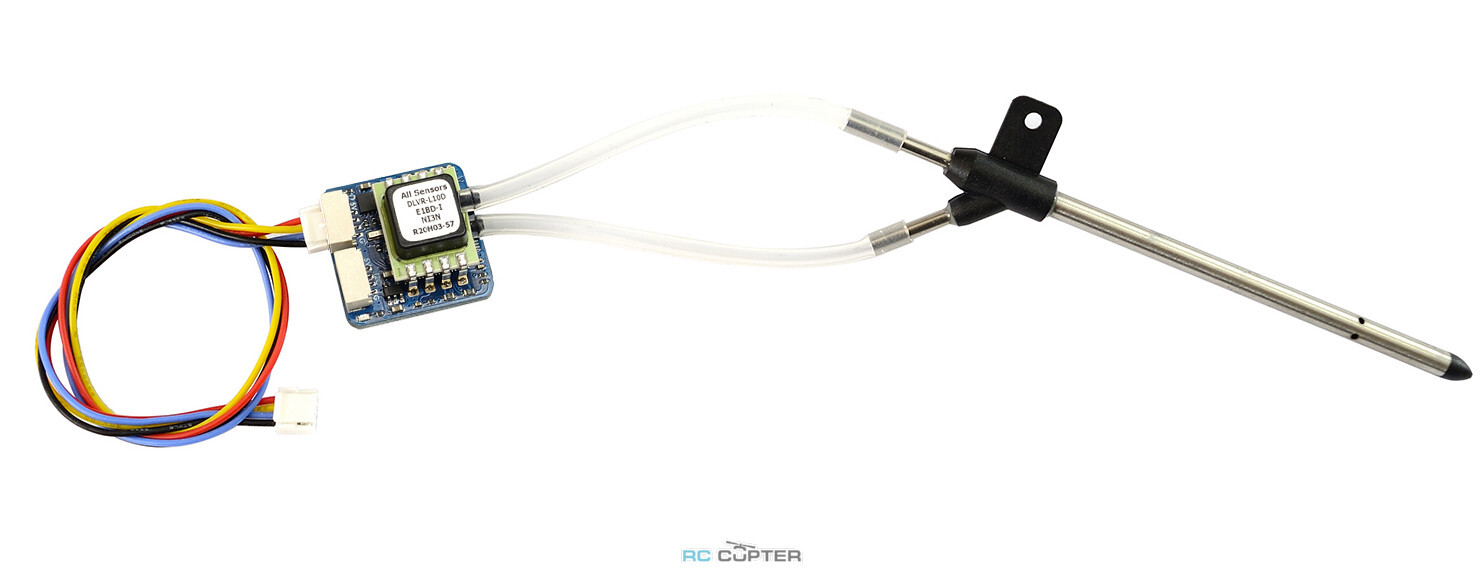

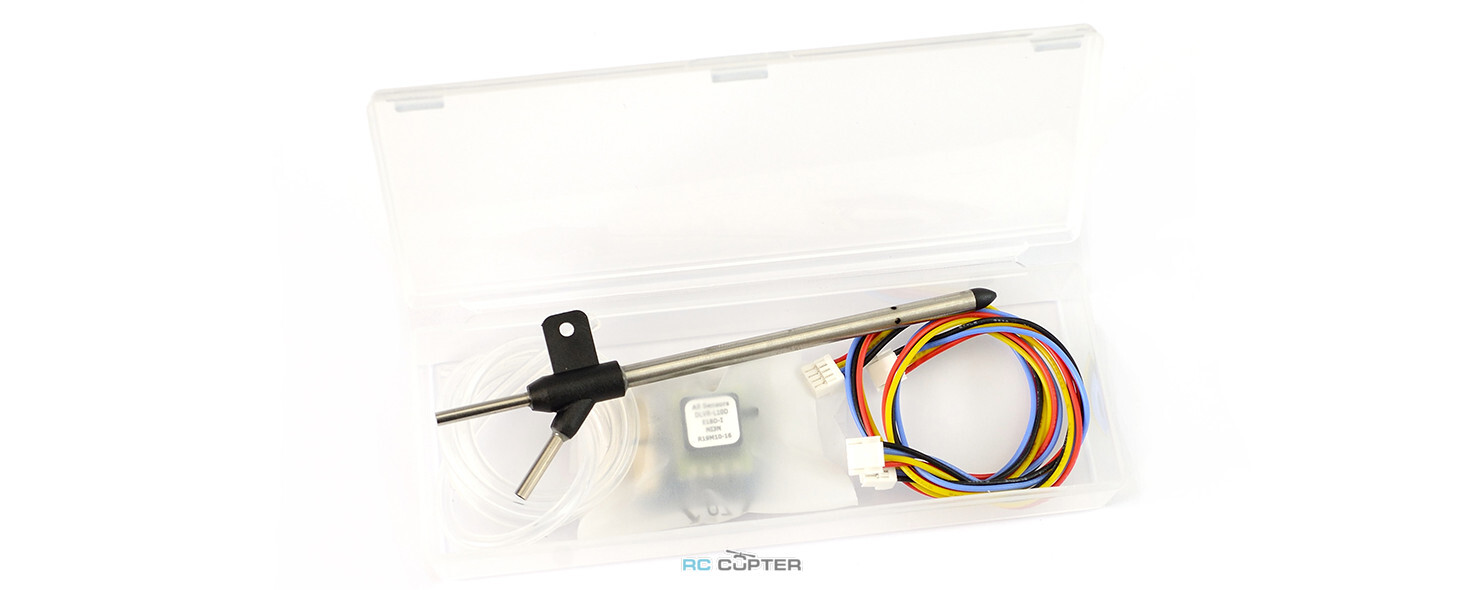

В комплекте:
- Датчик воздушной скорости Matek AS-DLVR - 1шт
- Кабель JST-GH-4P to JST-GH-4P 20cm - 2шт
- Резиновая трубка (шланг) 40см - 1шт
- Трубка Пито - 1шт
Полезные ссылки:
As STM32F303CCT6 and STM32F405RGT6 are in shortage. ASPD-DLVR has been updated with L431 CAN node since Mar.2022. L431 version has identical PCB size(purple PCB) and layout to previous F405 version.
- Black PCB, F303 CAN node, Jul.2020 — Dec.2020
- Blue PCB, F405 CAN node, Jan.2021 — Feb.2022
- Purple PCB, L431 CAN node, Mar.2022 — now
- Firmware: https://firmware.ardupilot.org/AP_Periph/stable/
- F303 CAN node, Black PCB, ArduPilot hwdef “f303-MatekGPS”
- F405 CAN node, Blue PCB, ArduPilot hwdef “f405-MatekAirspeed” or “f405-MatekGPS”
- L431 CAN node, Purple PCB, ArduPilot hwdef “MatekL431-Airspeed” or “MatekL431-Periph”

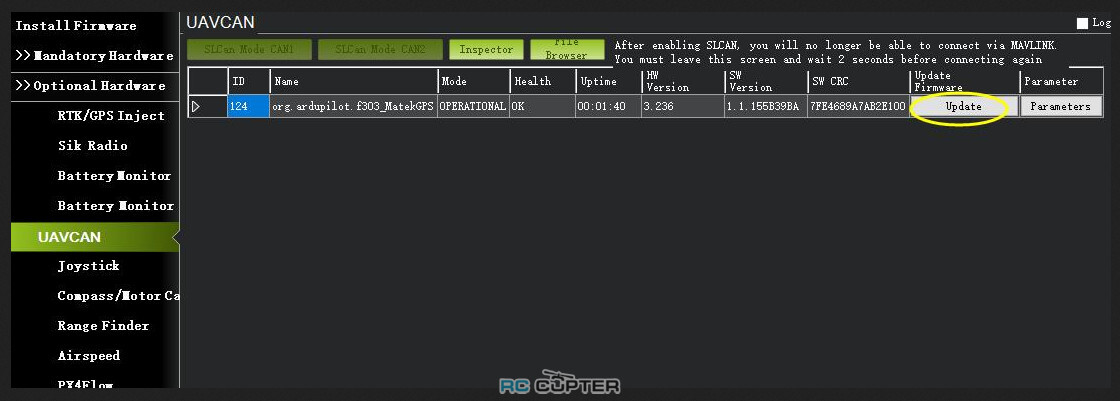

1. Update firmware in Mission Planner with “AP_Periph.bin”

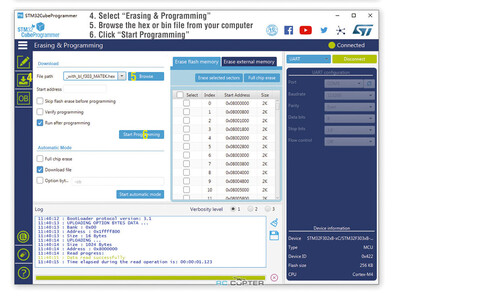

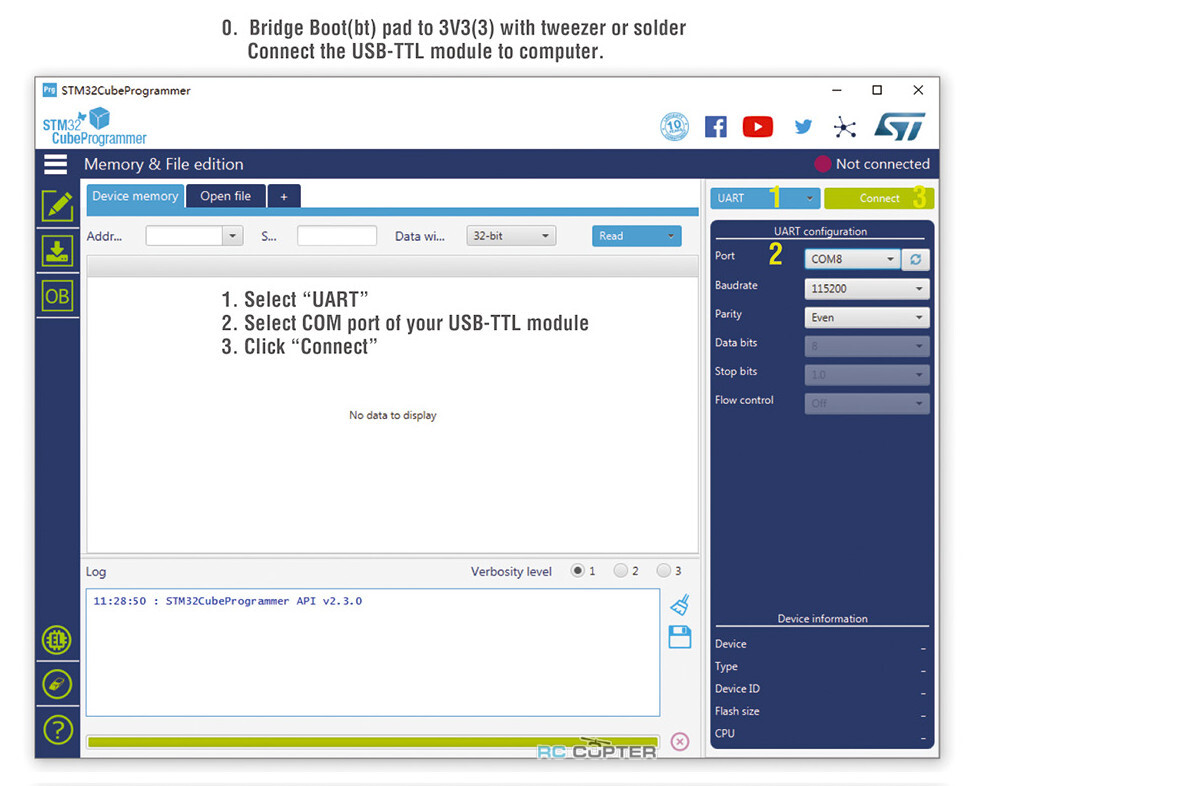

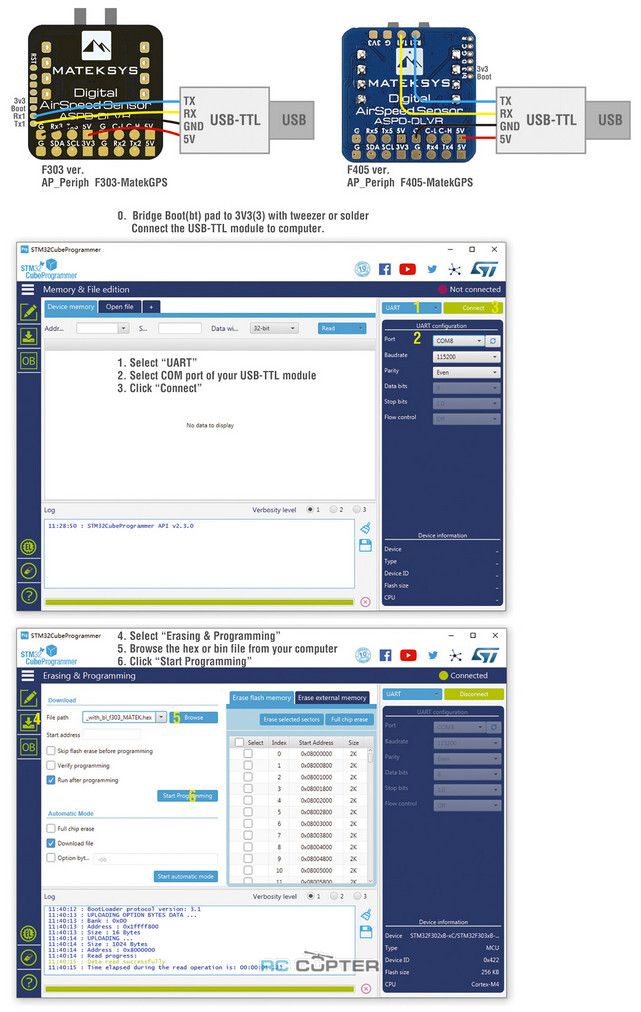

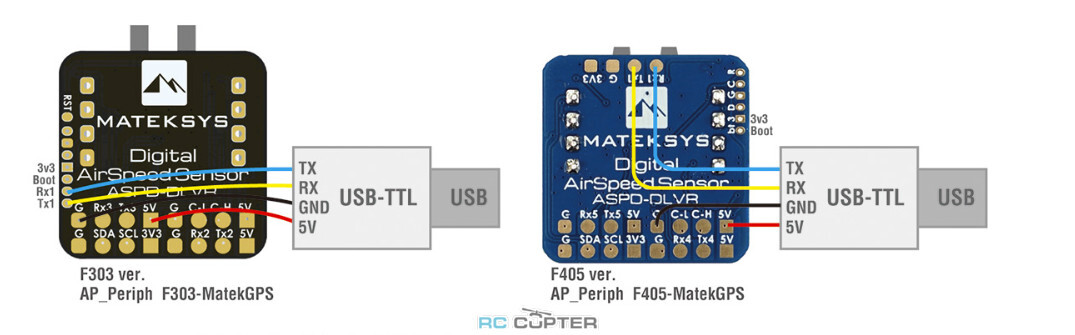

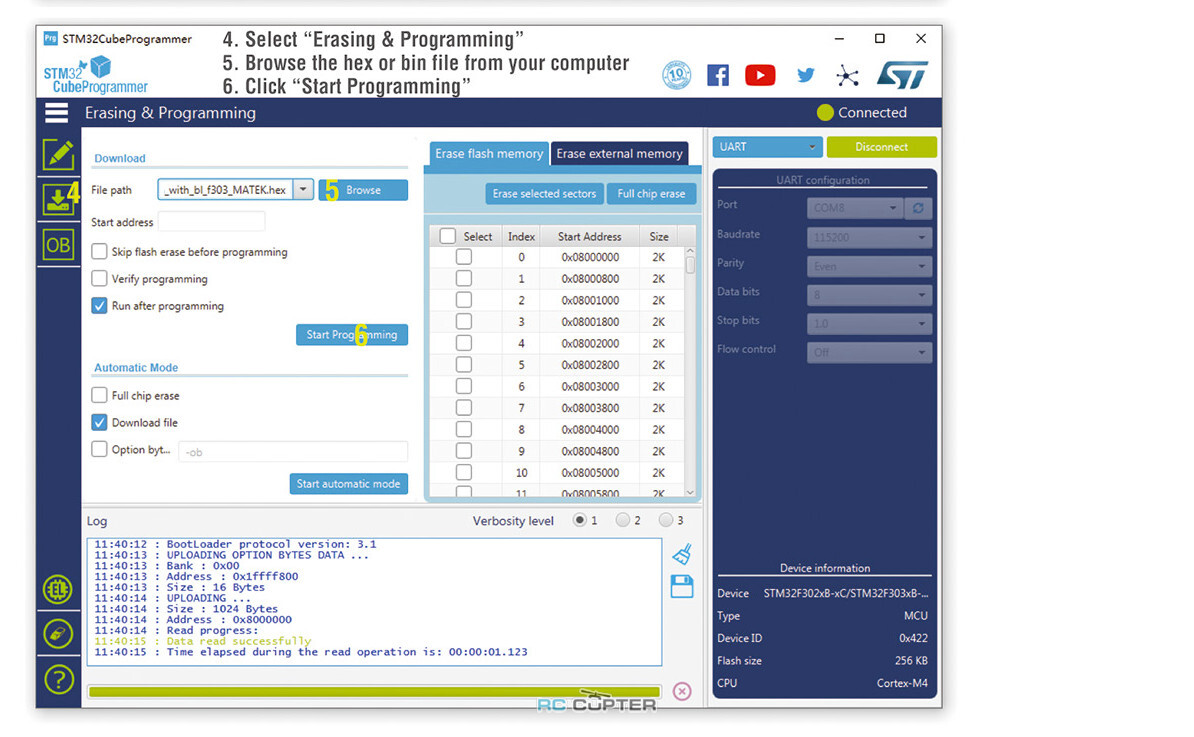

2. Update firmware in STM32CubeProgrammer with “AP_Periph_with_bl.hex”
Tool https://www.st.com/en/development-tools/stm32cubeprog.html
You may download Windows version from our server en.stm32cubeprog_v2-3-0.zip
