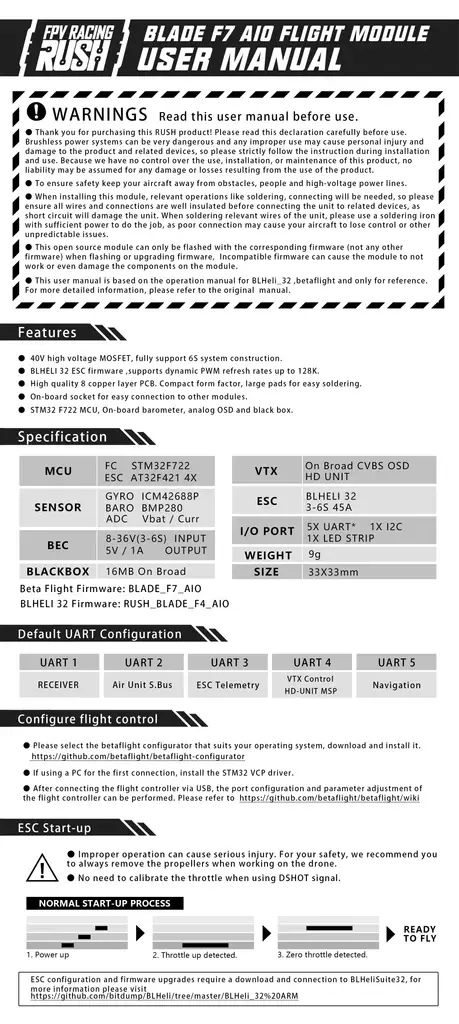

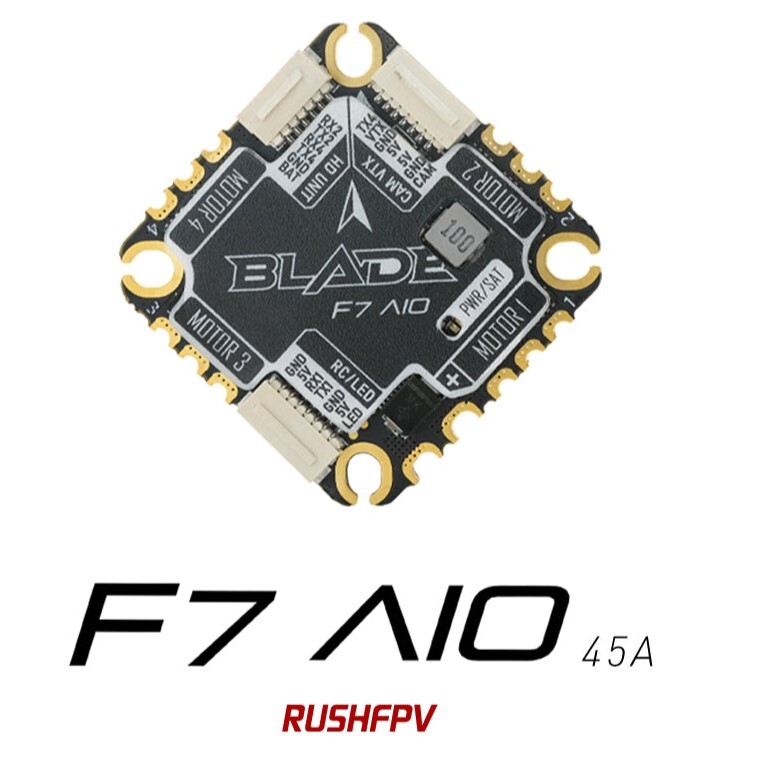

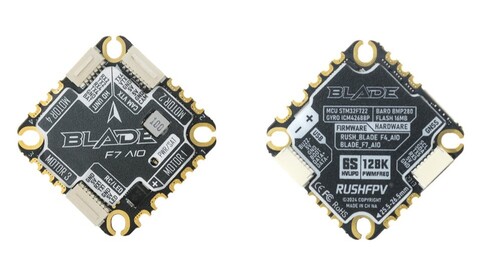

Полётный контроллер BLADE F7 + ESC 45A 4in1
MCU | FC STM32F722 ESC AT32F421 4X | VTX | On Broad CVBS OSD HD UNIT | |
SENSOR |
GYRO ICM42688P BARO 8MP280 |
ESC | BLHELI 32 3-6S 45A | |
I/O PORT | 5X UART* 1X I2C 1X LED STRIP | |||
BEC | 8-36V(3-6S) INPUT | |||
5V/1A OUTPUT | WEIGHT | 9g | ||
BLACKBOX | 16MB On Broad | SIZE | 33X33mm |
Beta Flight Firmware: BLADE_F7_AIO
BLHELI 32 Firmware: RUSH BLADE_F4_AIO

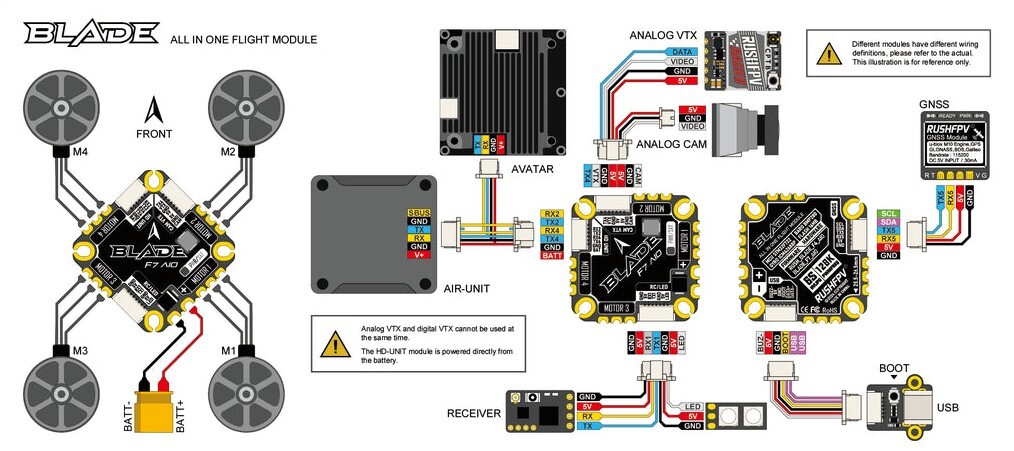

Default UART Configuration |
||||
UART 1 | UART 2 | UART 3 | UART 4 | UART 5 |
RECEIVER | Air Unit S.Bus | ESC Telemetry | VTX Control HO UNIT MSP | Navigation |
• Please select the betaflight configurator that suits your operating system, download and install It. https://github.com/belanight/betaflighl-configurator
• If using a PC for the first connection. install the STM32 VCP driver.

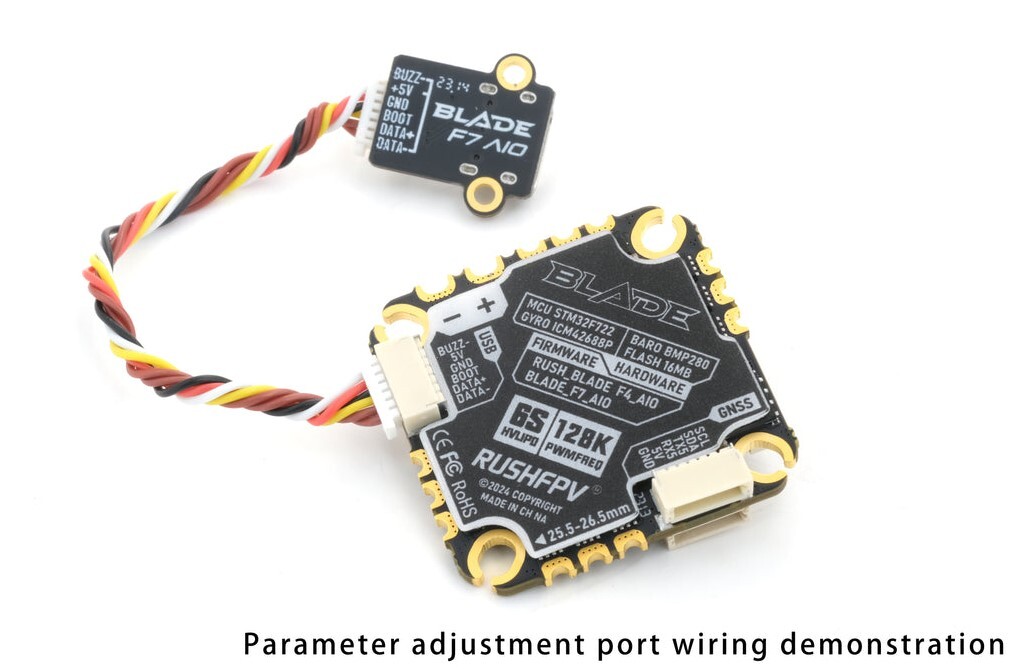

• After connecting the flight controller via USB, the port configuration and parameter adjustment of the flight controller can be performed. Please refer co https://giihub.com/betaflighi/betaflight/wiki
ESC configuration and firmware upgrades require a download and connection to BLHeliSuite32. for mote information please visit https://github.com/bitdump/BlHeli/tree/master/BlHeli_32%20ARM
Количество моторов: | 4 |
Производитель: | RUSHFPV |
