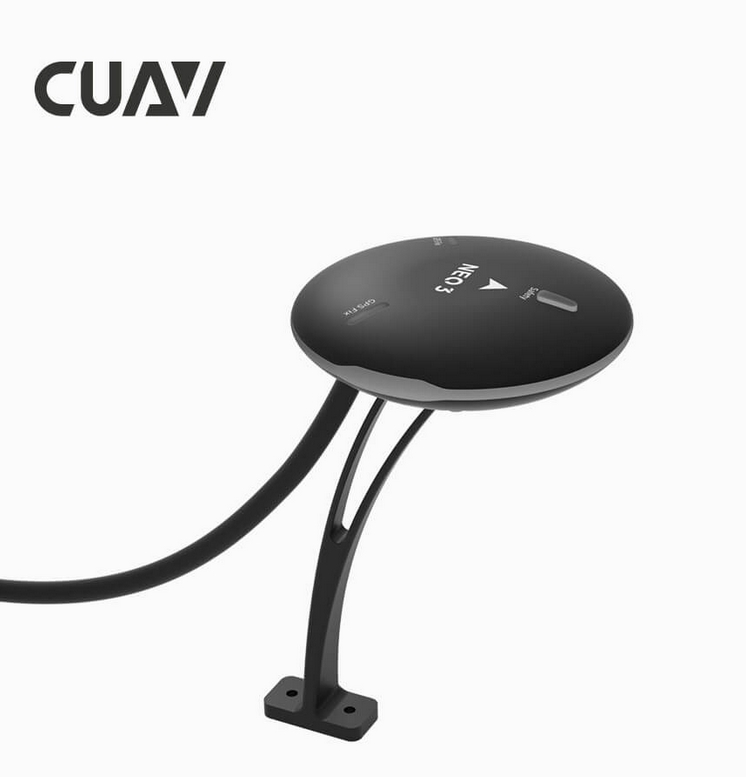

GPS модуль CUAV NEO 3 (M9N)

Артикул: 38326

нет в наличии
под заказ, пишите

Описание
Характеристики
Сопутствующие товары
Аналоги
Отзывы (0)

Product Brief

NEO 3 GNSS Module:

1– Ublox M9N satellite receiver, accuracy up to 0.7m

2– Support BDS, GALILEO, GLONASS, GPS four satellite systems

3– Support simultaneous reception of four satellite systems

4– Triple filters design

Introduction:

NEO 3 is a cost-effective M9N navigation and positioning product with a single point positioning accuracy of up to 0.7m. It integrates positioning system, magnetic compass, controller status light, controller alarm, and barometer, and can receive signals from four major satellite navigation and positioning systems simultaneously

Main Parameters

Main Parameters
Compass	ST8310
RGB Drive	NCP5623
Buzzer	Passive buzzer
Safety Switch	Physical button
GNSS Receiver	UBLOX NEO M9N
Number of Concurrent GNSS	4(BDS、GALILEO、GLONASS、GPS)
Frequency Band	GPS:L1C/A GLONASS:L10F BDS:B11 GALILEO:E1B/C
GNSS Augmentation System	SBAS:WAAS,EGNOS,MSAS QZSS:L1s(SAIF) other:RTCM3.3
Horizontal Accuracy	2.0m
Speed Accuracy	0.05m/s
Nav.update rate	25Hz(Max)
Acquisition	Cold start:24s Hot start:2s Aided start:2s
Number of Saellites(MAX)	32+
Sensitivity	Trackng and nav-167dBm Cold start Hot start-148dBm Reacquisition-160dBm
Protocol	UART+IO+l2C
Port Type	GHR-10V-S
Supported Controller	CUAV series, Pixhawk series
Wave Filtering	SAW+LNA+SAW
Anti-Lectromagnetic/Radio FrequencyInterference	EMI+RFI
Upgrade Firmware	Support
Support Control Type	ArduPilot/PX4*(PX4 is stillworking hard to adapt to the clock)
Input Voltage	4.7-5.2V
Operating Temperature	-10～70℃
Size	60×60×16mm
Weight	33g

Product Feature

Buzzer prompt
Safety switch
Industrial grade
electronic compass
RGB surround light
CROCOMM custom antenna

Satellite receiver Ublox M9N

New generation satellite receiver Ublox M9N. The actual measurement can reach a maximum accuracy of 0.7m.

Beidou and Galileo satellite systems

Concurrent reception of GPS, GLONASS, Beidou and Galileo satellite.

Triple filtering design

NEO V3 Pro adopts SAW+ LNA + SAW triple filtering design, which effectively avoids the influence of remote control. digital transmission. and 4G signals on GPS positioning reception.

Measured comparison data betweenNEO 3 and NEO V2

Test environment

Location: football field of science and technology information Park, Nansha district,Guangzhou. China Weather: Sunny

Test method

Install NEO V2 and NEO 3 on the Xunwing X4 flight platform. NEO 3 is GPS1 NEO V2 is GPS2. use the autopilot log storage function to read log data
for analysis.
