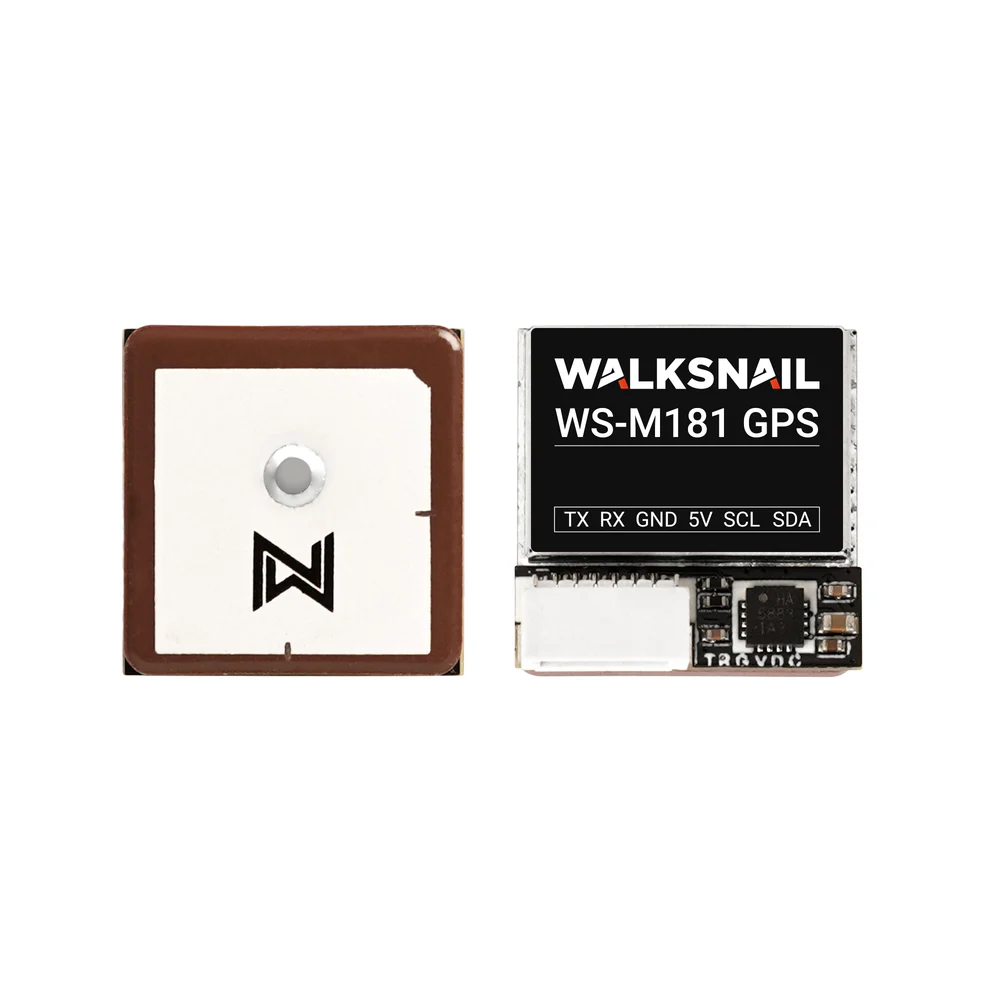

GPS модуль Caddx Walksnail WS-M181 (M10, QMC5883)

caddx Walksnail WS-M181 GPS SKU: C0PJ-18GPS

Bullet Point

    With small size, light weight, fast positioning, and stable connection. It is suitable for FPV, RC airplane, quadcopter and others to enhance the flight experience.

    Featuring a high-performance M10 GNSS chipset and a built-in IST8310 magnetometer, the module delivers enhanced performance and more accurate positioning.

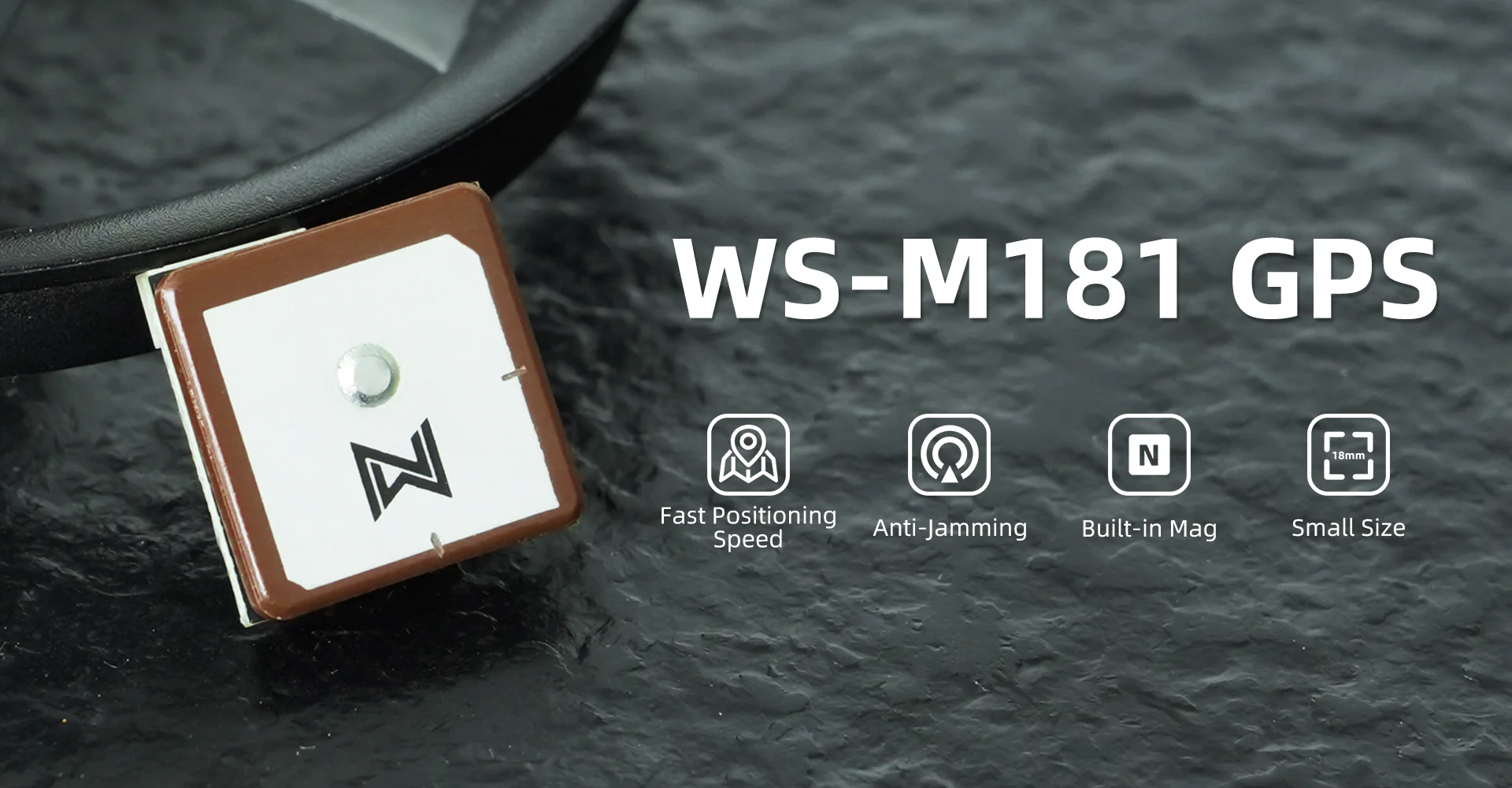

    The ultra-thin ceramic antenna uses a special spray painting process to prevent oxidation and scratching, ensuring consistent positioning performance.

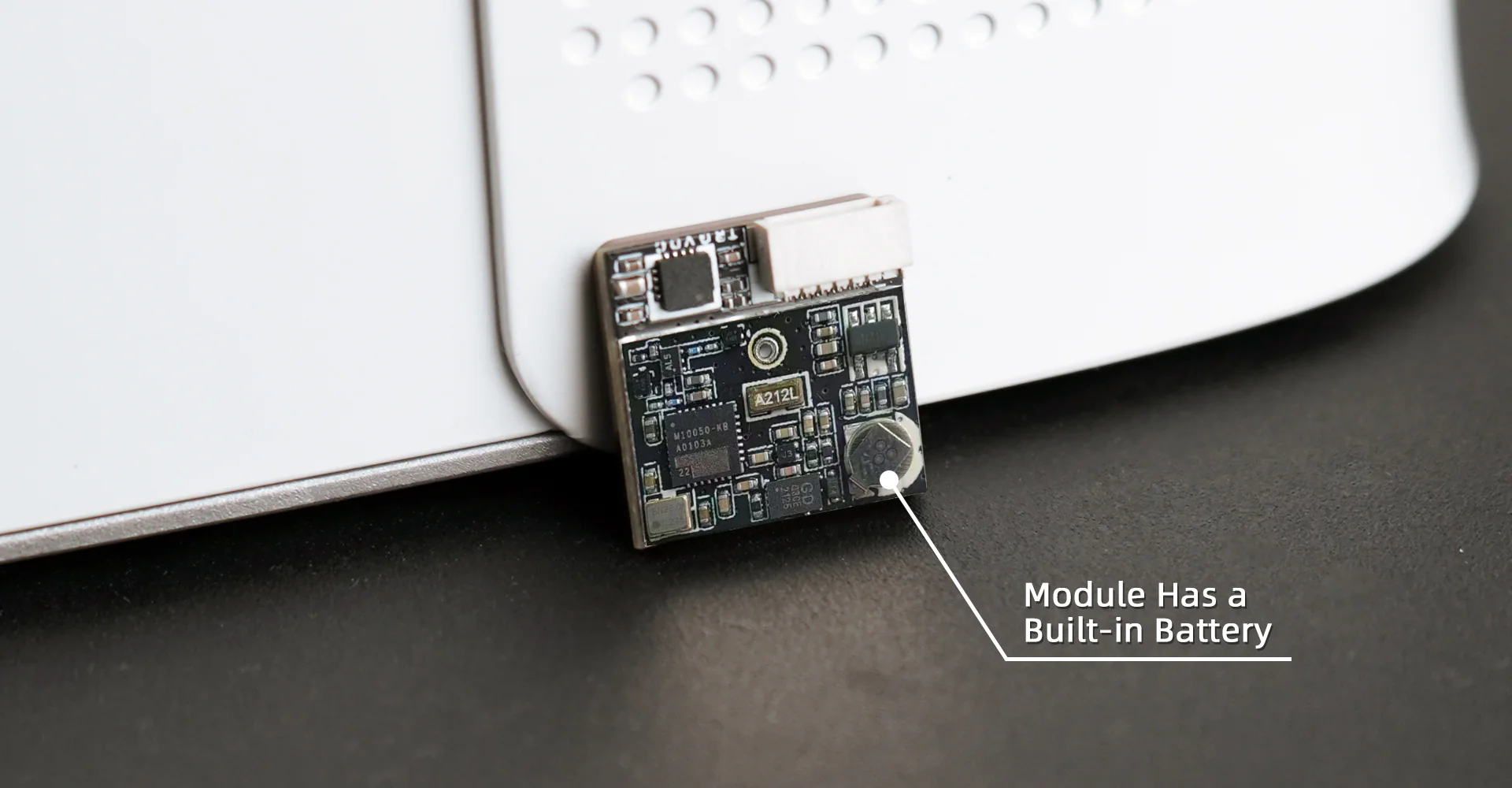

    The built-in battery can realize hot start and realize positioning quickly.

    It offers six positioning modes, providing more flexible combinations (default GPS + GLONASS + BDS multi-mode positioning).The measured maximum number of search sats can cover 32pcs.

Note:

Because the GPS chip is a new 10th generation chip, the flight controller needs to flash firmware Betaflight  4.3.0 and above, and the firmware below 4.29 uses the NMEA protocol.

Specification

• name     Walksnail WS-M181GPS
• Chip:     M10 (ten generation chip)
• Frequency:     GPS L1,GLONASS L1,BDSB1,GALILEO E1,SBAS L1.QZSS L1
• Power:     5V
• Size:      18mm*18mm*4.6mm
• Antenna:     ceramic antenna (oil spraying process, prevent scratching and oxidation)
• Receiving channels:     72 search channels
• Compass：     IST8310
• Baud rate:     115200dps
• Output protocol:     Dual-protocol GNSS output (NMEA compatible)
• Output frequency:     1Hz-10Hz, Default 10Hz
• Speed accuracy:     0.05m/s
• Horizontal positioning accuracy:     2D ACC1.5m(open air)
• Receiving sensitivity:

  Trace-162dBm

  Capture -160dBm

• weight：     About 4.3g

• Dynamic characteristics:
  Altitude:     50000m
  Speed:     500m/s
  Acceleration:     4G

• Operating temperature:     -40℃-+85℃

• Storage temperature:     -40℃-+105℃

Комплектация:

• GPS модуль Caddx Walksnail WS-M181 (M10, QMC5883) - 1 шт
