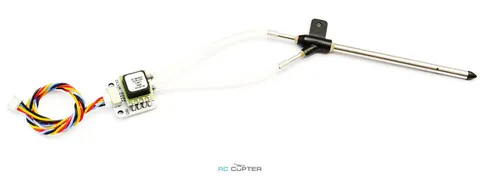

Датчик воздушной скорости Matek AS-DLVR-I2C

 Датчик воздушной скорости Matek AS-DLVR-I2C

Характеристики:

• Sensor: All sensors DLVR-L10D, Industrial temperature range
• DLVR-L10D Sensor datasheet, pls visit www.allsensors.com
• Interface: I2C (SCL & SDA)
• Sensor I2C address: 0x28
• Pressure Ranges: 2500Pa
• Maximum Pressure: 75kPa
• Operating Temperature: -25°C ~ 85°C
• Board Supply voltage: 4~5.5V DC
• Working current: 5mA
• Red LED: 3.3V power indicator

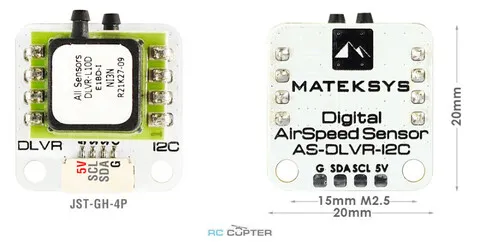

• JST-GH sequence: 5V, SCL, SDA, GND
• Weight: 3.5g (sensor board)

Wiring

• 5V to FC 4~5.5V
• SCL to FC I2C_SCL
• SDA to FC I2C_SDA
• G to FC GND

Parameters

• ArduPilot: ARSPD_TYPE = 9 (I2C-DLVR-10in)

Tips

• Compatible with ArduPilot only for now, INAV doesn’t support it.
• AS-DLVR-I2C support I2C interface only. for CAN connection, pls visit ASPD-DLVR page, or use AS-DLVR-I2C with CAN Node L431

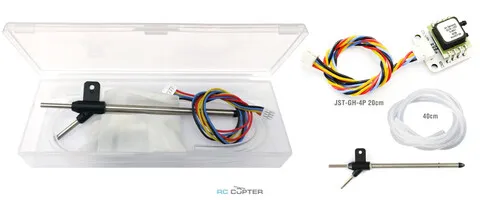

В комплекте:

• Датчик воздушной скорости Matek AS-DLVR-I2C - 1шт
• Кабель JST-GH-4P to JST-GH-4P 20cm - 1шт
• Резиновая трубка (шланг) 40см - 1шт
• Трубка Пито - 1шт
