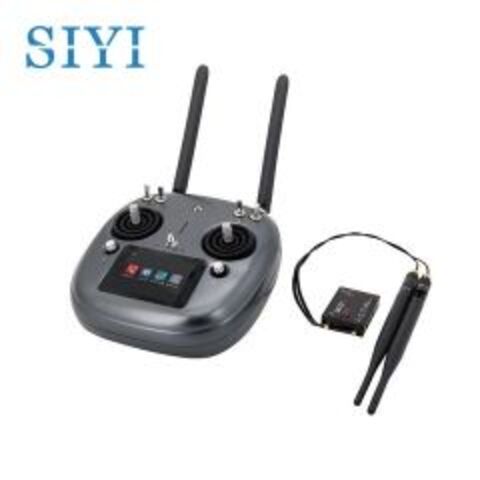

SIYI DK32S Enterprise: 20KM Radio & datalink transmission.
| Max Transmission Range |
20 km (Unobstructed, free of interference) |
| Channels |
16 Physical Channels 16 Communication Channels |
| Frequency Band |
2400 ~ 2483 MHz |
| Receiving Sensibility |
-101 dBm |
| Datalink Compatible Flight Controllers |
PX4 / Ardupilot Flight Controllers or any flight controllers with UART port for transparent communication |
| Compatible Model / Aircraft / Vehicle |
UAV / Drones: Multi-rotor, VTOL RC Hobby: Planes, Helicopters, gliders UGV, USV, Smart Robotics |
| Monitor |
2.8-Inch High-Brightness Colorful LCD Display Capacitive Touchscreen Resolution: 240 x 320 |
| Language Display |
Chinese English |
| Battery Type |
Built-in 3.7 V 5000 mAh Li-Po 1S Battery |
| Battery Life |
12 hours |
| Charging Port |
Micro-USB |
| Model Data Storage |
64 groups (expandable by SD card) |
| Dimensions |
194.5*172.5*114 mm |
| Weight |
610 g |
| Signal Output |
16 channels of SBUS 8 channels of PWM |
| Interface & Ports |
Datalink (to FC): UART (GH1.25 4-Pin) Firmware Upgrade: Micro-USB |
| Dimensions |
51.5*38*13 mm (antenna excluded) |
| Weight |
33 g (antenna excluded) |
| Antenna Gain |
2.4G Rod Antenna: 5 dBi |
| Working Voltage |
5 V |
| Voltage Telemetry Range |
0 ~ 50 V |
| Working Temperature |
-10°C ~ 50°C |
Сайт производителя:
https://siyi.biz/en/index.php?id=195
| Производитель: | SIYI |
| Тип: | Приёмник + передатчик |
