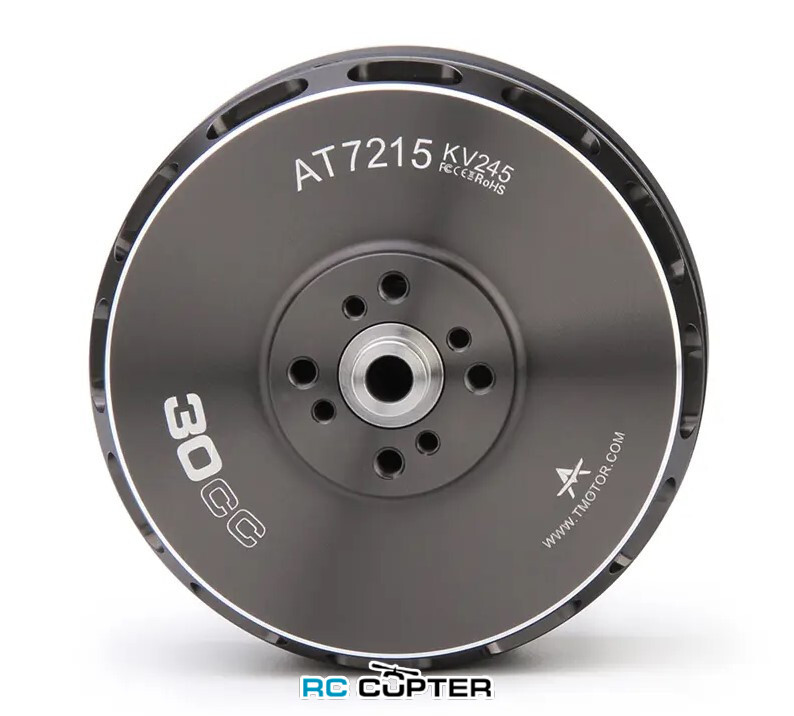

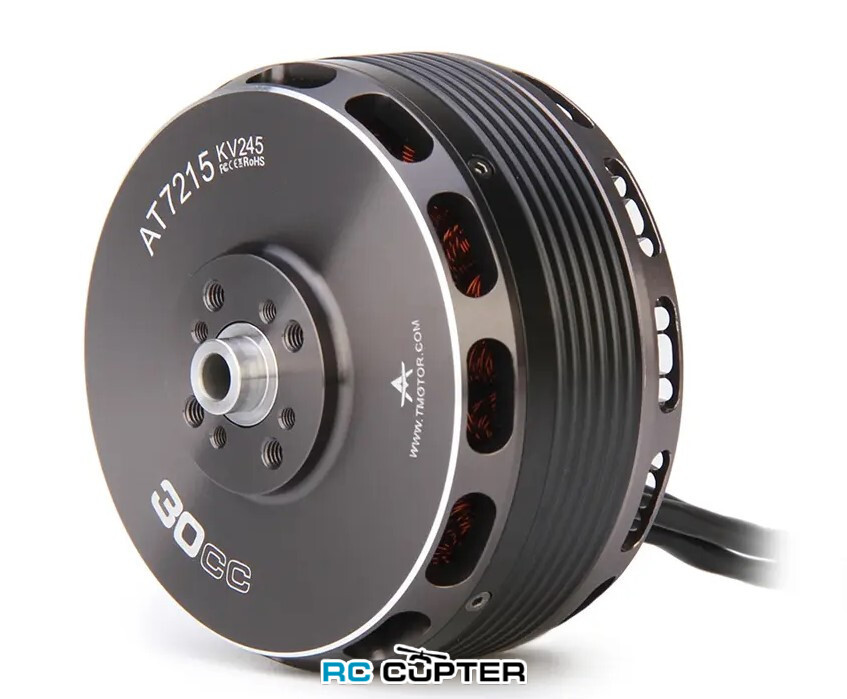

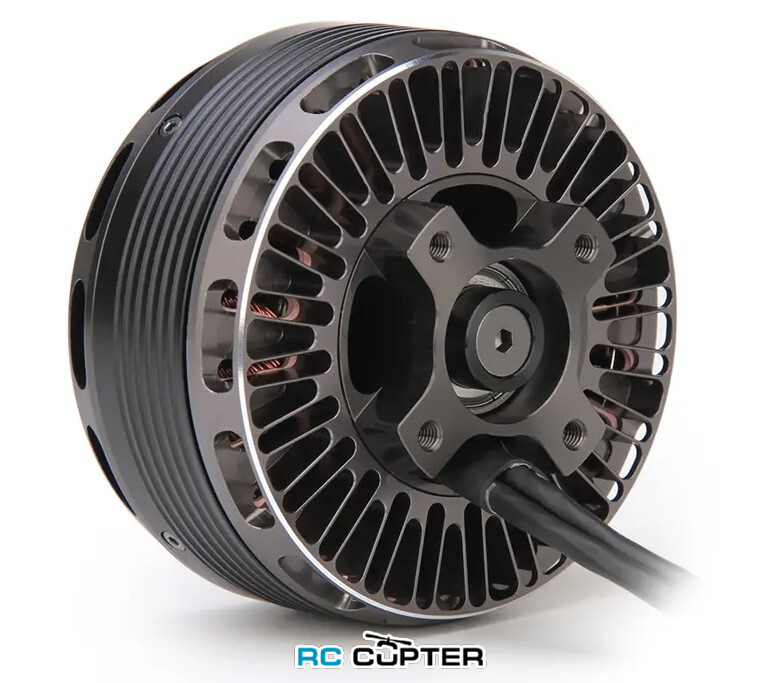

T-Motor AT7215 245KV 30CC - это мотор (длинный вал, бесщеточный двигатель) для авиамодели с фиксированным крылом, VTOL, БПЛА, Fixed Wing.

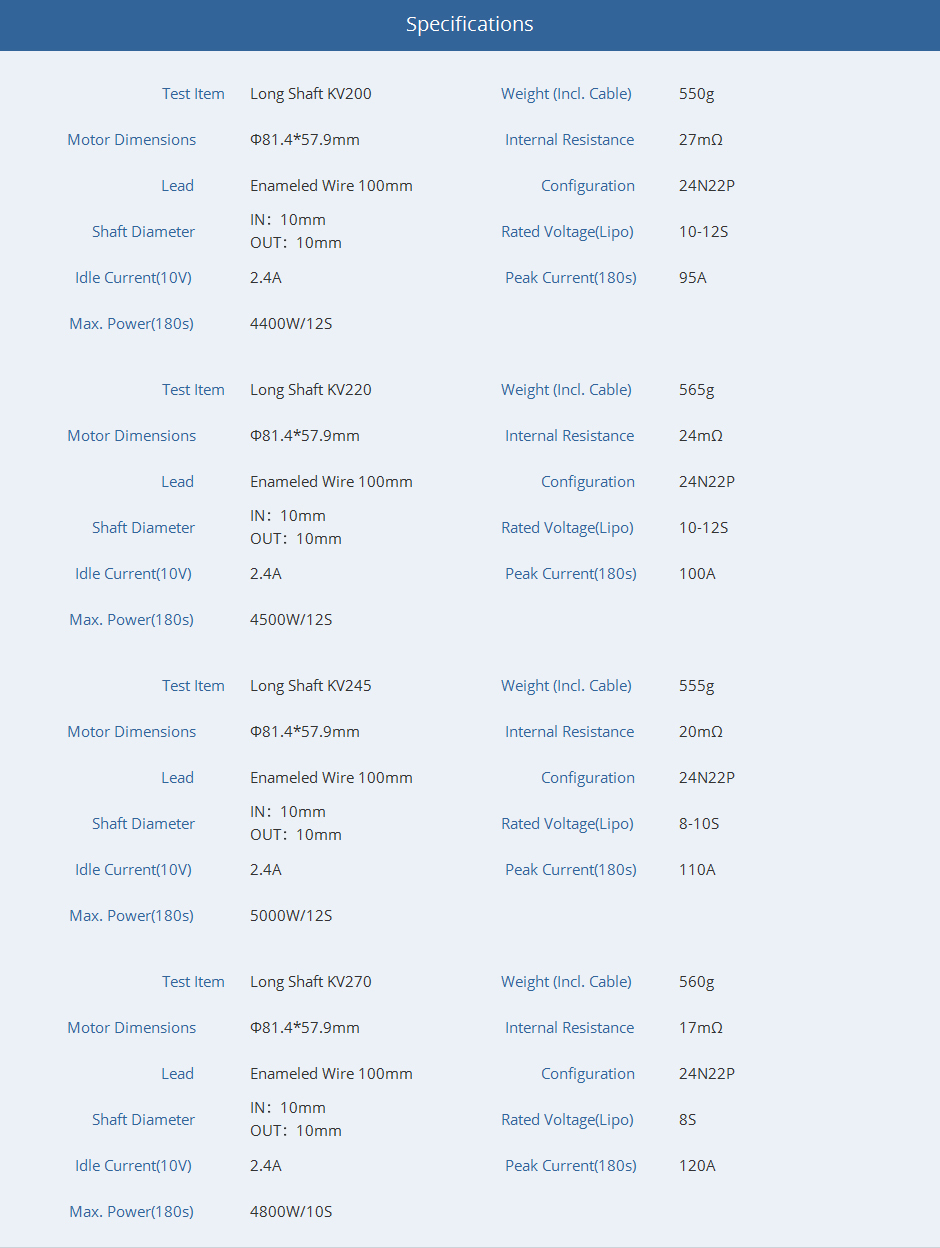

название | Long Shaft KV245 | Вес (включ. провода) | 555g |

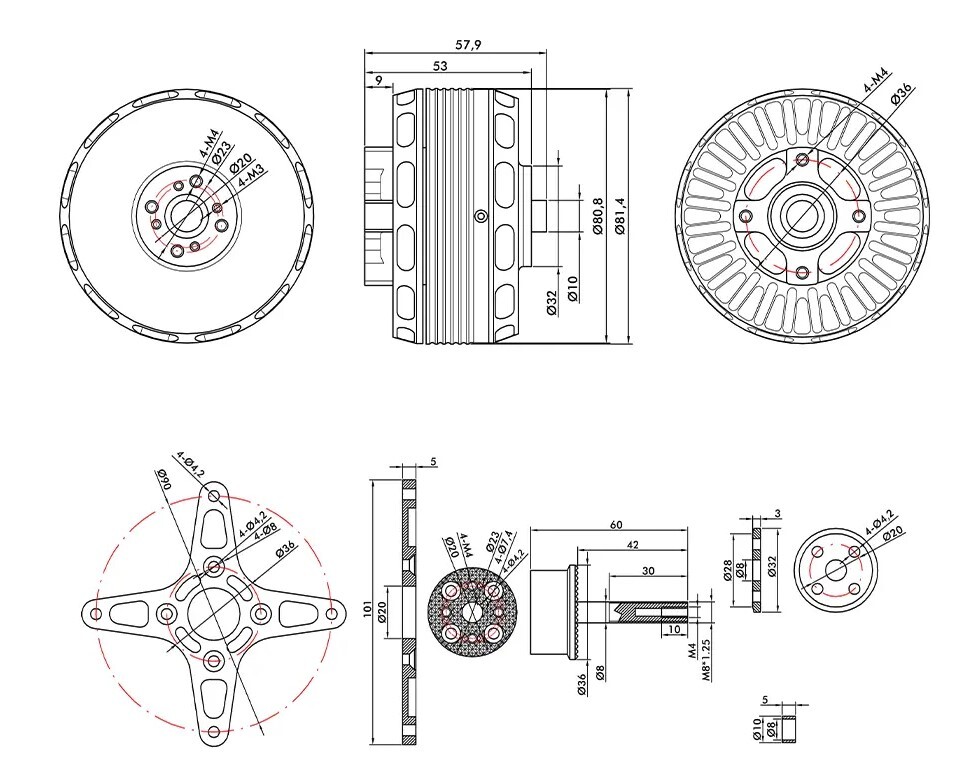

размеры мотора | Φ81.4*57.9mm | Внутренне сопротивление | 20mΩ |
провод | Enameled Wire 100mm | Конфигурация | 24N22P |
диаметр вала | IN:10mm OUT:10mm |
Напряжение(Lipo) | 8-10S |
ток холостого хода(10 В) | 2.4A | Пиковый ток(180 сек) | 110A |
Макс. мощность (180 сек) | 5000W/12S |
Type | Propeller | Throttle | Voltage (V) |
Current (A) |
Power (W) |
RPM | Torque (N*m) |
Thrust (g) |
Efficiency (g/W) |
Operating Temperature (℃) |
AT7215 KV245 |
18*10 | 40% | 36.88 | 6.74 | 248.78 | 3681 | 0.508 | 1721 | 6.92 | / |
45% | 36.83 | 9.24 | 340.17 | 4147 | 0.705 | 2207 | 6.49 | |||
50% | 36.75 | 12.77 | 469.25 | 4629 | 0.862 | 2763 | 5.89 | |||
55% | 36.68 | 15.99 | 586.52 | 5048 | 1.009 | 3291 | 5.61 | |||
60% | 36.56 | 21.67 | 792.09 | 5568 | 1.215 | 4015 | 5.07 | |||
65% | 36.45 | 26.84 | 978.43 | 6014 | 1.391 | 4703 | 4.81 | |||
70% | 36.33 | 32.57 | 1183.31 | 6451 | 1.550 | 5324 | 4.50 | |||
75% | 36.18 | 39.66 | 1434.73 | 6807 | 1.779 | 5832 | 4.07 | |||
80% | 36.04 | 46.63 | 1680.64 | 7180 | 1.989 | 6425 | 3.82 | |||
90% | 35.66 | 64.50 | 2299.79 | 7864 | 2.449 | 7610 | 3.31 | |||
100% | 35.57 | 67.85 | 2413.58 | 7977 | 2.524 | 7821 | 3.24 | |||
18*10 | 40% | 41.84 | 7.90 | 330.42 | 4114 | 0.567 | 2137 | 6.47 | 74 (Ambient Temperature: /) |
|
45% | 41.77 | 10.92 | 456.05 | 4638 | 0.730 | 2721 | 5.97 | |||
50% | 41.67 | 15.09 | 629.07 | 5175 | 0.918 | 3402 | 5.41 | |||
55% | 41.54 | 20.97 | 871.01 | 5769 | 1.174 | 4282 | 4.92 | |||
60% | 41.45 | 25.77 | 1068.30 | 6209 | 1.314 | 4969 | 4.65 | |||
65% | 41.31 | 32.54 | 1344.19 | 6707 | 1.569 | 5797 | 4.31 | |||
70% | 41.12 | 41.06 | 1688.62 | 7150 | 1.859 | 6344 | 3.76 | |||
75% | 40.94 | 49.54 | 2028.15 | 7554 | 2.124 | 7040 | 3.47 | |||
80% | 40.76 | 58.37 | 2379.15 | 7949 | 2.379 | 7765 | 3.26 | |||
90% | 40.24 | 82.34 | 3313.24 | 8659 | 3.062 | 8817 | 2.66 | |||
100% | 40.14 | 86.09 | 3455.73 | 8775 | 3.161 | 9037 | 2.62 | |||
18*10 | 40% | 43.99 | 7.00 | 307.94 | 3993 | 0.504 | 2015 | 6.54 | / | |
45% | 43.93 | 9.34 | 410.23 | 4450 | 0.626 | 2520 | 6.14 | |||
50% | 43.88 | 12.31 | 540.14 | 4934 | 0.769 | 3104 | 5.75 | |||
55% | 43.74 | 17.92 | 784.05 | 5570 | 0.990 | 3984 | 5.08 | |||
60% | 43.65 | 23.09 | 1007.86 | 6033 | 1.215 | 4558 | 4.52 | |||
65% | 43.55 | 28.07 | 1222.32 | 6440 | 1.411 | 5090 | 4.16 | |||
70% | 43.42 | 34.50 | 1497.91 | 6882 | 1.628 | 5830 | 3.89 | |||
75% | 43.26 | 42.65 | 1844.98 | 7350 | 1.880 | 6674 | 3.62 | |||
80% | 43.12 | 50.14 | 2161.86 | 7756 | 2.103 | 7392 | 3.42 | |||
90% | 42.70 | 70.56 | 3013.03 | 8461 | 2.660 | 8268 | 2.74 | |||
100% | 42.28 | 91.76 | 3879.71 | 9113 | 3.149 | 9570 | 2.47 | |||
18*10 | 40% | 47.61 | 7.86 | 374.23 | 4301 | 0.582 | 2347 | 6.27 | 102 (Ambient Temperature: /) |
|
45% | 47.55 | 10.34 | 491.65 | 4777 | 0.724 | 2893 | 5.89 | |||
50% | 47.46 | 14.05 | 666.98 | 5307 | 0.896 | 3586 | 5.38 | |||
55% | 47.34 | 20.34 | 962.73 | 5942 | 1.163 | 4455 | 4.63 | |||
60% | 47.22 | 26.29 | 1241.45 | 6457 | 1.423 | 5157 | 4.15 | |||
65% | 47.11 | 32.06 | 1510.05 | 6888 | 1.637 | 5842 | 3.87 | |||
70% | 46.97 | 39.37 | 1848.91 | 7369 | 1.886 | 6691 | 3.62 | |||
75% | 46.78 | 48.87 | 2286.20 | 7855 | 2.184 | 7644 | 3.34 | |||
80% | 46.58 | 59.46 | 2769.41 | 8232 | 2.523 | 7992 | 2.89 | |||
90% | 46.10 | 82.27 | 3793.00 | 8987 | 3.124 | 9486 | 2.50 | |||
100% | 45.61 | 105.95 | 4832.76 | 9660 | 3.648 | 10835 | 2.24 | |||
19*10 | 40% | 30.02 | 5.56 | 167.04 | 3037 | 0.364 | 1343 | 8.04 | / | |
45% | 29.96 | 7.93 | 237.48 | 3453 | 0.461 | 1735 | 7.31 | |||
50% | 29.91 | 10.57 | 316.06 | 3856 | 0.572 | 2169 | 6.86 | |||
55% | 29.85 | 13.32 | 397.41 | 4192 | 0.673 | 2588 | 6.52 | |||
60% | 29.78 | 16.28 | 484.90 | 4523 | 0.781 | 3019 | 6.23 | |||
65% | 29.70 | 20.48 | 608.15 | 4890 | 0.917 | 3560 | 5.85 | |||
70% | 29.58 | 25.75 | 761.79 | 5281 | 1.080 | 4167 | 5.47 | |||
75% | 29.46 | 31.75 | 935.15 | 5653 | 1.256 | 4813 | 5.15 | |||
80% | 29.34 | 37.38 | 1096.73 | 5969 | 1.409 | 5392 | 4.92 | |||
90% | 29.06 | 50.51 | 1467.90 | 6566 | 1.744 | 6559 | 4.47 | |||
100% | 29.01 | 52.79 | 1531.50 | 6661 | 1.802 | 6750 | 4.41 | |||
19*10 | 40% | 33.30 | 6.35 | 211.62 | 3332 | 0.406 | 1611 | 7.62 | 54 (Ambient Temperature: /) |
|
45% | 33.24 | 8.96 | 297.74 | 3771 | 0.524 | 2087 | 7.01 | |||
50% | 33.18 | 12.23 | 405.85 | 4208 | 0.651 | 2613 | 6.44 | |||
55% | 33.10 | 15.64 | 517.67 | 4589 | 0.777 | 3133 | 6.05 | |||
60% | 33.02 | 18.94 | 625.47 | 4930 | 0.915 | 3621 | 5.79 | |||
65% | 32.92 | 23.78 | 782.80 | 5348 | 1.089 | 4262 | 5.45 | |||
70% | 32.75 | 31.64 | 1036.33 | 5840 | 1.318 | 5114 | 4.93 | |||
75% | 32.63 | 37.45 | 1222.02 | 6183 | 1.492 | 5760 | 4.71 | |||
80% | 32.50 | 44.11 | 1433.33 | 6516 | 1.681 | 6436 | 4.49 | |||
90% | 32.16 | 59.75 | 1921.70 | 7143 | 2.113 | 7842 | 4.08 | |||
100% | 32.10 | 62.45 | 2004.76 | 7248 | 2.184 | 8041 | 4.01 | |||
19*10 | 40% | 37.00 | 7.40 | 273.79 | 3658 | 0.486 | 1948 | 7.12 | / | |
45% | 36.93 | 10.27 | 379.20 | 4120 | 0.629 | 2518 | 6.64 | |||
50% | 36.84 | 14.26 | 525.52 | 4600 | 0.795 | 3157 | 6.01 | |||
55% | 36.77 | 17.98 | 661.26 | 5010 | 0.956 | 3759 | 5.68 | |||
60% | 36.64 | 24.24 | 888.21 | 5528 | 1.186 | 4599 | 5.18 | |||
65% | 36.49 | 30.52 | 1113.70 | 5964 | 1.392 | 5368 | 4.82 | |||
70% | 36.35 | 37.40 | 1359.62 | 6386 | 1.629 | 6188 | 4.55 | |||
75% | 36.20 | 44.44 | 1608.74 | 6748 | 1.850 | 6950 | 4.32 | |||
80% | 36.04 | 52.24 | 1882.53 | 7102 | 2.079 | 7726 | 4.10 | |||
90% | 35.63 | 71.46 | 2545.65 | 7768 | 2.579 | 9385 | 3.69 | |||
100% | 35.55 | 74.97 | 2664.69 | 7871 | 2.666 | 9647 | 3.62 | |||
19*10 | 40% | 41.89 | 8.79 | 368.04 | 4076 | 0.660 | 2455 | 6.67 | 83 (Ambient Temperature: /) |
|
45% | 41.83 | 12.07 | 505.00 | 4585 | 0.824 | 3130 | 6.20 | |||
50% | 41.70 | 17.43 | 726.73 | 5112 | 1.015 | 3907 | 5.38 | |||
55% | 41.57 | 23.82 | 990.34 | 5706 | 1.285 | 4923 | 4.97 | |||
60% | 41.45 | 29.40 | 1218.66 | 6148 | 1.517 | 5716 | 4.69 | |||
65% | 41.30 | 36.78 | 1519.01 | 6626 | 1.802 | 6667 | 4.39 | |||
70% | 41.11 | 45.43 | 1867.76 | 7072 | 2.075 | 7603 | 4.07 | |||
75% | 40.93 | 54.28 | 2221.67 | 7471 | 2.344 | 8527 | 3.84 | |||
80% | 40.71 | 64.61 | 2630.00 | 7843 | 2.657 | 9541 | 3.63 | |||
90% | 40.16 | 90.00 | 3614.52 | 8525 | 3.421 | 10850 | 3.00 | |||
100% | 40.03 | 95.30 | 3814.64 | 8608 | 3.570 | 11060 | 2.90 | |||
20*10 | 40% | 29.90 | 6.16 | 184.06 | 2998 | 0.407 | 1537 | 8.35 | / | |
45% | 29.86 | 8.62 | 257.51 | 3407 | 0.523 | 1987 | 7.72 | |||
50% | 29.77 | 11.98 | 356.53 | 3802 | 0.651 | 2497 | 7.01 | |||
55% | 29.72 | 14.81 | 440.11 | 4142 | 0.778 | 2970 | 6.75 | |||
60% | 29.65 | 18.10 | 536.68 | 4464 | 0.902 | 3450 | 6.43 | |||
65% | 29.55 | 22.83 | 674.59 | 4830 | 1.076 | 4054 | 6.01 | |||
70% | 29.43 | 28.57 | 840.65 | 5205 | 1.256 | 4746 | 5.65 | |||
75% | 29.29 | 35.23 | 1031.77 | 5565 | 1.434 | 5431 | 5.26 | |||
80% | 29.16 | 41.33 | 1205.08 | 5870 | 1.610 | 6037 | 5.01 | |||
90% | 28.85 | 55.92 | 1613.41 | 6440 | 2.021 | 7360 | 4.56 | |||
100% | 28.79 | 58.61 | 1687.36 | 6526 | 2.094 | 7601 | 4.50 | |||
20*10 | 40% | 33.18 | 7.02 | 232.98 | 3286 | 0.460 | 1850 | 7.94 | 63 (Ambient Temperature: /) |
|
45% | 33.12 | 9.88 | 327.13 | 3719 | 0.600 | 2392 | 7.31 | |||
50% | 33.04 | 13.41 | 443.15 | 4152 | 0.770 | 2993 | 6.76 | |||
55% | 32.95 | 17.21 | 566.99 | 4535 | 0.920 | 3579 | 6.31 | |||
60% | 32.87 | 21.01 | 690.54 | 4867 | 1.067 | 4140 | 6.00 | |||
65% | 32.74 | 27.05 | 885.64 | 5278 | 1.265 | 4889 | 5.52 | |||
70% | 32.57 | 35.23 | 1147.73 | 5743 | 1.530 | 5817 | 5.07 | |||
75% | 32.43 | 41.83 | 1356.65 | 6073 | 1.737 | 6525 | 4.81 | |||
80% | 32.27 | 49.37 | 1593.39 | 6395 | 1.952 | 7267 | 4.56 | |||
90% | 31.91 | 66.33 | 2116.60 | 6996 | 2.384 | 8804 | 4.16 | |||
100% | 31.83 | 69.76 | 2220.66 | 7086 | 2.474 | 9116 | 4.11 | |||
20*10 | 40% | 36.68 | 6.54 | 239.88 | 3340 | 0.470 | 1899 | 7.92 | / | |
45% | 36.63 | 8.63 | 316.20 | 3718 | 0.580 | 2359 | 7.46 | |||
50% | 36.56 | 11.65 | 426.05 | 4141 | 0.723 | 2939 | 6.90 | |||
55% | 36.48 | 15.52 | 565.99 | 4576 | 0.888 | 3599 | 6.36 | |||
60% | 36.41 | 19.16 | 697.70 | 4933 | 1.040 | 4195 | 6.01 | |||
65% | 36.32 | 23.31 | 846.73 | 5270 | 1.191 | 4813 | 5.69 | |||
70% | 36.14 | 31.45 | 1136.53 | 5772 | 1.445 | 5813 | 5.11 | |||
75% | 35.93 | 38.30 | 1375.97 | 6131 | 1.651 | 6658 | 4.84 | |||
80% | 35.76 | 44.97 | 1608.22 | 6458 | 1.848 | 7416 | 4.61 | |||
90% | 35.43 | 60.66 | 2149.47 | 7078 | 2.243 | 8984 | 4.18 | |||
100% | 35.11 | 78.26 | 2748.16 | 7626 | 2.662 | 10560 | 3.84 | |||
20*10 | 40% | 41.61 | 7.78 | 323.73 | 3708 | 0.586 | 2366 | 7.31 | 94 (Ambient Temperature: /) |
|
45% | 41.54 | 10.33 | 429.13 | 4123 | 0.732 | 2940 | 6.85 | |||
50% | 41.47 | 13.98 | 579.51 | 4581 | 0.900 | 3625 | 6.26 | |||
55% | 41.35 | 19.09 | 789.10 | 5059 | 1.096 | 4423 | 5.61 | |||
60% | 41.22 | 25.67 | 1058.16 | 5600 | 1.360 | 5468 | 5.17 | |||
65% | 41.11 | 31.22 | 1283.48 | 5979 | 1.565 | 6296 | 4.91 | |||
70% | 40.91 | 38.23 | 1564.16 | 6388 | 1.804 | 7247 | 4.63 | |||
75% | 40.70 | 46.80 | 1904.86 | 6796 | 2.068 | 8236 | 4.32 | |||
80% | 40.51 | 54.90 | 2224.03 | 7132 | 2.295 | 9170 | 4.12 | |||
90% | 40.13 | 74.50 | 2990.04 | 7809 | 2.803 | 11017 | 3.68 | |||
100% | 39.71 | 96.51 | 3831.99 | 8387 | 3.299 | 12745 | 3.33 | |||
21*10 | 40% | 29.94 | 7.03 | 210.53 | 2959 | 0.506 | 1864 | 8.86 | / | |
45% | 29.87 | 10.07 | 300.93 | 3362 | 0.674 | 2412 | 8.02 | |||
50% | 29.79 | 13.81 | 411.35 | 3747 | 0.854 | 3004 | 7.31 | |||
55% | 29.71 | 17.70 | 525.93 | 4084 | 1.019 | 3603 | 6.85 | |||
60% | 29.63 | 21.58 | 639.36 | 4398 | 1.185 | 4170 | 6.52 | |||
65% | 29.51 | 27.36 | 807.45 | 4747 | 1.367 | 4883 | 6.05 | |||
70% | 29.35 | 34.63 | 1016.60 | 5109 | 1.586 | 5660 | 5.57 | |||
75% | 29.21 | 41.61 | 1215.49 | 5433 | 1.808 | 6415 | 5.28 | |||
80% | 29.04 | 49.77 | 1445.12 | 5730 | 2.043 | 7184 | 4.97 | |||
90% | 28.68 | 66.70 | 1912.94 | 6267 | 2.508 | 8620 | 4.51 | |||
100% | 28.60 | 69.91 | 1999.91 | 6343 | 2.593 | 8911 | 4.46 | |||
21*10 | 40% | 33.18 | 8.13 | 269.92 | 3236 | 0.567 | 2210 | 8.19 | 71 (Ambient Temperature: /) |
|
45% | 33.10 | 11.79 | 390.28 | 3662 | 0.757 | 2867 | 7.35 | |||
50% | 33.03 | 15.73 | 519.42 | 4080 | 0.947 | 3582 | 6.90 | |||
55% | 32.93 | 20.39 | 671.49 | 4462 | 1.155 | 4266 | 6.35 | |||
60% | 32.83 | 25.14 | 825.14 | 4786 | 1.342 | 4941 | 5.99 | |||
65% | 32.68 | 32.12 | 1049.62 | 5174 | 1.607 | 5826 | 5.55 | |||
70% | 32.47 | 42.07 | 1365.93 | 5614 | 1.933 | 6897 | 5.05 | |||
75% | 32.31 | 49.79 | 1608.72 | 5924 | 2.181 | 7710 | 4.79 | |||
80% | 32.12 | 58.67 | 1884.23 | 6225 | 2.429 | 8552 | 4.54 | |||
90% | 31.70 | 78.55 | 2489.66 | 6785 | 2.926 | 10240 | 4.11 | |||
100% | 31.59 | 82.89 | 2618.52 | 6860 | 3.034 | 10597 | 4.05 | |||
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.) |
Вес: | 555 г |
Диаметр вала: | 10 мм |
Диаметр мотора: | 81.4 мм |
Длина мотора: | 57.9 мм |
KV: | 245 |
Максимальная тяга: | 12.7 кг |
Пиковая мощность: | 5000 Вт |
Пиковый ток: | 110 А |
Производитель: | T-Motor |
Пропеллер: | 18" , 19" , 20" , 21" |
Рекомендованная батарея: | 8-10S |
Сопротивление: | 20 мОм |
Ток холостого хода: | 2.4 А |
