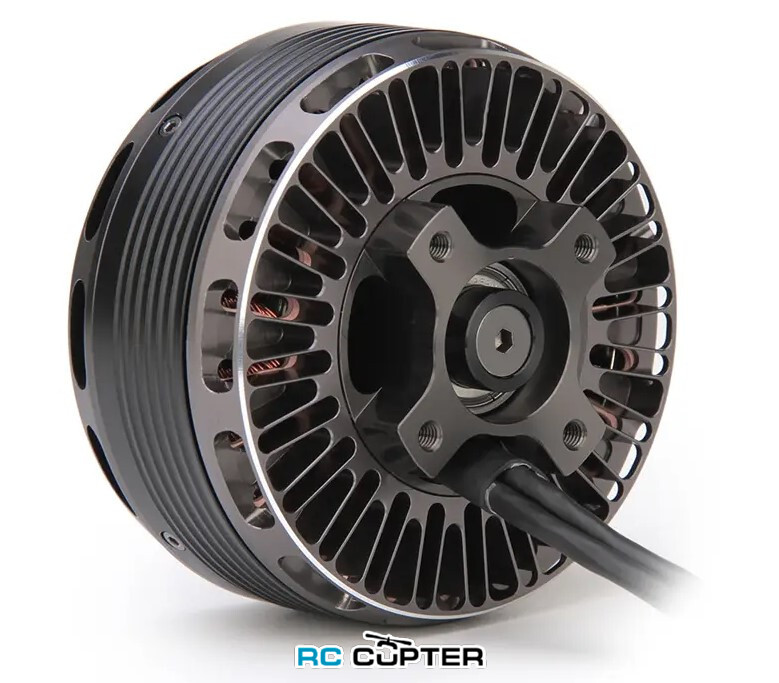

T-Motor AT7215 220KV 30CC - это мотор (длинный вал, бесщеточный двигатель) для авиамодели с фиксированным крылом, VTOL, БПЛА, Fixed Wing.

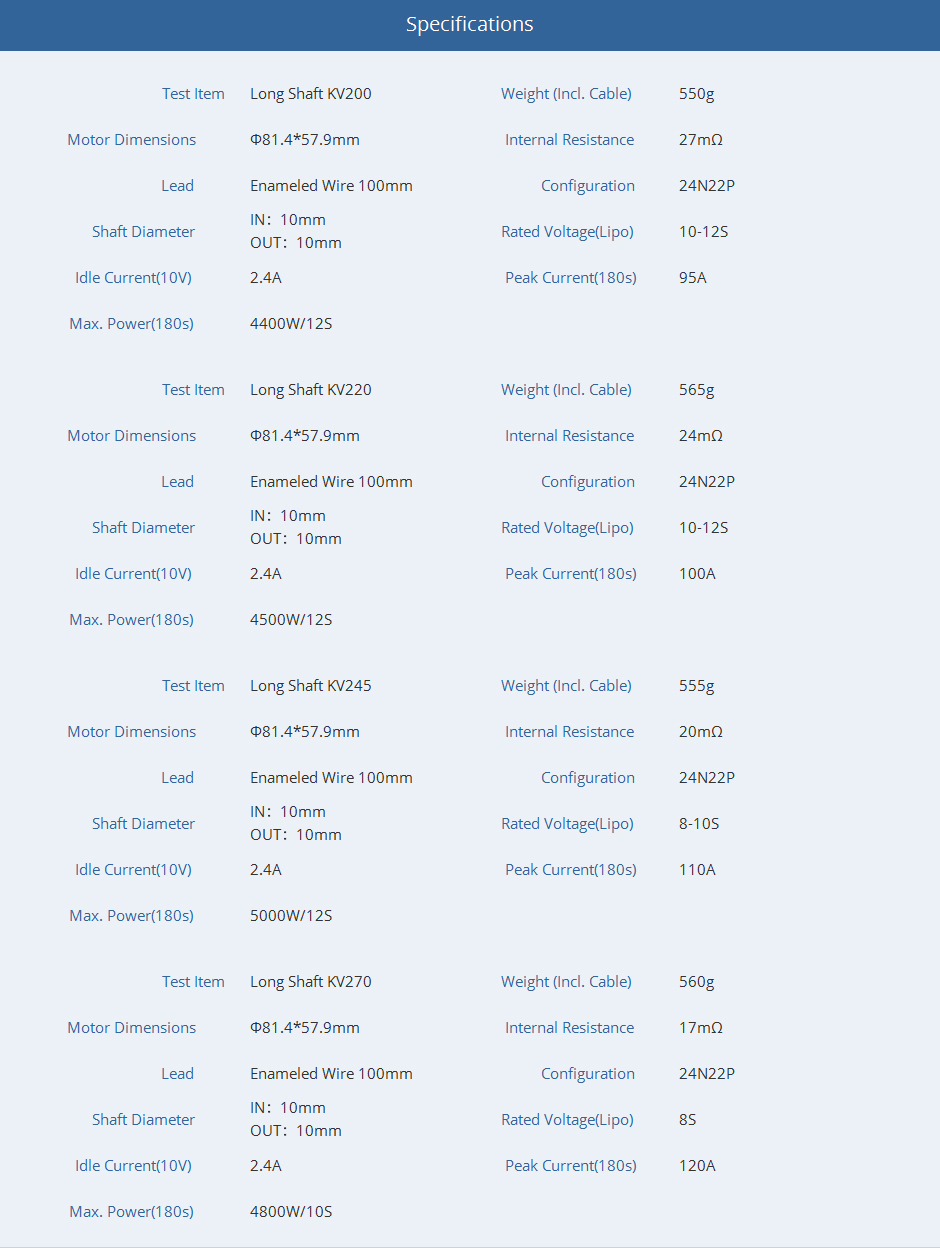

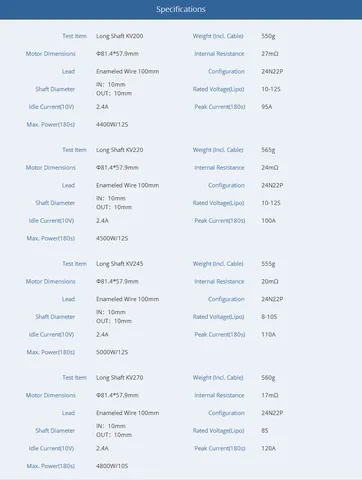

название | Long Shaft KV220 | Вес (включ. провода) | 565g |

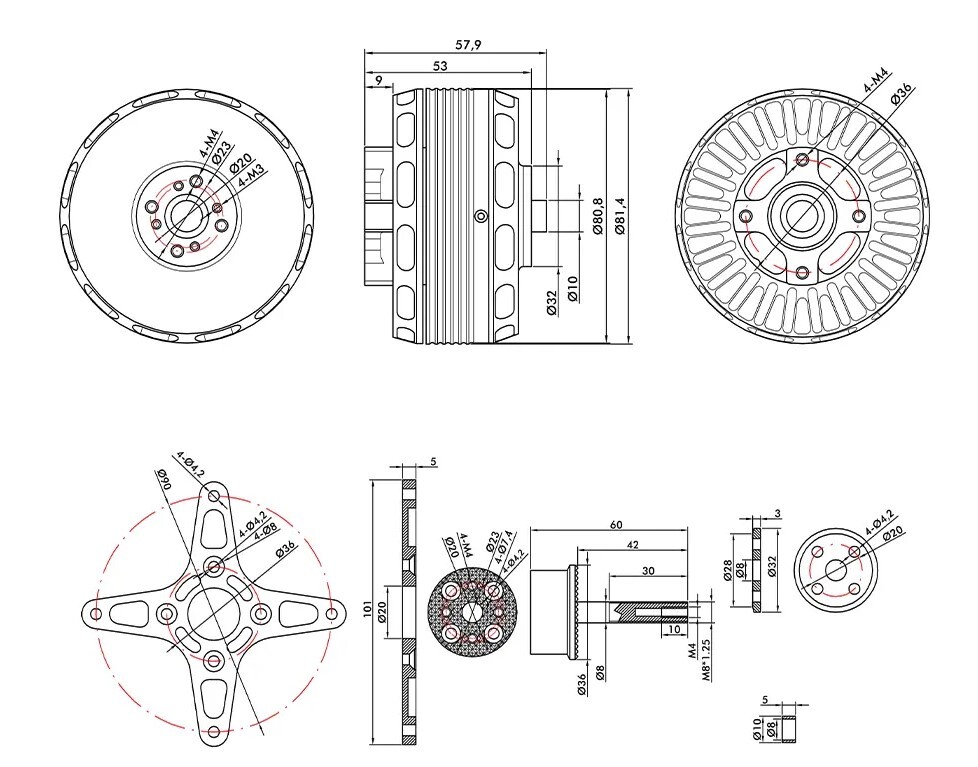

размеры мотора | Φ81.4*57.9mm | Внутренне сопротивление | 24mΩ |

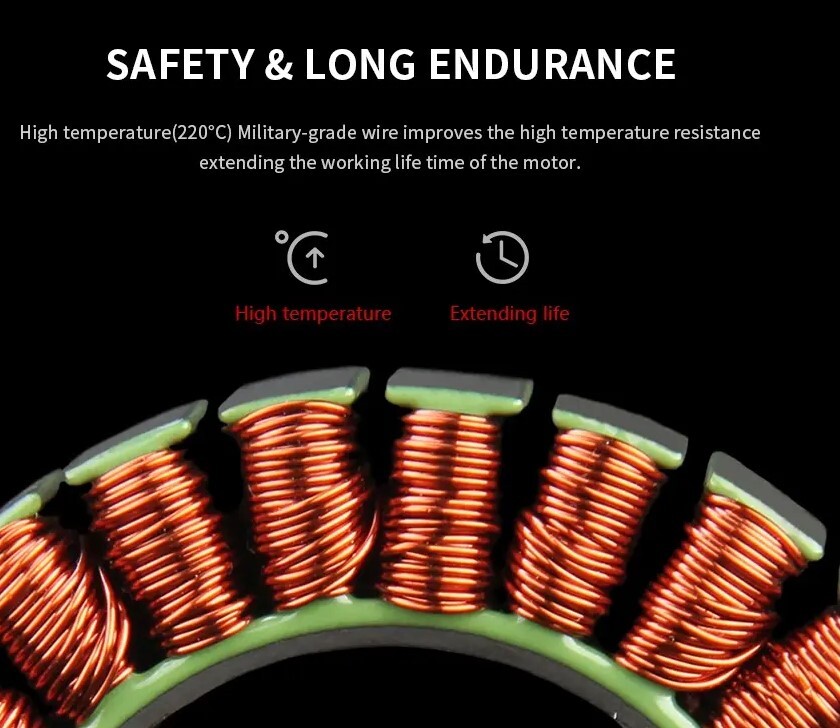

провод | Enameled Wire 100mm | Конфигурация | 24N22P |
диаметр вала | IN:10mm OUT:10mm |
Напряжение(Lipo) | 10-12S |
ток холостого хода(10 В) | 2.4A | Пиковый ток(180 сек) | 100A |
Макс. мощность (180 сек) | 4500W/12S |
Type | Propeller | Throttle | Voltage (V) |
Current (A) |
Power (W) |
RPM | Torque (N*m) |
Thrust (g) |
Efficiency (g/W) |
Operating Temperature (℃) |
AT7215 KV220 |
19*10 | 40% | 43.93 | 6.27 | 275.62 | 3667 | 0.492 | 1956 | 7.10 | 89 (Ambient Temperature: /) |
45% | 43.88 | 8.37 | 367.29 | 4086 | 0.612 | 2469 | 6.72 | |||
50% | 43.82 | 11.23 | 492.26 | 4542 | 0.769 | 3066 | 6.23 | |||
55% | 43.72 | 15.46 | 675.76 | 5037 | 0.948 | 3795 | 5.62 | |||
60% | 43.62 | 20.91 | 911.80 | 5583 | 1.173 | 4709 | 5.16 | |||
65% | 43.50 | 25.56 | 1111.85 | 5972 | 1.349 | 5408 | 4.86 | |||
70% | 43.39 | 31.66 | 1373.76 | 6408 | 1.579 | 6277 | 4.57 | |||
75% | 43.25 | 38.52 | 1665.86 | 6839 | 1.798 | 7139 | 4.29 | |||
80% | 43.11 | 45.43 | 1958.91 | 7206 | 2.019 | 7991 | 4.08 | |||
90% | 42.66 | 62.78 | 2678.19 | 7909 | 2.511 | 9688 | 3.62 | |||
100% | 42.23 | 84.85 | 3582.90 | 8476 | 3.102 | 10729 | 2.99 | |||
19*10 | 40% | 47.54 | 7.13 | 338.88 | 3976 | 0.574 | 2301 | 6.79 | / | |
45% | 47.48 | 9.50 | 451.09 | 4414 | 0.718 | 2879 | 6.38 | |||
50% | 47.40 | 12.85 | 609.30 | 4901 | 0.899 | 3584 | 5.88 | |||
55% | 47.25 | 18.81 | 888.73 | 5513 | 1.144 | 4582 | 5.16 | |||
60% | 47.16 | 23.96 | 1129.80 | 5999 | 1.360 | 5435 | 4.81 | |||
65% | 46.92 | 29.01 | 1361.27 | 6410 | 1.569 | 6257 | 4.60 | |||
70% | 46.78 | 35.26 | 1649.36 | 6840 | 1.806 | 7181 | 4.35 | |||
75% | 46.64 | 43.92 | 2048.81 | 7301 | 2.086 | 8218 | 4.01 | |||
80% | 46.47 | 52.44 | 2436.89 | 7698 | 2.353 | 9185 | 3.77 | |||
90% | 46.04 | 74.62 | 3435.64 | 8381 | 3.016 | 10521 | 3.06 | |||
100% | 45.62 | 98.87 | 4510.54 | 9002 | 3.611 | 11865 | 2.63 | |||
20*10 | 40% | 36.63 | 5.48 | 200.90 | 3130 | 0.417 | 1648 | 8.20 | / | |
45% | 36.58 | 7.23 | 264.33 | 3484 | 0.518 | 2068 | 7.82 | |||
50% | 36.53 | 9.91 | 361.83 | 3904 | 0.651 | 2609 | 7.21 | |||
55% | 36.44 | 13.37 | 487.14 | 4302 | 0.798 | 3207 | 6.58 | |||
60% | 36.36 | 16.56 | 602.21 | 4649 | 0.942 | 3782 | 6.28 | |||
65% | 36.35 | 19.42 | 705.98 | 4965 | 1.074 | 4300 | 6.09 | |||
70% | 36.18 | 24.65 | 892.04 | 5335 | 1.241 | 4998 | 5.60 | |||
75% | 36.02 | 32.28 | 1162.80 | 5803 | 1.482 | 5953 | 5.12 | |||
80% | 35.80 | 37.57 | 1344.80 | 6109 | 1.642 | 6588 | 4.90 | |||
90% | 35.57 | 50.95 | 1812.52 | 6738 | 2.018 | 8054 | 4.44 | |||
100% | 35.27 | 66.48 | 2344.83 | 7277 | 2.405 | 9551 | 4.07 | |||
20*10 | 40% | 41.55 | 6.52 | 270.85 | 3502 | 0.523 | 2091 | 7.72 | 83 (Ambient Temperature: /) |
|
45% | 41.50 | 8.64 | 358.67 | 3887 | 0.650 | 2607 | 7.27 | |||
50% | 41.42 | 11.86 | 491.36 | 4341 | 0.815 | 3279 | 6.67 | |||
55% | 41.30 | 15.88 | 655.99 | 4777 | 0.994 | 3995 | 6.09 | |||
60% | 41.22 | 19.80 | 816.29 | 5168 | 1.167 | 4702 | 5.76 | |||
65% | 40.99 | 25.92 | 1062.24 | 5642 | 1.392 | 5585 | 5.26 | |||
70% | 40.86 | 32.05 | 1309.67 | 6041 | 1.611 | 6459 | 4.93 | |||
75% | 40.72 | 39.64 | 1614.06 | 6446 | 1.855 | 7418 | 4.60 | |||
80% | 40.61 | 46.34 | 1881.77 | 6785 | 2.066 | 8248 | 4.38 | |||
90% | 40.26 | 63.70 | 2564.62 | 7455 | 2.555 | 10122 | 3.95 | |||
100% | 39.89 | 83.10 | 3314.87 | 8027 | 3.031 | 11884 | 3.59 | |||
20*10 | 40% | 43.91 | 7.02 | 308.23 | 3669 | 0.570 | 2279 | 7.40 | 87 (Ambient Temperature: /) |
|
45% | 43.87 | 9.22 | 404.34 | 4071 | 0.710 | 2844 | 7.03 | |||
50% | 43.75 | 12.76 | 558.30 | 4535 | 0.887 | 3565 | 6.39 | |||
55% | 43.64 | 17.56 | 766.54 | 5000 | 1.082 | 4346 | 5.67 | |||
60% | 43.52 | 23.53 | 1024.26 | 5544 | 1.338 | 5367 | 5.24 | |||
65% | 43.31 | 28.33 | 1226.94 | 5913 | 1.530 | 6114 | 4.98 | |||
70% | 43.18 | 35.07 | 1514.33 | 6339 | 1.775 | 7065 | 4.67 | |||
75% | 43.04 | 42.91 | 1846.71 | 6753 | 2.033 | 8106 | 4.39 | |||
80% | 42.90 | 50.75 | 2177.07 | 7107 | 2.279 | 9042 | 4.15 | |||
90% | 42.52 | 69.80 | 2967.96 | 7789 | 2.814 | 11019 | 3.71 | |||
100% | 42.10 | 91.96 | 3871.53 | 8365 | 3.363 | 12900 | 3.33 | |||
20*10 | 40% | 47.54 | 7.87 | 373.90 | 3926 | 0.659 | 2626 | 7.02 | / | |
45% | 47.48 | 10.47 | 496.90 | 4344 | 0.809 | 3261 | 6.56 | |||
50% | 47.40 | 14.16 | 671.27 | 4820 | 1.008 | 4054 | 6.04 | |||
55% | 47.19 | 20.06 | 946.89 | 5358 | 1.249 | 5025 | 5.31 | |||
60% | 46.98 | 26.61 | 1250.14 | 5900 | 1.536 | 6179 | 4.94 | |||
65% | 46.82 | 32.71 | 1531.71 | 6320 | 1.775 | 7102 | 4.64 | |||
70% | 46.72 | 39.99 | 1868.31 | 6759 | 2.049 | 8184 | 4.38 | |||
75% | 46.56 | 49.17 | 2289.33 | 7188 | 2.351 | 9348 | 4.08 | |||
80% | 46.36 | 59.21 | 2745.12 | 7570 | 2.655 | 10505 | 3.83 | |||
90% | 45.96 | 80.46 | 3697.56 | 8264 | 3.239 | 12511 | 3.38 | |||
100% | 45.48 | 106.60 | 4848.68 | 8859 | 3.872 | 14307 | 2.95 | |||
21*10 | 40% | 36.58 | 6.27 | 229.40 | 3085 | 0.500 | 1925 | 8.39 | 84 (Ambient Temperature: /) |
|
45% | 36.52 | 8.34 | 304.46 | 3427 | 0.624 | 2416 | 7.94 | |||
50% | 36.43 | 11.87 | 432.36 | 3839 | 0.793 | 3076 | 7.11 | |||
55% | 36.35 | 15.49 | 563.21 | 4224 | 0.966 | 3743 | 6.65 | |||
60% | 36.26 | 19.70 | 714.16 | 4576 | 1.140 | 4422 | 6.19 | |||
65% | 36.15 | 23.55 | 851.35 | 4881 | 1.294 | 5030 | 5.91 | |||
70% | 35.94 | 29.26 | 1051.67 | 5228 | 1.505 | 5849 | 5.56 | |||
75% | 35.76 | 38.20 | 1365.89 | 5665 | 1.781 | 6923 | 5.07 | |||
80% | 35.62 | 45.04 | 1604.00 | 5958 | 1.995 | 7740 | 4.83 | |||
90% | 35.32 | 61.32 | 2165.99 | 6541 | 2.442 | 9407 | 4.34 | |||
100% | 34.98 | 78.82 | 2756.77 | 7040 | 2.857 | 10944 | 3.97 | |||
21*10 | 40% | 41.53 | 7.47 | 310.30 | 3442 | 0.622 | 2419 | 7.80 | / | |
45% | 41.46 | 9.94 | 412.31 | 3822 | 0.778 | 3025 | 7.34 | |||
50% | 41.30 | 13.73 | 567.18 | 4247 | 0.970 | 3763 | 6.63 | |||
55% | 41.13 | 18.57 | 763.90 | 4678 | 1.192 | 4635 | 6.07 | |||
60% | 41.01 | 23.67 | 970.90 | 5063 | 1.409 | 5465 | 5.63 | |||
65% | 40.85 | 31.16 | 1272.87 | 5534 | 1.688 | 6568 | 5.16 | |||
70% | 40.76 | 38.06 | 1551.35 | 5916 | 1.941 | 7540 | 4.86 | |||
75% | 40.55 | 46.97 | 1904.43 | 6293 | 2.223 | 8605 | 4.52 | |||
80% | 40.40 | 55.28 | 2233.35 | 6608 | 2.479 | 9542 | 4.27 | |||
90% | 40.03 | 75.93 | 3039.83 | 7216 | 3.042 | 11585 | 3.81 | |||
100% | 39.59 | 99.67 | 3945.57 | 7726 | 3.615 | 13551 | 3.43 | |||
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.) |
Вес: | 565 г |
Диаметр вала: | 10 мм |
Диаметр мотора: | 81.4 мм |
Длина мотора: | 57.9 мм |
KV: | 220 |
Максимальная тяга: | 14.3 кг |
Пиковая мощность: | 4500 Вт |
Пиковый ток: | 100 А |
Производитель: | T-Motor |
Пропеллер: | 19" , 20" , 21" |
Рекомендованная батарея: | 10-12S |
Сопротивление: | 24 мОм |
Ток холостого хода: | 2.4 А |
