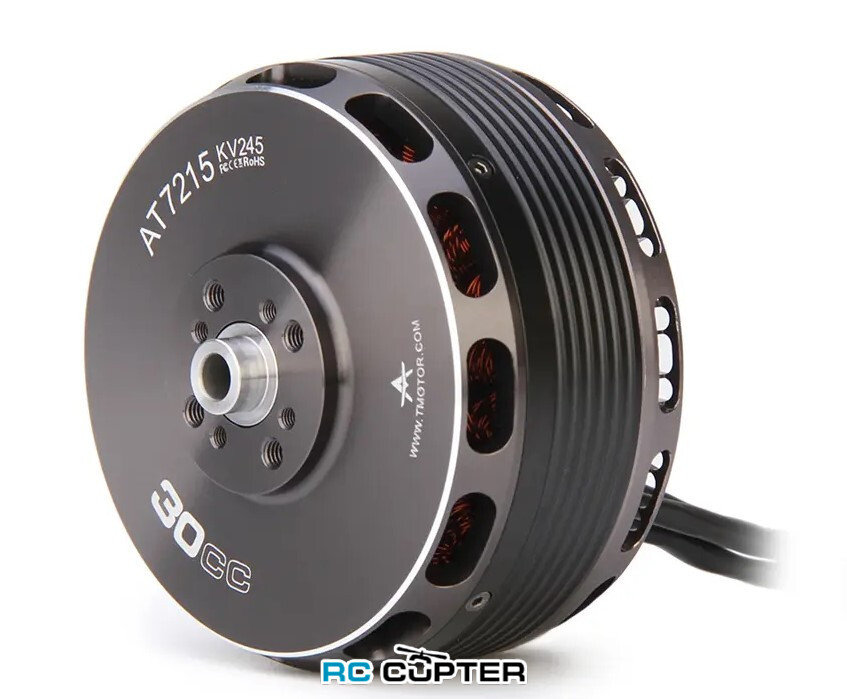

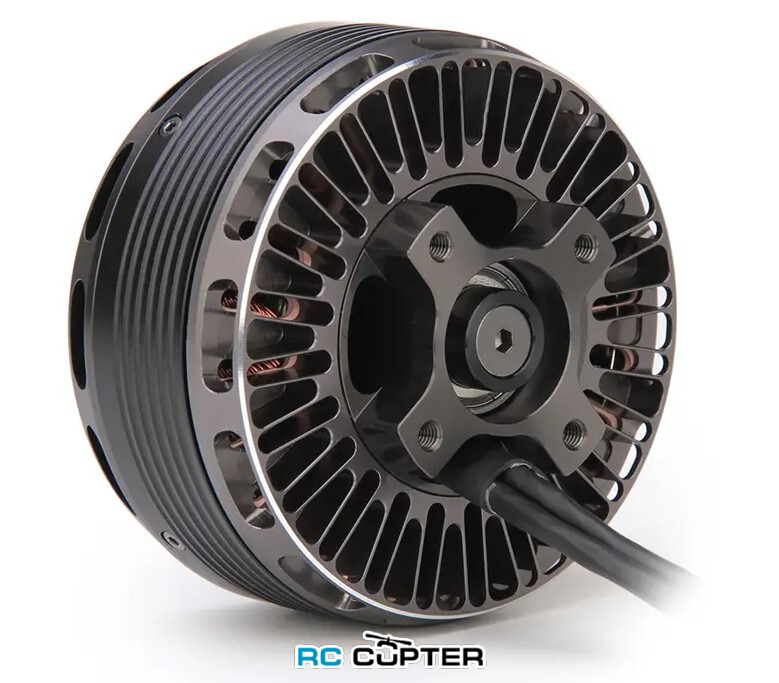

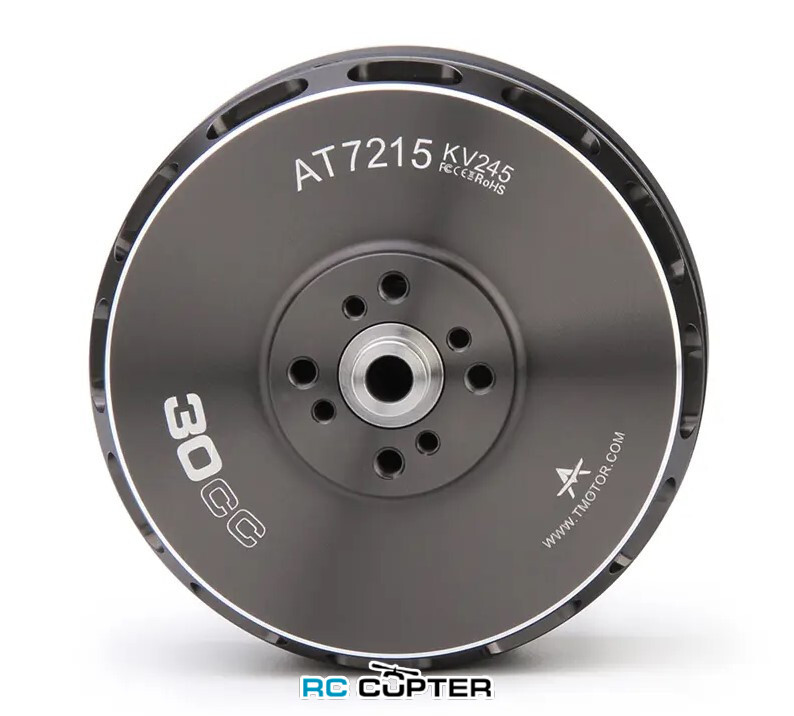

T-Motor AT7215 30CC KV200 - это мотор (длинный вал, бесщеточный двигатель) для авиамодели с фиксированным крылом, VTOL, БПЛА, Fixed Wing.

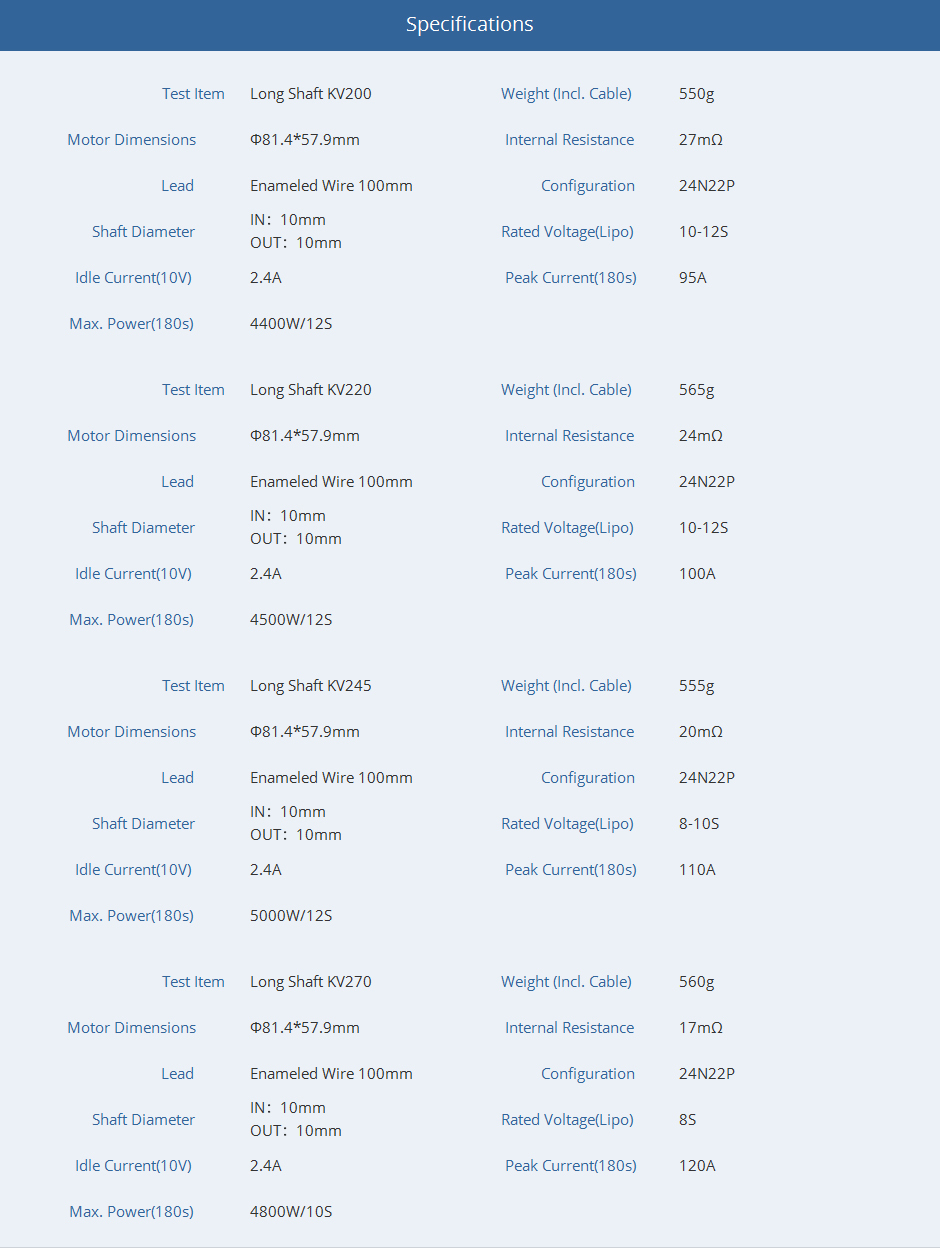

название | Long Shaft KV200 | Вес (включ. провода) | 550g |

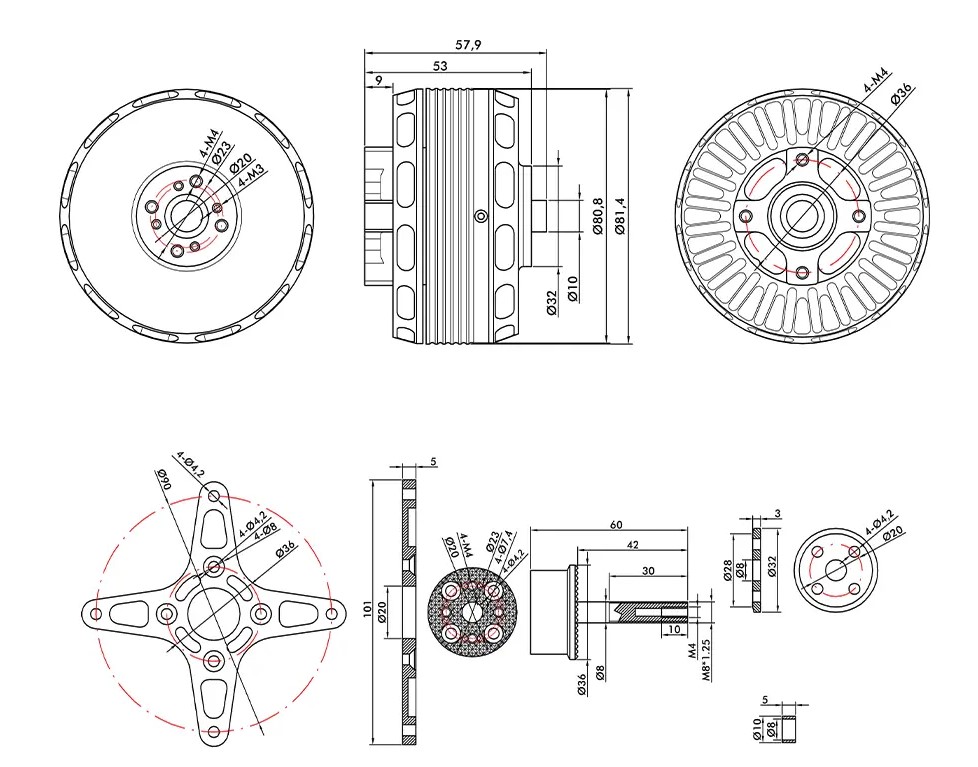

размеры мотора | Φ81.4*57.9mm | Внутренне сопротивление | 27mΩ |

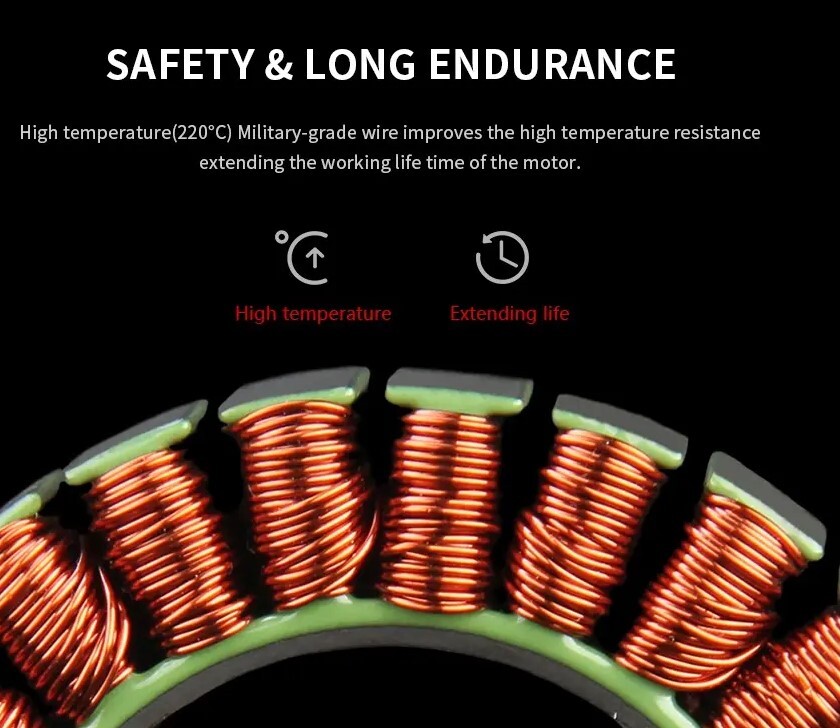

провод | Enameled Wire 100mm | Конфигурация | 24N22P |
диаметр вала | IN:10mm OUT:10mm |
Напряжение(Lipo) | 10-12S |
ток холостого хода(10 В) | 2.4A | Пиковый ток(180 сек) | 95A |
Макс. мощность (180 сек) | 4400W/12S |
Type | Propeller | Throttle | Voltage (V) |
Current (A) |
Power (W) |
RPM | Torque (N*m) |
Thrust (g) |
Efficiency (g/W) |
Operating Temperature (℃) |
AT7215 KV200 |
19*10 | 40% | 44.25 | 5.64 | 249.81 | 3494 | 0.532 | 1833 | 7.34 | / |
45% | 44.22 | 7.41 | 327.75 | 3890 | 0.650 | 2312 | 7.05 | |||
50% | 44.15 | 10.26 | 453.08 | 4356 | 0.795 | 2878 | 6.35 | |||
55% | 44.08 | 13.28 | 585.57 | 4813 | 0.946 | 3477 | 5.94 | |||
60% | 44.02 | 16.59 | 730.16 | 5206 | 1.110 | 4086 | 5.60 | |||
65% | 43.91 | 21.80 | 957.40 | 5698 | 1.337 | 4903 | 5.12 | |||
70% | 43.79 | 27.16 | 1189.47 | 6128 | 1.562 | 5710 | 4.80 | |||
75% | 43.66 | 33.60 | 1466.85 | 6547 | 1.821 | 6582 | 4.49 | |||
80% | 43.53 | 39.60 | 1723.40 | 6882 | 2.050 | 7366 | 4.27 | |||
90% | 43.23 | 53.83 | 2327.01 | 7599 | 2.537 | 8911 | 3.83 | |||
100% | 42.84 | 71.55 | 3065.09 | 8208 | 3.126 | 10555 | 3.44 | |||
19*10 | 40% | 47.85 | 6.24 | 298.61 | 3754 | 0.628 | 2144 | 7.18 | 97 (Ambient Temperature: /) |
|
45% | 47.81 | 8.24 | 394.17 | 4168 | 0.745 | 2664 | 6.76 | |||
50% | 47.74 | 11.29 | 538.84 | 4655 | 0.896 | 3309 | 6.14 | |||
55% | 47.65 | 15.05 | 717.02 | 5130 | 1.070 | 4028 | 5.62 | |||
60% | 47.54 | 20.64 | 981.02 | 5702 | 1.326 | 4961 | 5.06 | |||
65% | 47.44 | 24.88 | 1180.30 | 6099 | 1.540 | 5646 | 4.78 | |||
70% | 47.31 | 31.04 | 1468.57 | 6539 | 1.845 | 6599 | 4.49 | |||
75% | 47.16 | 38.37 | 1809.84 | 6967 | 2.164 | 7656 | 4.23 | |||
80% | 47.01 | 45.66 | 2146.37 | 7338 | 2.450 | 8595 | 4.00 | |||
90% | 46.64 | 63.09 | 2942.14 | 8077 | 3.018 | 10449 | 3.55 | |||
100% | 46.17 | 84.64 | 3907.52 | 8681 | 3.758 | 11572 | 2.96 | |||
20*10 | 40% | 36.92 | 4.81 | 177.64 | 2959 | 0.453 | 1561 | 8.79 | / | |
45% | 36.89 | 6.29 | 231.88 | 3295 | 0.549 | 1932 | 8.33 | |||
50% | 36.83 | 8.69 | 319.91 | 3712 | 0.676 | 2434 | 7.61 | |||
55% | 36.78 | 11.26 | 414.10 | 4096 | 0.794 | 2926 | 7.07 | |||
60% | 36.72 | 14.08 | 517.13 | 4437 | 0.917 | 3411 | 6.60 | |||
65% | 36.65 | 16.99 | 622.72 | 4739 | 1.046 | 3919 | 6.29 | |||
70% | 36.57 | 21.17 | 773.99 | 5108 | 1.221 | 4533 | 5.86 | |||
75% | 36.44 | 27.50 | 1002.10 | 5548 | 1.465 | 5452 | 5.44 | |||
80% | 36.32 | 32.85 | 1192.97 | 5848 | 1.677 | 6155 | 5.16 | |||
90% | 36.06 | 44.99 | 1622.41 | 6452 | 2.089 | 7553 | 4.66 | |||
100% | 35.78 | 58.37 | 2088.34 | 6984 | 2.483 | 8906 | 4.26 | |||
20*10 | 40% | 41.86 | 5.71 | 239.01 | 3308 | 0.544 | 1730 | 8.03 | 83 (Ambient Temperature: /) |
|
45% | 41.81 | 7.58 | 316.78 | 3679 | 0.654 | 2387 | 7.54 | |||
50% | 41.75 | 10.44 | 435.94 | 4124 | 0.807 | 3008 | 6.90 | |||
55% | 41.69 | 13.63 | 568.04 | 4544 | 0.967 | 3649 | 6.43 | |||
60% | 41.60 | 17.16 | 713.87 | 4917 | 1.121 | 4278 | 5.99 | |||
65% | 41.54 | 20.64 | 857.26 | 5262 | 1.298 | 4954 | 5.78 | |||
70% | 41.37 | 28.11 | 1162.88 | 5778 | 1.597 | 5987 | 5.15 | |||
75% | 41.24 | 34.52 | 1423.40 | 6165 | 1.847 | 6856 | 4.82 | |||
80% | 41.10 | 41.04 | 1686.80 | 6491 | 2.095 | 7725 | 4.58 | |||
90% | 40.78 | 56.18 | 2291.12 | 7147 | 2.593 | 9423 | 4.11 | |||
100% | 40.42 | 72.81 | 2943.12 | 7726 | 3.082 | 11037 | 3.75 | |||
20*10 | 40% | 44.27 | 6.15 | 272.19 | 3468 | 0.617 | 2145 | 7.88 | / | |
45% | 44.23 | 8.16 | 360.87 | 3862 | 0.744 | 2677 | 7.42 | |||
50% | 44.16 | 11.30 | 499.16 | 4322 | 0.910 | 3363 | 6.74 | |||
55% | 44.06 | 15.29 | 673.65 | 4748 | 1.083 | 4093 | 6.08 | |||
60% | 43.99 | 18.76 | 825.33 | 5157 | 1.253 | 4769 | 5.78 | |||
65% | 43.86 | 25.02 | 1097.33 | 5641 | 1.535 | 5773 | 5.26 | |||
70% | 43.74 | 30.86 | 1349.86 | 6051 | 1.813 | 6646 | 4.93 | |||
75% | 43.59 | 37.90 | 1652.12 | 6466 | 2.108 | 7630 | 4.62 | |||
80% | 43.45 | 44.57 | 1936.48 | 6803 | 2.350 | 8479 | 4.38 | |||
90% | 43.08 | 61.70 | 2658.50 | 7474 | 2.901 | 10381 | 3.90 | |||
100% | 42.67 | 80.63 | 3440.97 | 8063 | 3.439 | 12188 | 3.54 | |||
20*10 | 40% | 47.89 | 6.97 | 333.95 | 3713 | 0.692 | 2464 | 7.38 | 115 (Ambient Temperature: /) |
|
45% | 47.85 | 9.16 | 438.13 | 4124 | 0.834 | 3066 | 7.00 | |||
50% | 47.77 | 12.53 | 598.59 | 4602 | 1.024 | 3842 | 6.42 | |||
55% | 47.69 | 16.62 | 792.70 | 5082 | 1.227 | 4629 | 5.84 | |||
60% | 47.54 | 23.11 | 1098.68 | 5647 | 1.527 | 5721 | 5.21 | |||
65% | 47.44 | 28.18 | 1336.89 | 6031 | 1.785 | 6549 | 4.90 | |||
70% | 47.30 | 34.76 | 1644.07 | 6468 | 2.095 | 7535 | 4.58 | |||
75% | 47.12 | 43.28 | 2039.31 | 6884 | 2.431 | 8706 | 4.27 | |||
80% | 46.95 | 51.19 | 2403.45 | 7247 | 2.714 | 9693 | 4.03 | |||
90% | 46.52 | 71.10 | 3307.89 | 7946 | 3.354 | 11886 | 3.59 | |||
100% | 46.02 | 93.67 | 4310.69 | 8522 | 3.978 | 13850 | 3.21 | |||
21*10 | 40% | 36.93 | 5.36 | 198.12 | 2917 | 0.528 | 1822 | 9.20 | / | |
45% | 36.88 | 7.22 | 266.16 | 3244 | 0.655 | 2286 | 8.59 | |||
50% | 36.82 | 10.16 | 374.05 | 3654 | 0.856 | 2920 | 7.81 | |||
55% | 36.75 | 13.47 | 495.18 | 4025 | 1.031 | 3542 | 7.16 | |||
60% | 36.67 | 17.10 | 626.99 | 4360 | 1.221 | 4198 | 6.70 | |||
65% | 36.59 | 20.60 | 753.95 | 4664 | 1.361 | 4762 | 6.32 | |||
70% | 36.48 | 25.92 | 945.36 | 5010 | 1.561 | 5492 | 5.81 | |||
75% | 36.36 | 31.98 | 1162.81 | 5380 | 1.810 | 6361 | 5.47 | |||
80% | 36.20 | 39.17 | 1418.05 | 5722 | 2.072 | 7214 | 5.09 | |||
90% | 35.89 | 53.72 | 1928.39 | 6296 | 2.607 | 8808 | 4.57 | |||
100% | 35.54 | 70.32 | 2499.01 | 6784 | 3.102 | 10457 | 4.18 | |||
21*10 | 40% | 41.86 | 6.55 | 274.18 | 3247 | 0.621 | 2290 | 8.35 | 121 (Ambient Temperature: /) |
|
45% | 41.81 | 8.77 | 366.60 | 3613 | 0.754 | 2847 | 7.77 | |||
50% | 41.74 | 12.04 | 502.43 | 4054 | 0.930 | 3561 | 7.09 | |||
55% | 41.66 | 16.10 | 670.60 | 4466 | 1.156 | 4341 | 6.48 | |||
60% | 41.56 | 20.57 | 854.77 | 4845 | 1.378 | 5126 | 6.00 | |||
65% | 41.46 | 24.84 | 1029.64 | 5168 | 1.585 | 5836 | 5.67 | |||
70% | 41.28 | 33.57 | 1385.77 | 5658 | 1.981 | 7058 | 5.09 | |||
75% | 41.12 | 41.07 | 1688.61 | 6026 | 2.284 | 8047 | 4.77 | |||
80% | 40.96 | 48.72 | 1995.51 | 6332 | 2.568 | 8992 | 4.51 | |||
90% | 40.57 | 67.08 | 2721.25 | 6930 | 3.167 | 10998 | 4.04 | |||
100% | 40.12 | 87.84 | 3523.62 | 7450 | 3.739 | 12869 | 3.65 | |||
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.) |
Вес: | 550 г |
Диаметр вала: | 10 мм |
Диаметр мотора: | 81.4 мм |
Длина мотора: | 57.9 мм |
KV: | 200 |
Максимальная тяга: | 13.8 кг |
Пиковая мощность: | 4400 Вт |
Пиковый ток: | 95 А |
Производитель: | T-Motor |
Пропеллер: | 19" , 20" , 21" |
Рекомендованная батарея: | 10-12S |
Сопротивление: | 27 мОм |
Ток холостого хода: | 2.4 А |
