T-Motor AT3520 KV550 Long Shaft / Fixed Wing

Артикул: 34863

нет в наличии
под заказ, пишите

Описание
Характеристики
Сопутствующие товары
Аналоги
Отзывы (0)

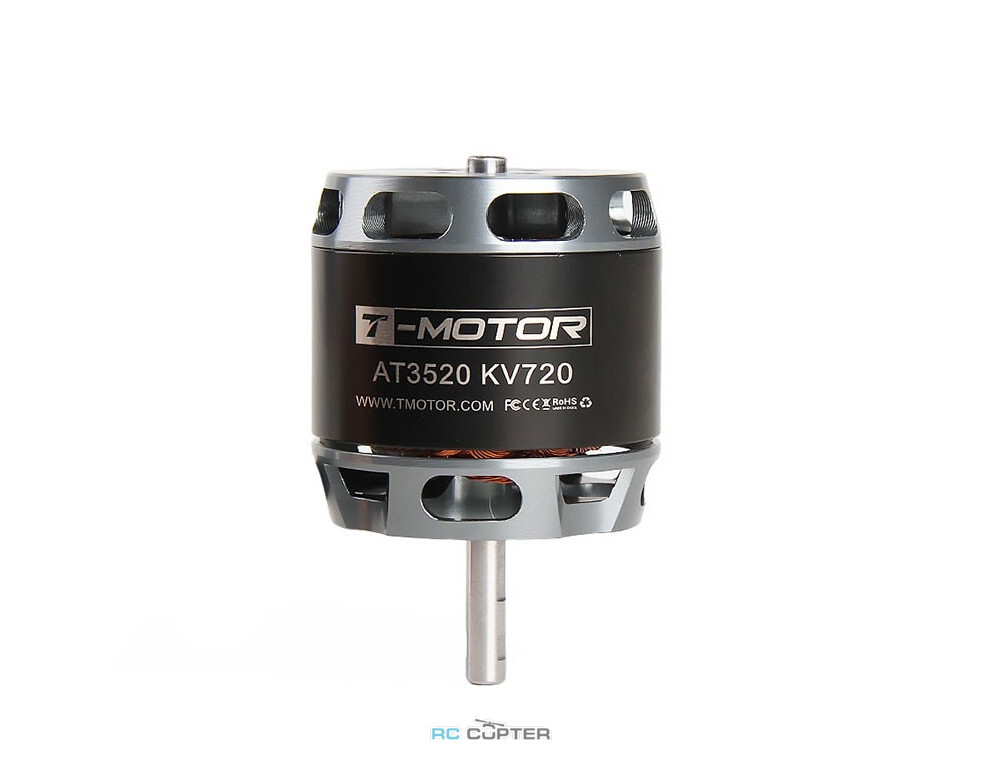

Двигатель бесколлекторный T-Motor AT3520 KV550

Tiger Motors - признаный лидер в производстве моторов для мультикоптеров

Модернизированные (второе поколение) моторы T-Motor из линейки AT предназначены для БПЛА самолётного типа и VTOL.

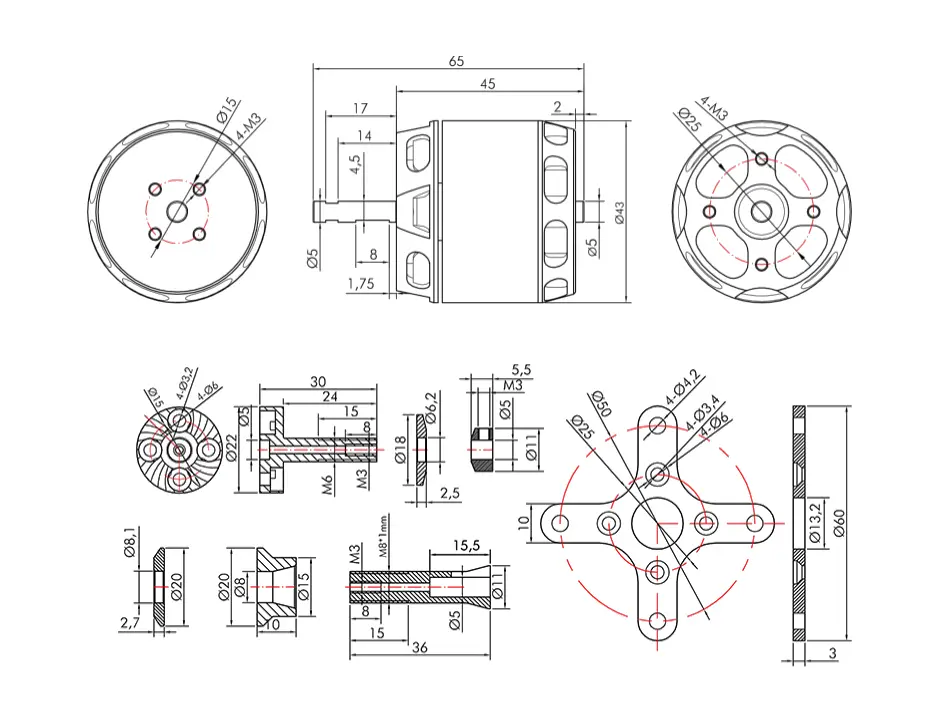

Техническая информация и чертеж:

Test Item	Long Shaft KV550	Weight (Incl. Cable)	218g
Motor Dimensions	Φ43*65mm	Internal Resistance	31mΩ
Lead	Enameled Wire100mm	Configuration	12N14P
Shaft Diameter	IN：5mm OUT：5mm	Rated Voltage(Lipo)	4-6S
Idle Current(10V)	1.1A	Peak Current(180s)	50A
Max Power (180S)	1100W	Recommendation	/

Таблица испытаний мотора:

Type	Propeller	Throttle	Voltage (V)	Current (A)	Power (W)	RPM	Torque (N*m)	Thrust (g)	Efficiency (g/W)	Operating Temperature (℃)
AT3520 Long Shaft KV550	APC 13*6.5	40%	22.49	4.96	111.61	4834	0.162	912	8.18	41 (Ambient Temperature: /)
		45%	22.47	6.00	134.81	5181	0.187	1053	7.81
		50%	22.45	7.26	163.08	5558	0.215	1208	7.41
		55%	22.43	8.88	199.17	5990	0.249	1396	7.01
		60%	22.39	10.87	243.44	6404	0.290	1619	6.65
		65%	22.35	13.47	300.90	6895	0.340	1890	6.28
		70%	22.30	16.12	359.46	7313	0.386	2140	5.95
		75%	22.25	19.27	428.67	7732	0.438	2412	5.63
		80%	22.19	22.60	501.48	8119	0.494	2711	5.41
		90%	22.06	30.77	678.62	8940	0.607	3289	4.85
		100%	21.99	34.89	767.14	9252	0.667	3575	4.66
	APC 14*7	40%	22.49	5.15	115.79	4423	0.185	973	8.40	59 (Ambient Temperature: /)
		45%	22.46	6.71	150.66	4888	0.224	1169	7.76
		50%	22.43	8.50	190.74	5313	0.268	1408	7.38
		55%	22.37	11.18	250.13	5785	0.326	1689	6.75
		60%	22.34	13.70	305.98	6192	0.380	1954	6.39
		65%	22.29	16.90	376.75	6664	0.440	2247	5.96
		70%	22.23	20.26	450.36	7056	0.498	2529	5.62
		75%	22.16	24.56	544.30	7454	0.570	2863	5.26
		80%	22.08	29.20	644.83	7818	0.646	3216	4.99
		90%	21.93	38.47	843.54	8481	0.776	3787	4.49
		100%	21.83	44.28	966.63	8762	0.854	4116	4.26
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AT3520 Long Shaft KV720	APC 13*8	40%	18.47	7.46	137.74	4880	0.194	1004	7.29	54 (Ambient Temperature: /)
		45%	18.43	9.41	173.40	5303	0.231	1194	6.88
		50%	18.39	11.90	218.85	5750	0.277	1428	6.52
		55%	18.34	14.91	273.44	6237	0.324	1658	6.06
		60%	18.28	18.61	340.07	6657	0.383	1954	5.75
		65%	18.20	23.12	420.93	7162	0.443	2249	5.34
		70%	18.15	27.05	490.94	7548	0.500	2524	5.14
		75%	18.06	31.85	575.15	7918	0.552	2768	4.81
		80%	17.96	37.82	679.25	8315	0.621	3045	4.48
		90%	17.74	51.47	912.96	8977	0.771	3539	3.88
		100%	17.62	58.90	1037.58	9211	0.845	3624	3.49
	APC 14*7	40%	18.46	7.55	139.36	4685	0.204	1076	7.72	72 (Ambient Temperature: /)
		45%	18.42	9.99	183.99	5164	0.254	1332	7.24
		50%	18.37	12.95	237.94	5657	0.304	1583	6.65
		55%	18.31	16.51	302.23	6123	0.364	1881	6.22
		60%	18.24	20.52	374.31	6565	0.426	2185	5.84
		65%	18.16	25.43	461.78	7020	0.493	2526	5.47
		70%	18.08	30.14	544.91	7380	0.552	2817	5.17
		75%	17.99	35.37	636.40	7754	0.614	3101	4.87
		80%	17.88	42.17	754.01	8130	0.693	3457	4.58
		90%	17.66	55.71	984.06	8756	0.832	4072	4.14
		100%	17.55	62.58	1098.29	9014	0.892	4316	3.93
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AT3520 Long Shaft KV850	APC 13*6.5	40%	15.16	8.34	126.54	5001	0.170	953	7.53	43 (Ambient Temperature: /)
		45%	15.13	10.19	154.22	5364	0.198	1106	7.17
		50%	15.10	12.09	182.64	5735	0.229	1280	7.01
		55%	15.05	15.18	228.48	6168	0.267	1494	6.54
		60%	14.99	18.54	278.01	6583	0.312	1732	6.23
		65%	14.92	22.90	341.70	7073	0.361	2008	5.88
		70%	14.87	26.29	390.84	7402	0.397	2200	5.63
		75%	14.79	30.91	457.12	7816	0.446	2457	5.38
		80%	14.71	35.89	527.89	8189	0.492	2696	5.11
		90%	14.52	47.53	690.19	8938	0.591	3191	4.62
		100%	14.41	54.65	787.29	9187	0.654	3515	4.46
	APC 14*7	40%	15.15	8.87	134.38	4578	0.196	1021	7.60	61 (Ambient Temperature: /)
		45%	15.12	11.11	167.90	4937	0.233	1214	7.23
		50%	15.06	14.47	217.85	5432	0.282	1468	6.74
		55%	14.99	18.96	284.08	5928	0.347	1785	6.28
		60%	14.92	23.03	343.56	6323	0.395	2033	5.92
		65%	14.83	28.29	419.61	6746	0.457	2323	5.54
		70%	14.75	33.09	488.18	7071	0.507	2570	5.26
		75%	14.65	39.24	574.99	7435	0.568	2852	4.96
		80%	14.56	45.23	658.44	7743	0.624	3111	4.73
		90%	14.34	58.48	838.83	8318	0.737	3607	4.30
		100%	14.22	66.32	942.71	8598	0.797	3854	4.09
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

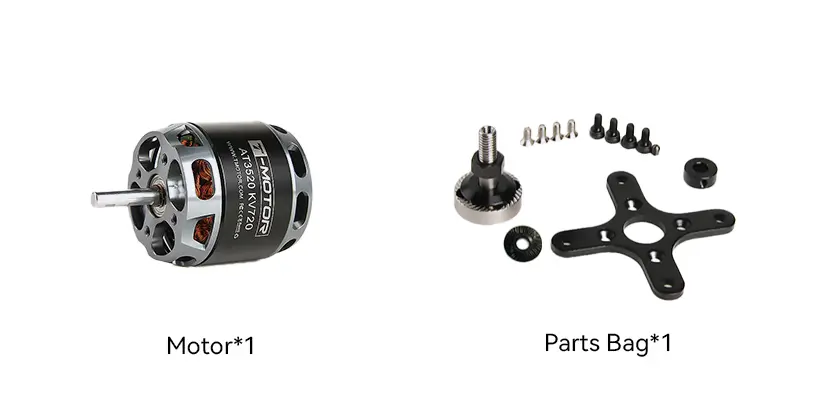

Комплектация:

T-Motor AT3520 KV550 - 1 шт
Комплект крепежей - 1 шт.

Вес:	218 г
Диаметр вала:	5 мм
Диаметр мотора:	43 мм
Длина мотора:	65 мм
KV:	550
Максимальная тяга:	4.1 кг
Пиковая мощность:	1100 Вт
Пиковый ток:	50 А
Производитель:	T-Motor
Пропеллер:	13" , 14"
Рекомендованная батарея:	4-6S
Сопротивление:	31 мОм
Ток холостого хода:	1.1 А
