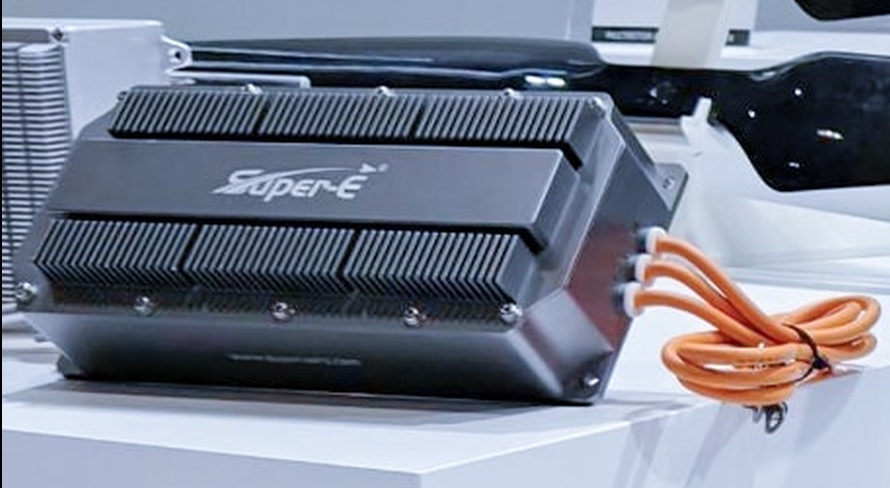

ESC регулятор мотора T-Motor SE40 106S (300-450VDC) 70A/134A

Регулятор ESC SE40 входит в линейку ВМГ Super-E в составе мотора S150 KV9.5 + ESC SE40 + пропеллер NS62

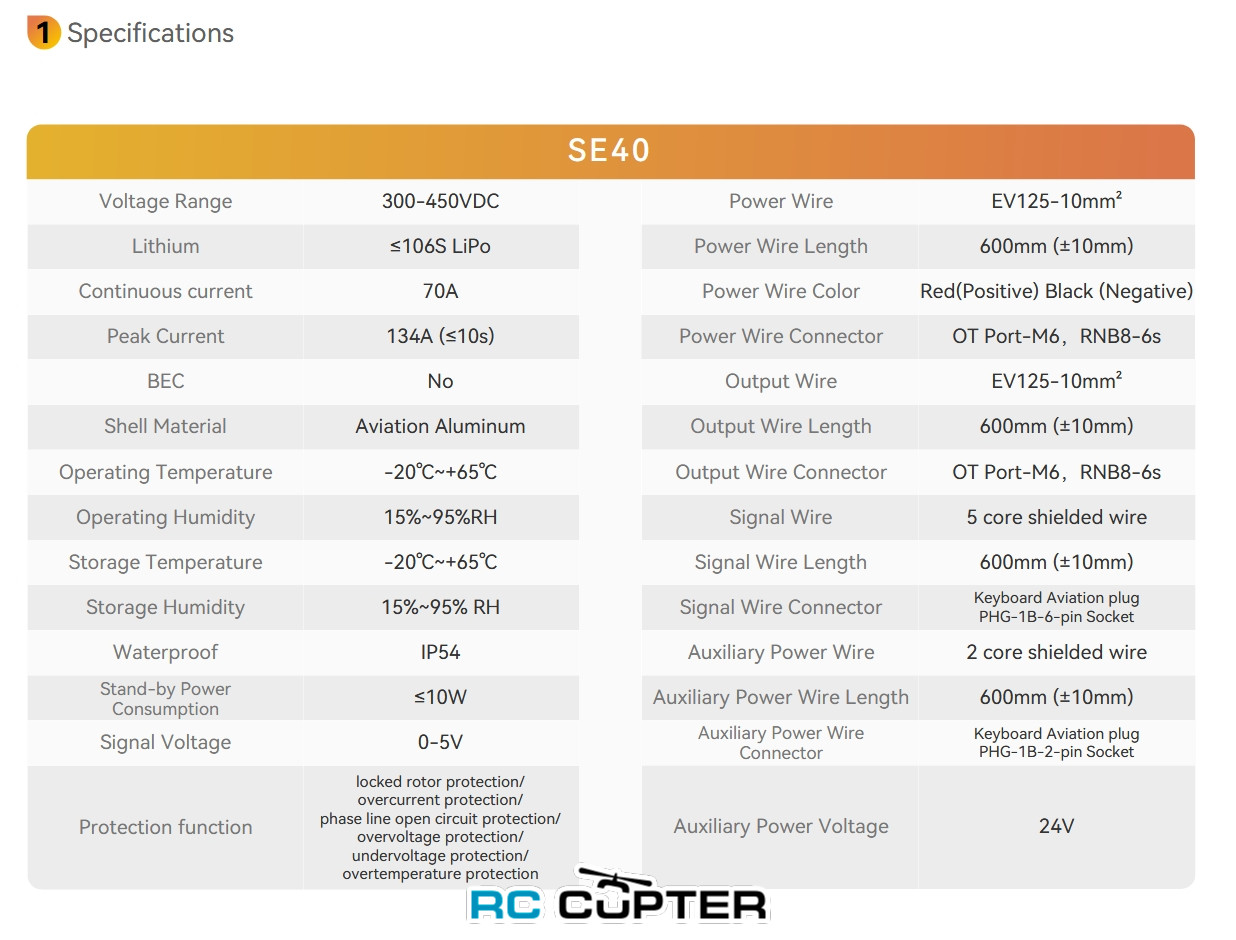

Характеристики:

• Voltage Range 300-450VDC
• Lithium <106S LiPo
• Continuous current 70A
• Peak Current 134A (<10s)
• ВЕС No
• Shell Material Aviation Aluminum
• Operating Temperature -20°C~+65°C
• Operating Humidity 15%~95%RH
• Storage Temperature -20°C~+65°C
• Storage Humidity 15%~95% RH
• Waterproof IP54
• Stand-by Power Consumption <10W
• Signal Voltage 0-5V
• Protection function: locked rotor protection/ overcurrent protection/ phase line open circuit protection/ overvoltage protection/ undervoltage protection/ overtemperature protection
• Power Wire EV125-10mm2
• Power Wire Length 600mm (±10mm)
• Power Wire Color: Red(Positive) Black (Negative)
• Power Wire Connector: OT Port-M6, RNB8-6s
• Output Wire EV125-10mm2
• Output Wire Length 600mm (±10mm)
• Output Wire Connector OT Port-M6, RNB8-6s
• Signal Wire 5 core shielded wire
• Signal Wire Length 600mm (±10mm)
• Signal Wire Connector: Keyboard Aviation plug PHG-1B-6-pin Socket
• Auxiliary Power Wire 2 core shielded wire
• Auxiliary Power Wire Length 600mm (±10mm)
• Auxiliary Power Wire Connector Keyboard Aviation plug PHG-1B-2-pin Socket
• Auxiliary Power Voltage 24V

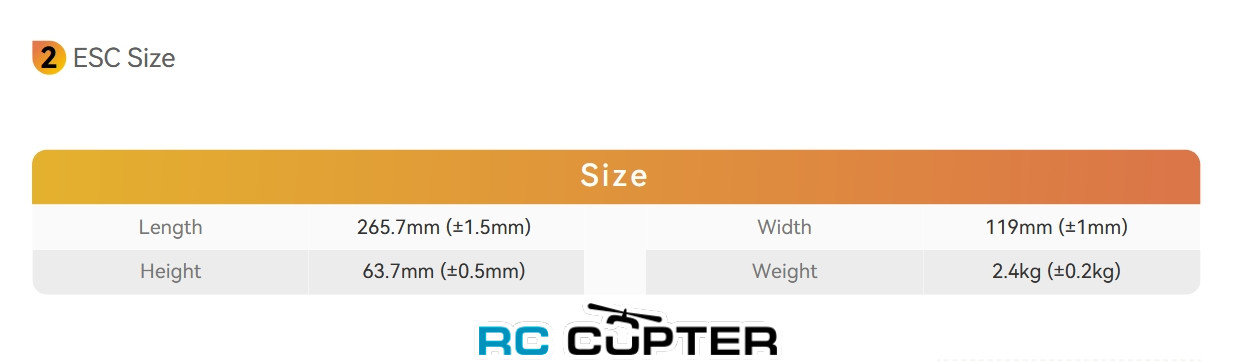

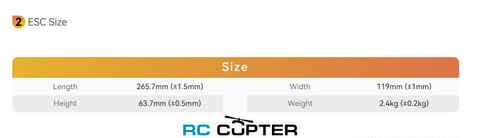

Размеры ESC:

• Length 265.7mm (+1.5mm)
• Width 119mm (+1mm)
• Height 63.7mm (+0.5mm)
• Weight 2.4kg (+0.2kg)

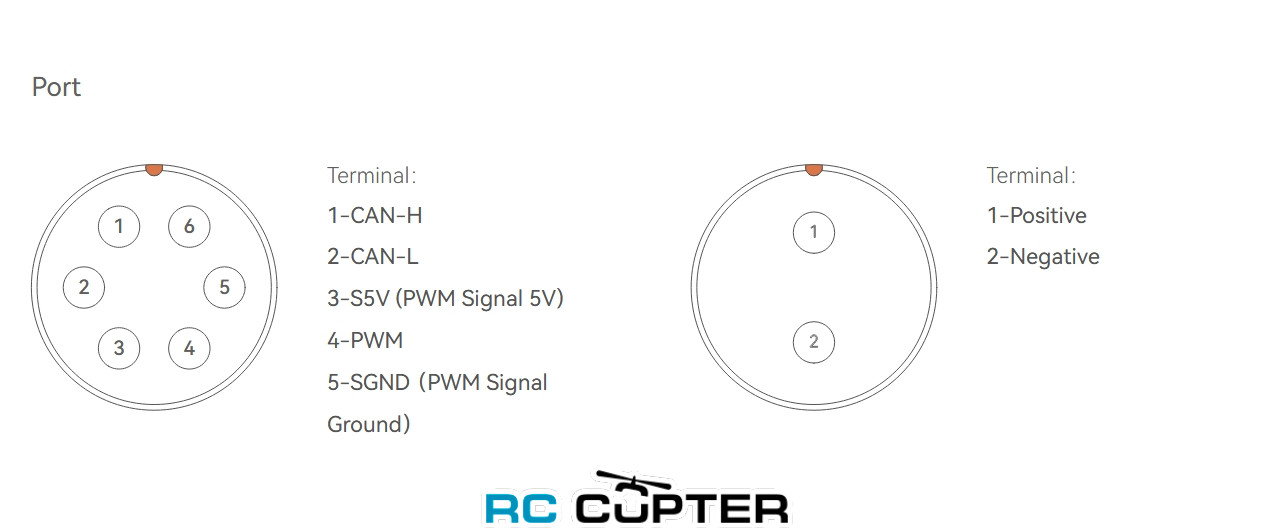

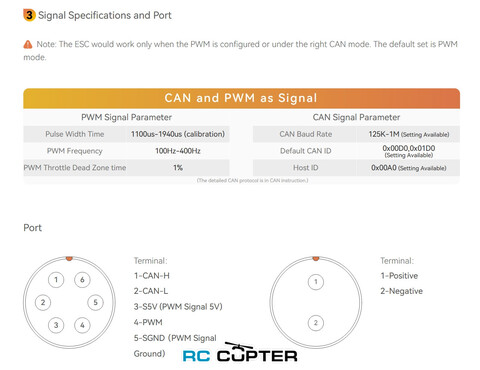

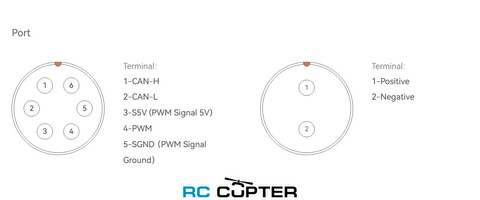

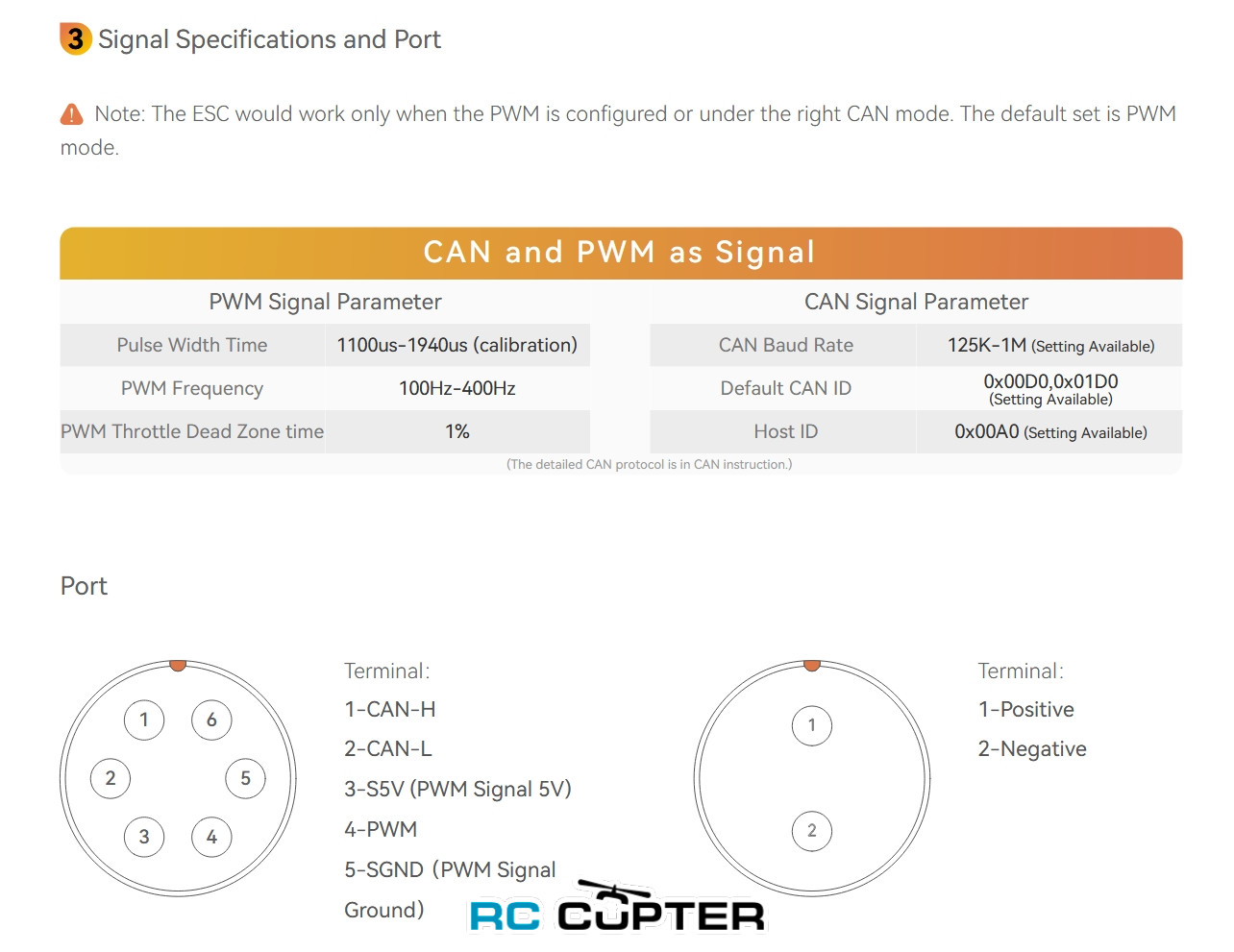

Signal Specifications and Port

Note: The ESC would work only when the PWM is configured or under the right CAN mode. The default set is PWM mode

CAN and PWM as Signal

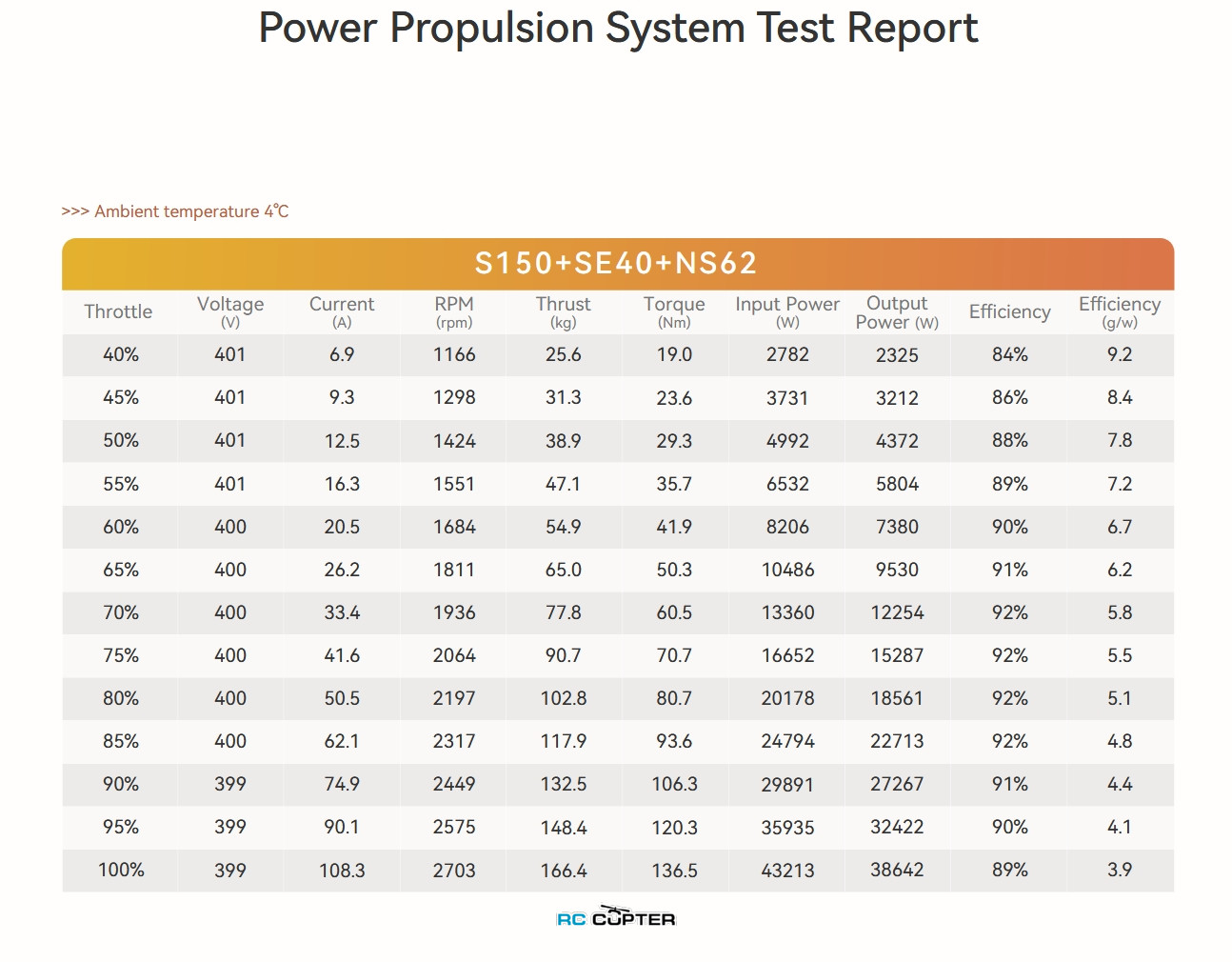

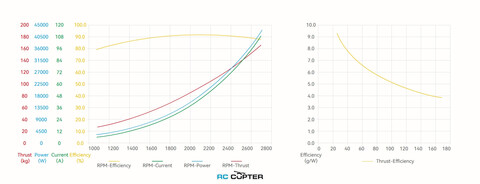

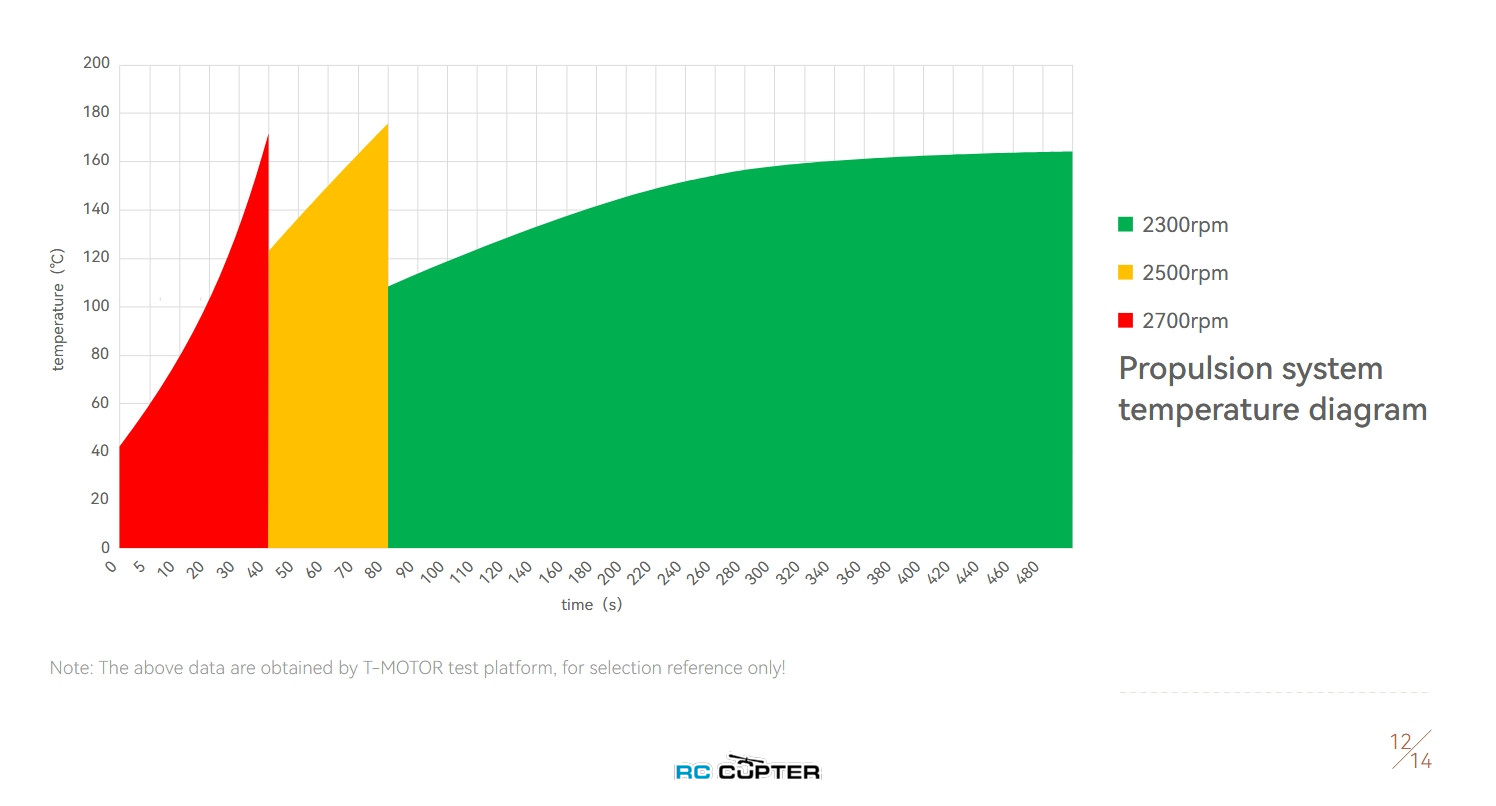

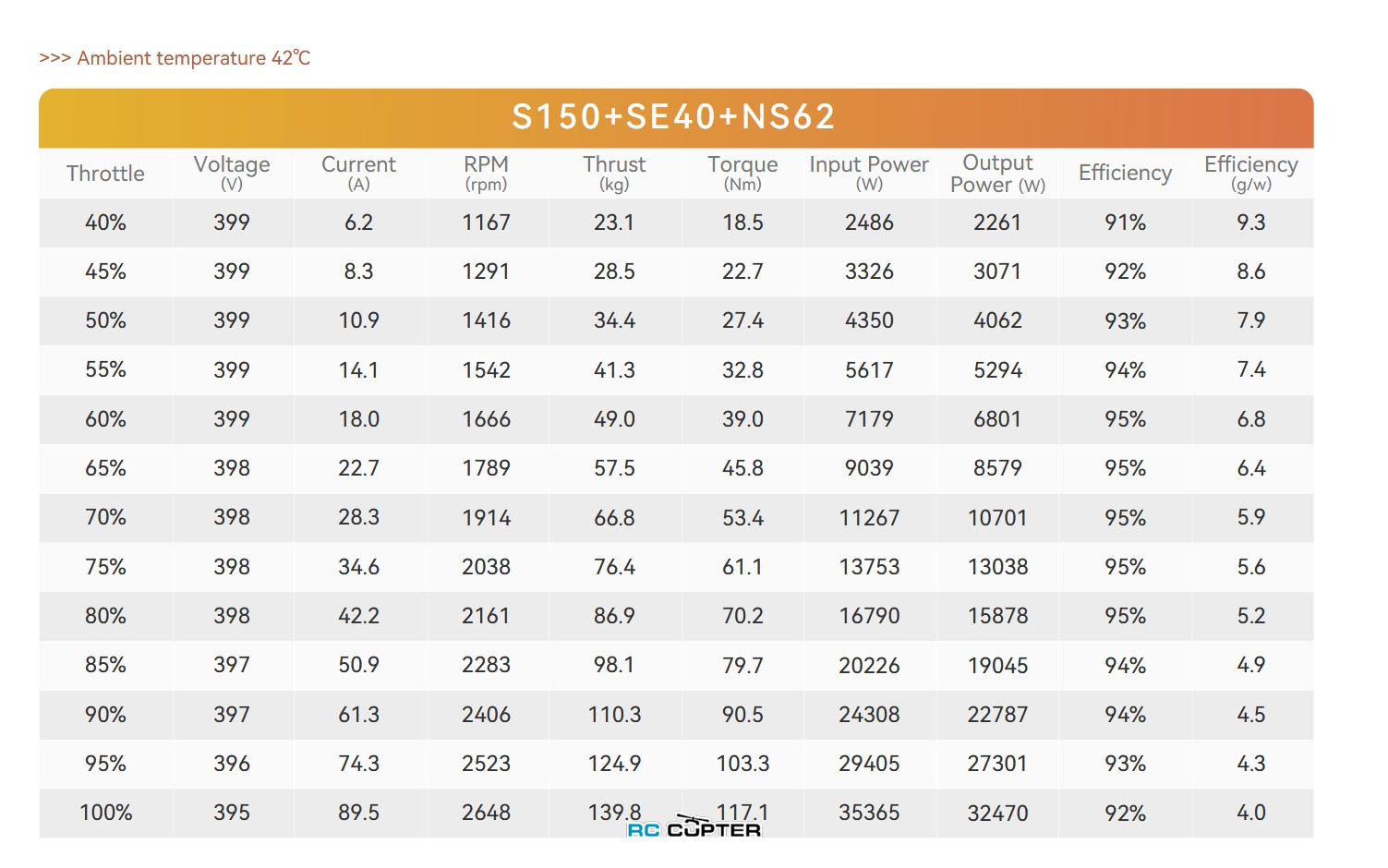

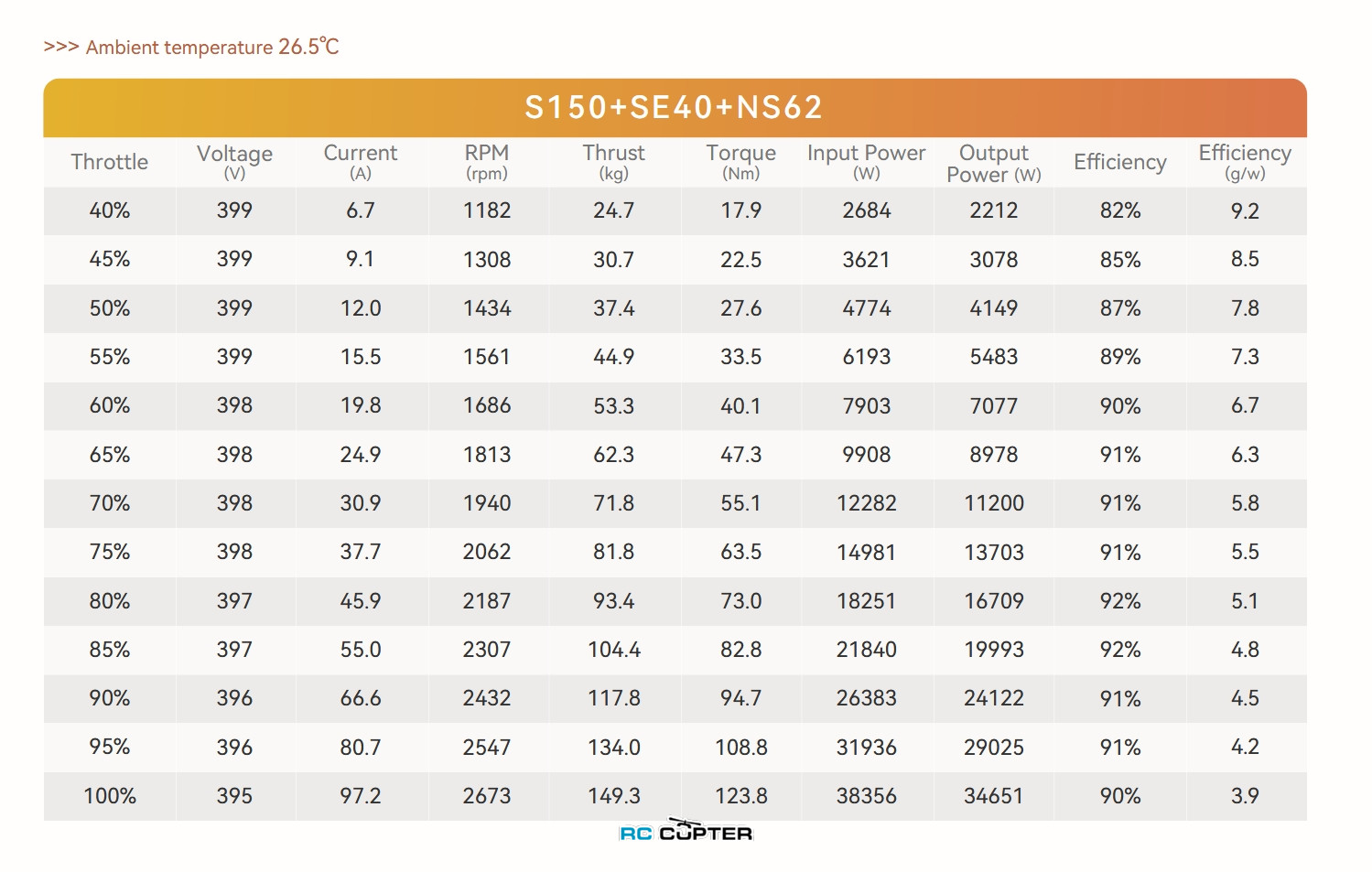

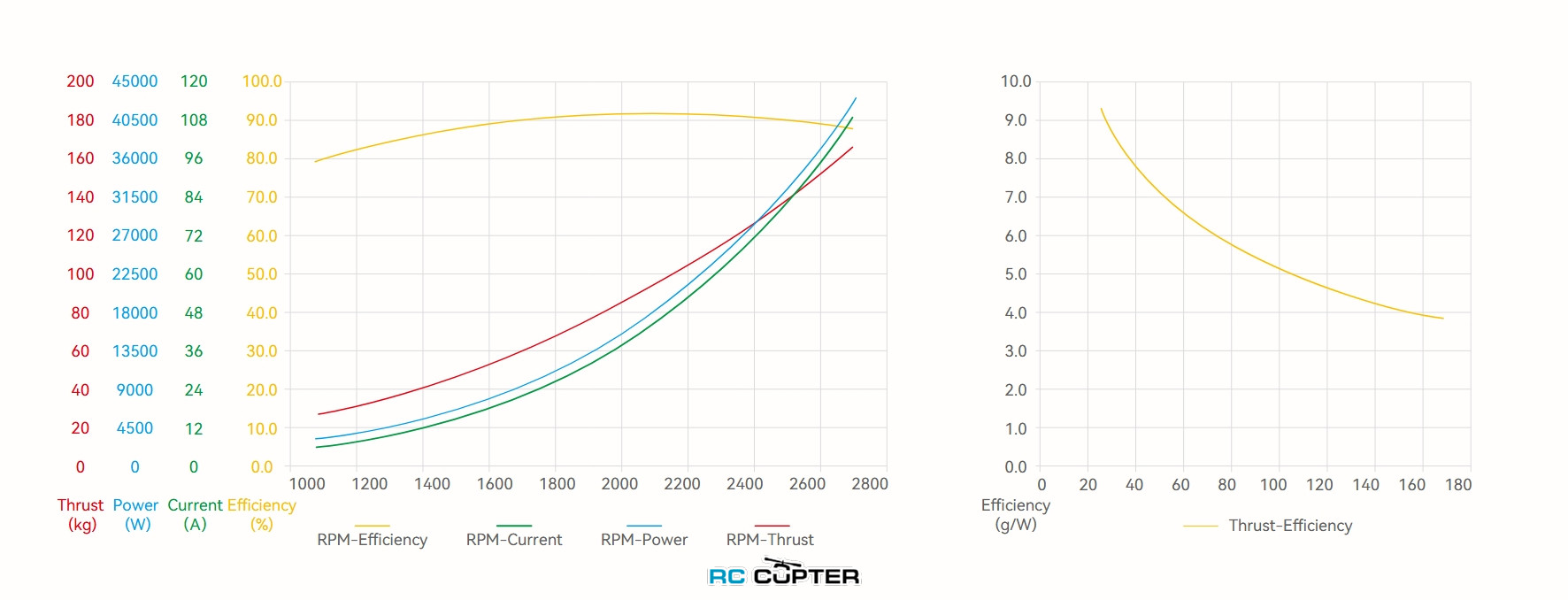

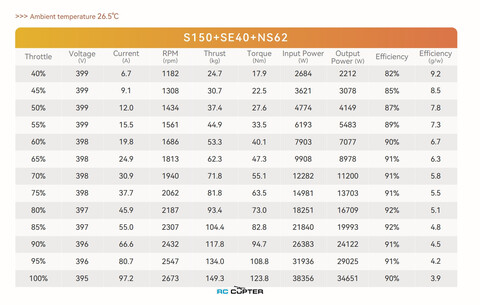

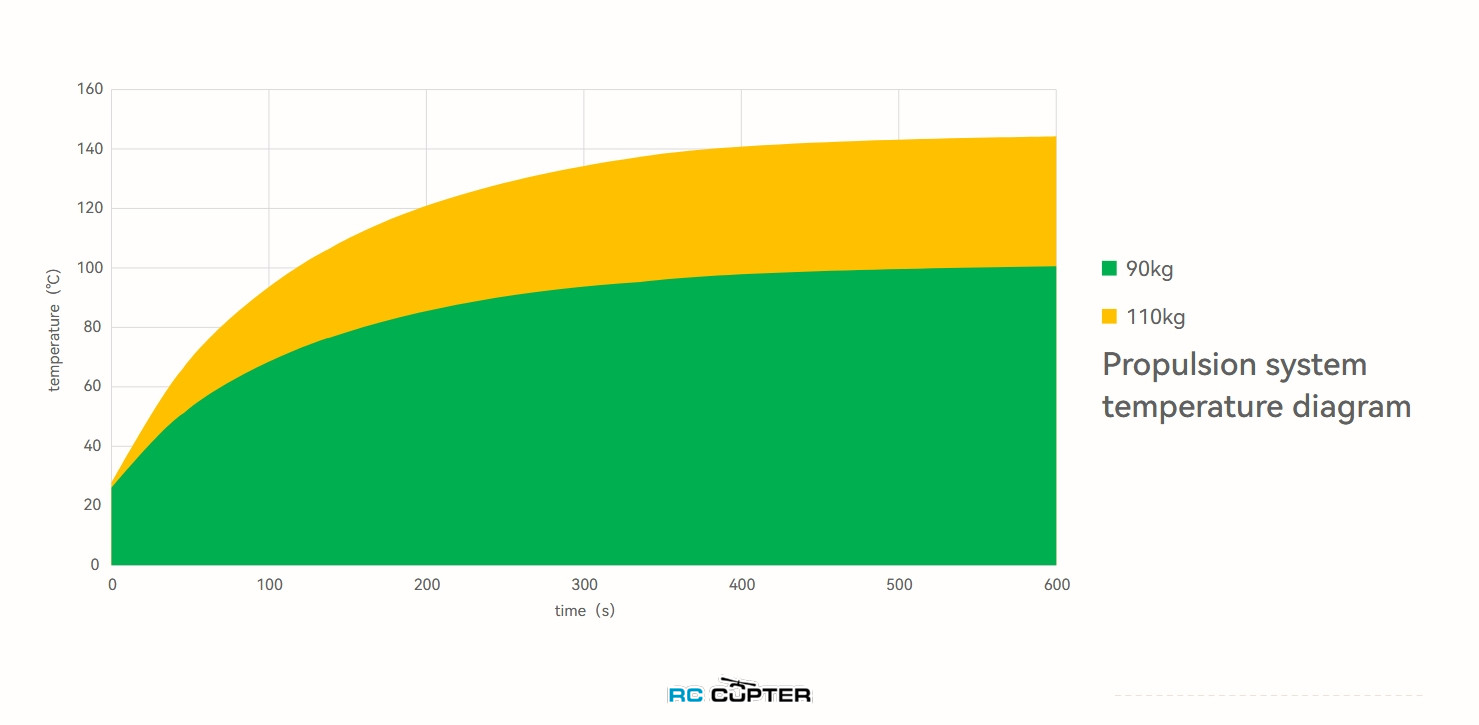

Тесты:

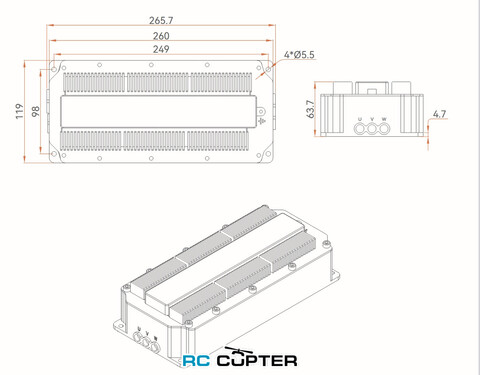

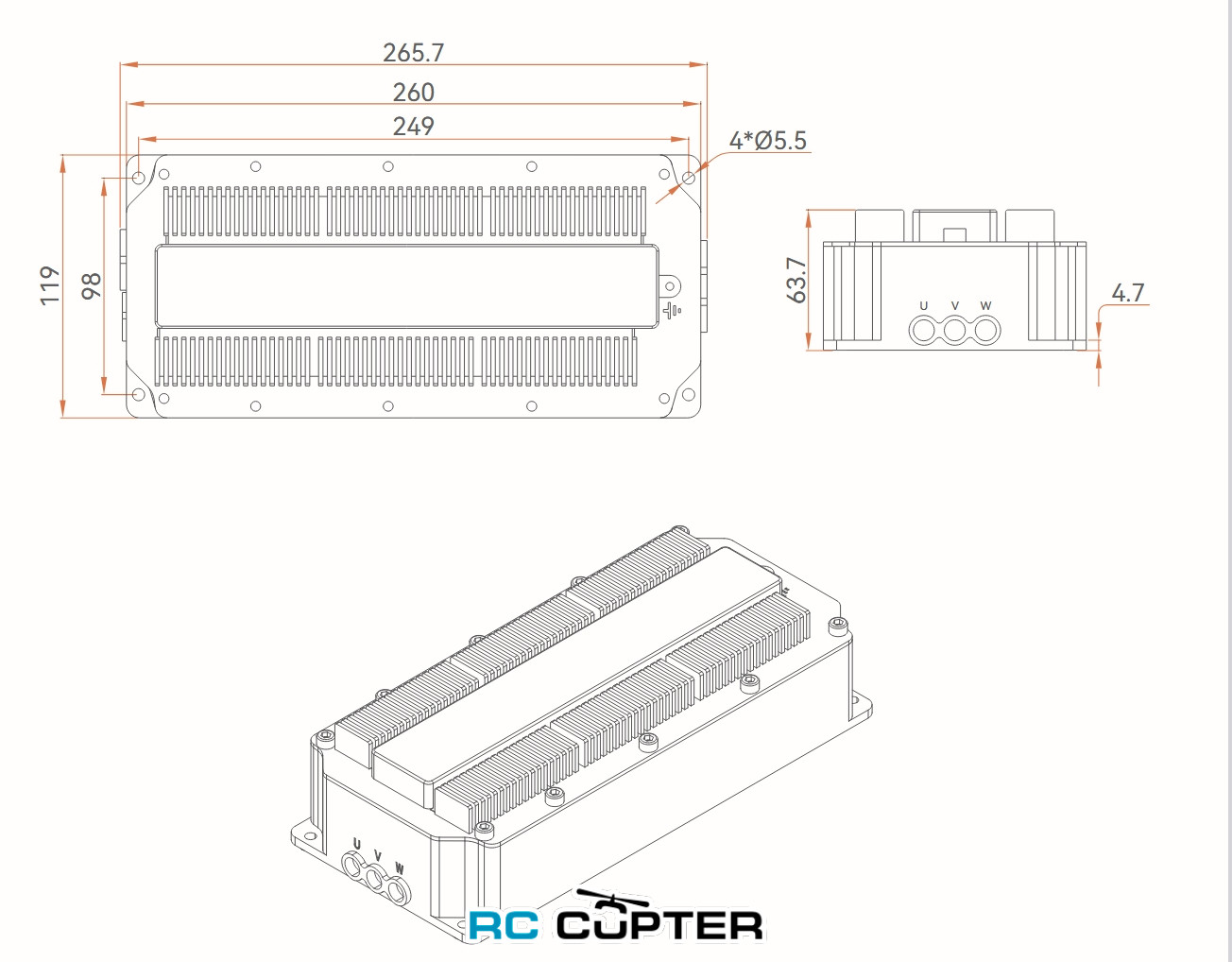

Чертёж:

Ссылка на презентацию:

• https://vk.com/s/v1/doc/lK6qTxQfNcyiixp_faLI1Ft1PyMVc0RprdtuVMzIABu3CfCRfz4

В комплекте:

• ESC регулятор мотора T-Motor SE40 106S (300-450VDC) 70A/134A - 1шт
