T-Motor F90 2806.5 KV1300 Fpv Racing 5-6S

Артикул: 36484

нет в наличии
под заказ, пишите

Описание
Характеристики
Отзывы (0)

Мотор T-MOTOR F90 2806.5, 6-7 дюймов, дальнобойный/кинематографический, фристайл

Получите больше времени полета с мотором T-Motor F90! Этот мотор предназначен для FPV-конструкций Cinelifter X8 или аналогичных конструкций, рассчитанных на установку тяжелой камеры.

F90 - это стабильный и плавный мотор, который поставляется в трех вариантах KV: 1300KV, 1500KV и 1950KV.

Подходящие компоненты:

Пропеллеры: 5-7 дюймов FPV
Рама: 6-7 дюймов/6-7" X8 Frame или 7-8" Long Range Frame
Полетный контроллер: F7 или Полетный контроллер F7 pro
ESC: F55A Pro II 6s 4in1 ESC/FPV 6S ESC
АКБ: 6S 5200 мАч 75C
Взлетный вес: 3200 г (зависит от фактического взлетного веса)

Спецификация

Test Item	KV1300	Weight(Incl.Cable)	46.6g
Motor Dimensions	Φ33.4*34.7mm	Internal Resistance	76mΩ
Lead	20#AWG 230mm	Configuration	12N14P
Shaft Diameter	4mm	Rated Voltage(Lipo)	5-6S
Idle Current(10V)	0.95A	Peak Current(60s)	45.1A
Max.Power(60s)	1059W

Test Item	KV1500	Weight(Incl.Cable)	46.7g
Motor Dimensions	Φ33.4*34.7mm	Internal Resistance	62mΩ
Lead	20#AWG 230mm	Configuration	12N14P
Shaft Diameter	4mm	Rated Voltage(Lipo)	5-6S
Idle Current(10V)	1.2A	Peak Current(60s)	47.4A
Max.Power(60s)	1089W

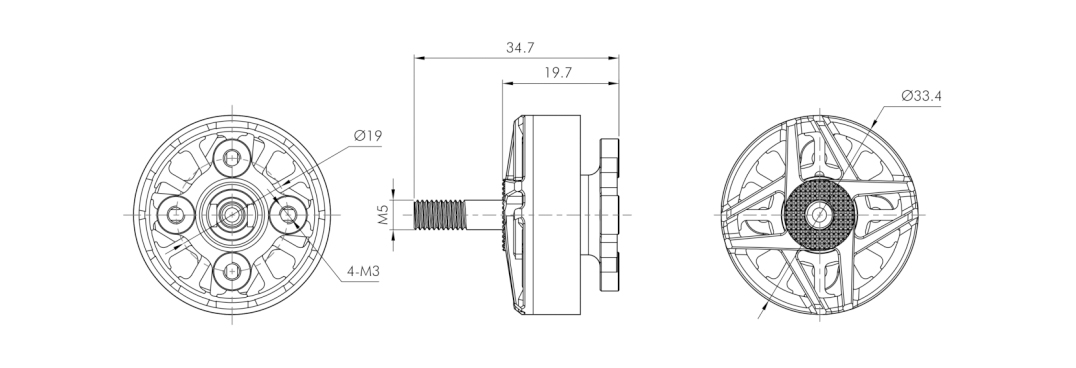

Чертеж

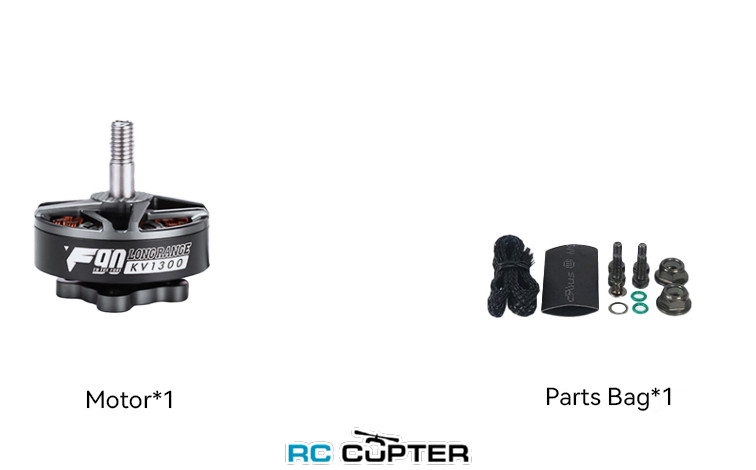

Комплектация

мотор T-Motor F90 2806.5 KV1300 Fpv Racing 5-6S - 1 шт

Данные испытаний

Type	Propeller	Throttle	Thrust (g)	Voltage (V)	Current (A)	RPM	Power (W)	Efficiency (g/W)	Operating Temperature (℃)
F90 KV1300	HQ 70403	30%	353.46	24.24	2.14	8192	51.97	6.80	96 (Ambient Temperature: 27℃)
		35%	478.74	24.22	3.31	9342	80.15	5.97
		40%	596.38	24.19	4.55	10488	110.13	5.42
		45%	758.30	24.15	6.71	11716	162.08	4.68
		50%	947.57	24.10	8.83	12801	212.90	4.45
		55%	1131.80	24.06	11.29	13891	271.71	4.17
		60%	1290.19	24.01	14.27	14807	342.61	3.77
		70%	1585.74	23.90	20.64	16402	493.17	3.22
		80%	1865.32	23.78	27.73	17739	659.40	2.83
		90%	2210.20	23.63	36.73	18865	867.82	2.55
		100%	2360.61	23.48	45.11	19617	1059.16	2.23
	GF 7042	30%	319.66	24.24	1.78	8506	43.23	7.39	93 (Ambient Temperature: 27℃)
		35%	433.50	24.22	2.62	9659	63.49	6.83
		40%	552.09	24.20	3.86	10772	93.35	5.91
		45%	697.52	24.18	5.22	12021	126.13	5.53
		50%	836.04	24.14	7.22	13240	174.32	4.80
		55%	988.93	24.10	9.24	14379	222.65	4.44
		60%	1196.60	24.04	12.15	15407	292.09	4.10
		70%	1474.19	23.95	18.25	17166	437.12	3.37
		80%	1783.25	23.83	24.52	18809	584.30	3.05
		90%	1969.91	23.71	32.06	20211	760.06	2.59
		100%	2116.55	23.54	41.26	21357	971.16	2.18
Note: Motor temperature is motor surface temperature at 100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)
F90 KV1500	HQ 70403	30%	447.12	23.94	2.95	8760	70.61	6.33	99 (Ambient Temperature: 27℃)
		35%	581.32	23.91	4.53	9949	108.27	5.37
		40%	733.34	23.87	6.60	11267	157.59	4.65
		45%	877.50	23.81	9.04	12483	215.20	4.08
		50%	1033.22	23.75	11.85	13538	281.36	3.67
		55%	1187.19	23.69	15.00	14445	355.32	3.34
		60%	1361.51	23.61	18.65	15178	440.22	3.09
		70%	1640.76	23.45	25.42	16570	596.07	2.75
		80%	1793.87	23.30	34.52	17025	804.19	2.23
		90%	1983.76	23.14	39.54	18122	915.13	2.17
		100%	2102.78	23.01	47.37	18501	1089.99	1.93
	GF 7042	30%	432.05	23.95	2.76	8506	66.05	6.54	96 (Ambient Temperature: 27℃)
		35%	549.31	23.93	4.04	9659	96.69	5.68
		40%	699.29	23.89	5.96	10772	142.38	4.91
		45%	839.58	23.84	8.11	12021	193.25	4.34
		50%	980.00	23.79	10.62	13240	252.74	3.88
		55%	1134.08	23.73	13.56	14379	321.86	3.52
		60%	1293.48	23.65	16.53	15407	391.06	3.31
		70%	1475.60	23.47	26.05	17166	611.47	2.41
		80%	1642.99	23.32	31.12	18809	725.79	2.26
		90%	1765.77	23.16	39.27	20211	909.44	1.94
		100%	1840.71	23.02	47.07	21357	1083.74	1.70
	T6143	30%	280.07	23.98	1.84	9810	44.17	6.34	97 (Ambient Temperature: 27℃)
		35%	378.01	23.96	2.86	11345	68.63	5.51
		40%	489.09	23.93	4.14	12852	99.07	4.94
		45%	596.88	23.91	5.58	14198	133.44	4.47
		50%	686.68	23.88	7.01	15518	167.43	4.10
		55%	811.55	23.84	8.86	16693	211.08	3.84
		60%	930.00	23.80	10.95	17812	260.63	3.57
		70%	1185.39	23.70	15.83	19986	375.13	3.16
		80%	1451.51	23.59	21.60	21879	509.59	2.85
		90%	1708.33	23.46	28.24	23664	662.53	2.58
		100%	1961.04	23.32	35.73	25185	833.01	2.35
Note: Motor temperature is motor surface temperature at 100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)
F90 KV1950	GF51466-3 5S	30%	381.97	21.00	4.87	15006	102.31	3.73	81 (Ambient Temperature: 16℃)
		35%	460.38	20.98	6.32	16431	132.60	3.47
		40%	540.15	20.96	7.88	17729	165.13	3.21
		45%	614.83	20.94	9.46	18694	198.17	3.10
		50%	679.57	20.91	10.98	19742	229.66	2.96
		55%	758.97	20.91	12.59	20552	263.23	2.88
		60%	835.59	20.88	14.18	21552	296.20	2.82
		70%	1002.77	20.83	18.39	23517	383.13	2.62
		80%	1231.68	20.76	24.02	25691	498.64	2.47
		90%	1518.36	20.66	32.03	28418	661.55	2.30
		100%	1784.09	20.54	41.56	30594	853.46	2.09
	T6143-3 5S	30%	470.80	20.97	5.45	12345	114.38	4.12	88 (Ambient Temperature: 16℃)
		35%	556.57	20.96	6.66	13493	139.62	3.99
		40%	649.36	20.93	8.28	14368	173.36	3.75
		45%	743.71	20.92	10.05	15644	210.16	3.54
		50%	847.35	20.88	12.54	16697	261.87	3.24
		55%	967.26	20.85	14.82	17801	309.00	3.13
		60%	1094.46	20.81	18.45	18771	383.92	2.85
		70%	1369.87	20.71	25.62	21001	530.70	2.58
		80%	1631.36	20.61	33.87	22618	698.02	2.34
		90%	1947.18	20.49	43.76	24810	896.41	2.17
		100%	2136.75	20.15	54.06	26217	1089.02	1.96
	GF51466-3 6S	30%	511.25	25.22	6.19	17140	156.22	3.27	93 (Ambient Temperature: 16℃)
		35%	605.24	25.18	8.01	18627	201.67	3.00
		40%	694.10	25.17	9.95	19888	250.45	2.77
		45%	791.86	25.16	11.86	21186	298.38	2.65
		50%	888.81	25.12	13.85	22321	347.94	2.55
		55%	967.94	25.09	16.02	23239	401.98	2.41
		60%	1057.16	25.07	17.38	24238	435.63	2.43
		70%	1326.45	25.01	23.23	26896	587.02	2.28
		80%	1625.05	24.88	31.72	29478	789.12	2.06
		90%	1858.36	24.75	41.93	32422	1037.97	1.79
		100%	2075.42	24.26	53.66	34173	1301.95	1.59
Note: Motor temperature is motor surface temperature at 100% throttle running 1mins. (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)

Вес:	46.6 г
Диаметр вала:	4 мм
Диаметр мотора:	33.4 мм
Длина мотора:	34.7 мм
Длина проводов:	230 мм
KV:	1300
Максимальная тяга:	2360 г
Пиковая мощность:	1059 Вт
Пиковый ток:	45.1 А
Производитель:	T-Motor
Пропеллер:	7"
Рекомендованная батарея:	5-6S
Ток холостого хода:	0.95 А
