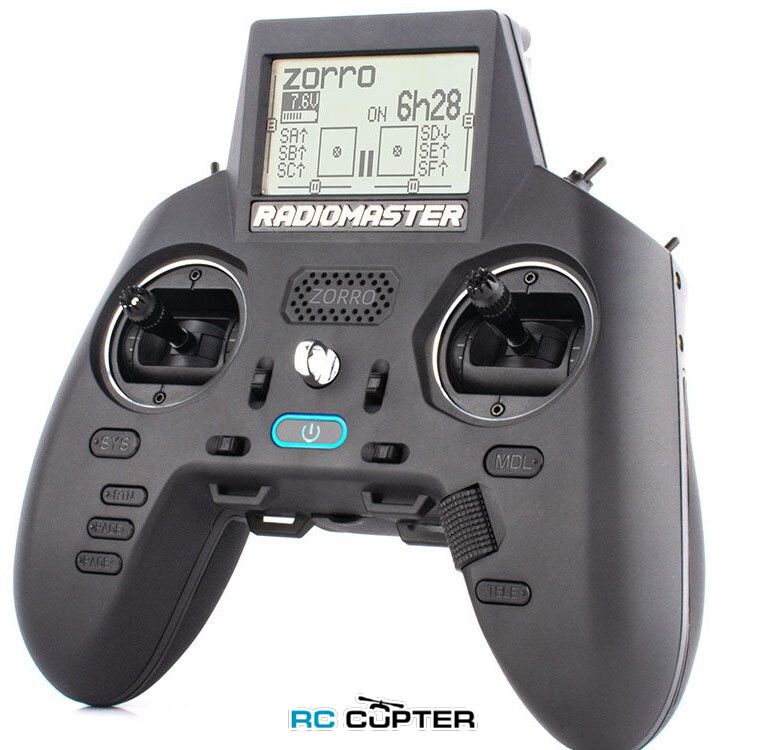

Аппаратура управления Radiomaster Zorro - ELRS Starter Set - FCC
Благодаря эргономичному дизайну, большому яркому ЖК-экрану в идеальном положении, регулируемым по ходу движения gimbals с датчиком HALL, отсеку для внешнего RF-модуля размером нано, встроенной зарядке USB-C, порту USB-C Data для обновления и воспроизведения симуляторов, задним и верхним назначаемым кнопкам, колесам прокрутки, навигационной системе RadioMasters 7 кнопок меню, аудиовыходу на наушники, входу для внешнего источника питания и множеству RF-опций, RadioMaster Zorro снова изменит игру.

Specification
Versions
|
CC2500
|
4in1
|
ELRS
|
ELRS Starter Set
|
Physical Dimensions
|
170*159*108mm
|
Weight
|
350 grams
|
Operating Frequency
|
2.400GHz-2.480GHz
|
Internal RF Options
|
CC2500 multi-protocol
|
4-in-1 multi-protocol
|
ELRS
|
Supported Protocols
|
Module dependent
|
Module dependent
|
ELRS
|
Antenna Gain
|
Folding 2db
|
Operational Current
|
160mA@8.4V
|
Operational Voltage
|
6.6-8.4v DC
|
Control Distance
|
> 2km
|
> 2km
|
Receiver and Power Output dependant
|
Operating system
|
OpenTX / EdgeTX Compatible
|
Control channels
|
Maximum 16 (Rx dependent)
|
Display
|
128*64 Monochrome LCD
|
Battery
|
2 x 18350 (Not included)
|
Charging
|
Built in USB-C Charging
|
Gimbal
|
Hall-effect
|
Module Bay
|
Nano Size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost)
|
Firmware Upgrade Method
|
Via USB or SD card
|
Нажмите, чтобы посмотреть сравнительную таблицу радиостанций RadioMaster.
FCC Version and EU LBT Version are Available
Currently, we provide the standard FCC version and the EU LBT version. Please check the supported protocols below.
Standard FCC Version
- CC2500 (FCC) Version supports all CC2500 protocols
- 4in1 (FCC) Version supports all MPM protocols
- ELRS (FCC) is pre-installed with ExpressLRS ISM FW (Max power is hardware dependant)
EU LBT Version
- CC2500 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT & HoTT LBT
- 4in1 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT, HoTT LBT and DSMX
- ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)
Support OPENTX & EDGETX
Support 4 RF Configurations

Switchable in Mode 1 and Mode 2
Zorro radio supports switching between Mode 1 and Mode 2 without disassembly. The default factory mode is Mode 2.

Adjustable Hall Gimbals
External Module Bay
Zorro Radio is with an external module bay for use with Crossfire / ELRS and other compatible modules.

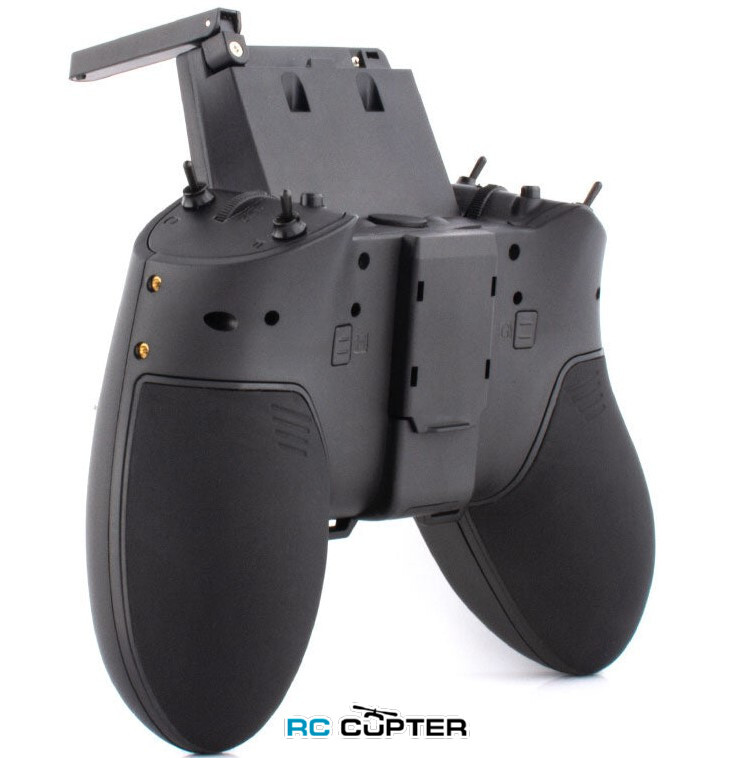

18350 Battery Compartments

Battery Charging
- Supports USB-C Directing Charging

- Supports External 2S Battery Power Supply

Oversized LCD & Foldable Antenna

DIY Attachment Points

Ergonomically Designed

Accessories
Комплектация

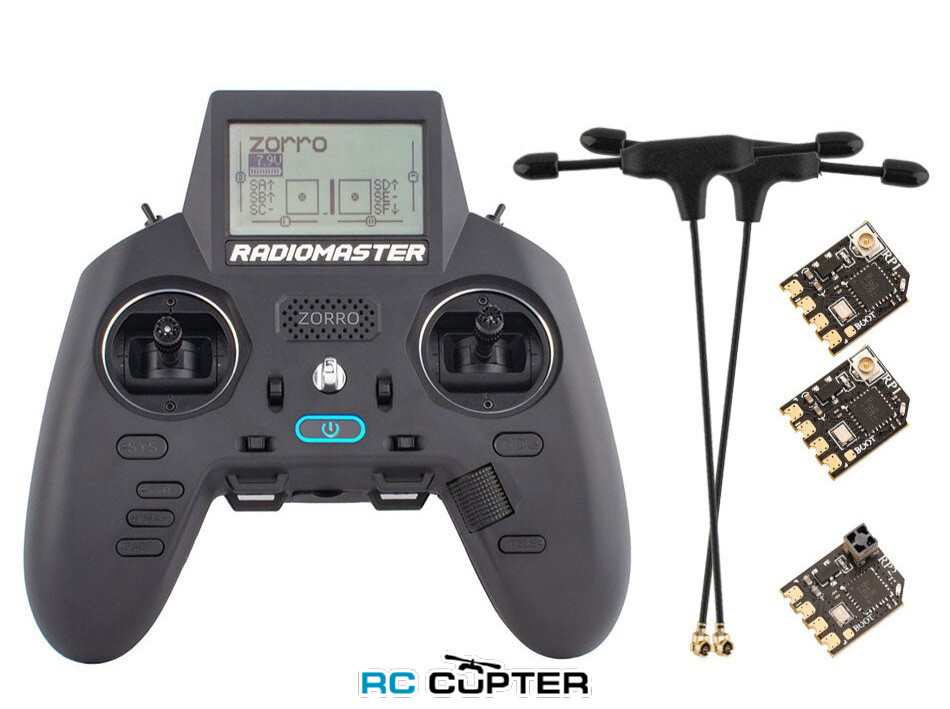

Версия ELRS Starter Set включает в себя:
- 1 * Zorro ELRS Radio Control
- 2 * RP1 ExpressLRS 2.4ghz Nano Receiver
- 1 * RP2 ExpressLRS 2.4ghz Nano Receiver
Остальные варианты:
Version |
Package Includes |
CC2500 |
- 1 * Zorro Radio Controller CC2500 Version
|
4-in-1 |
- 1 * Zorro Radio Controller 4-in-1 Version
|
ELRS |
- 1 * Zorro Radio Controller ELRS Version
|
ELRS Starter Set |
- 1 * Zorro ELRS Radio Control
- 2 * RP1 ExpressLRS 2.4ghz Nano Receiver
- 1 * RP2 ExpressLRS 2.4ghz Nano Receiver
|
CC2500 + TBS Nano Crossfire Combo |
- 1 * Zorro Radio Controller CC2500 Version
- 1 * TBS Nano Crossfire Module
|
