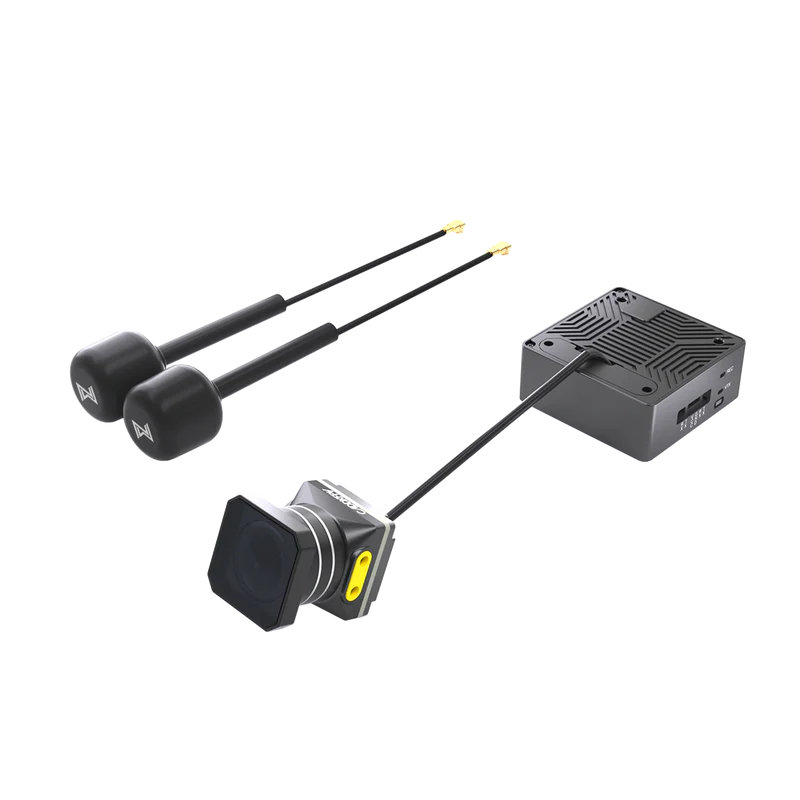

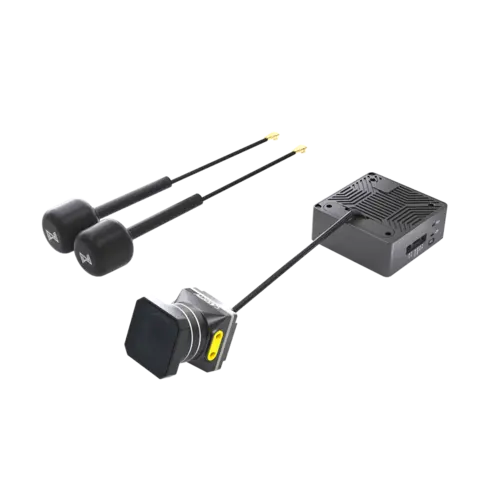

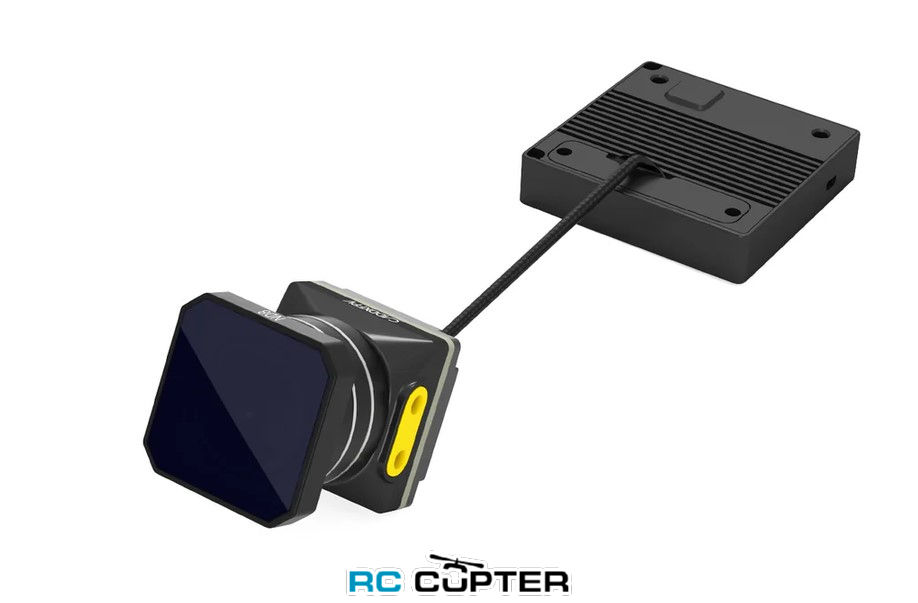

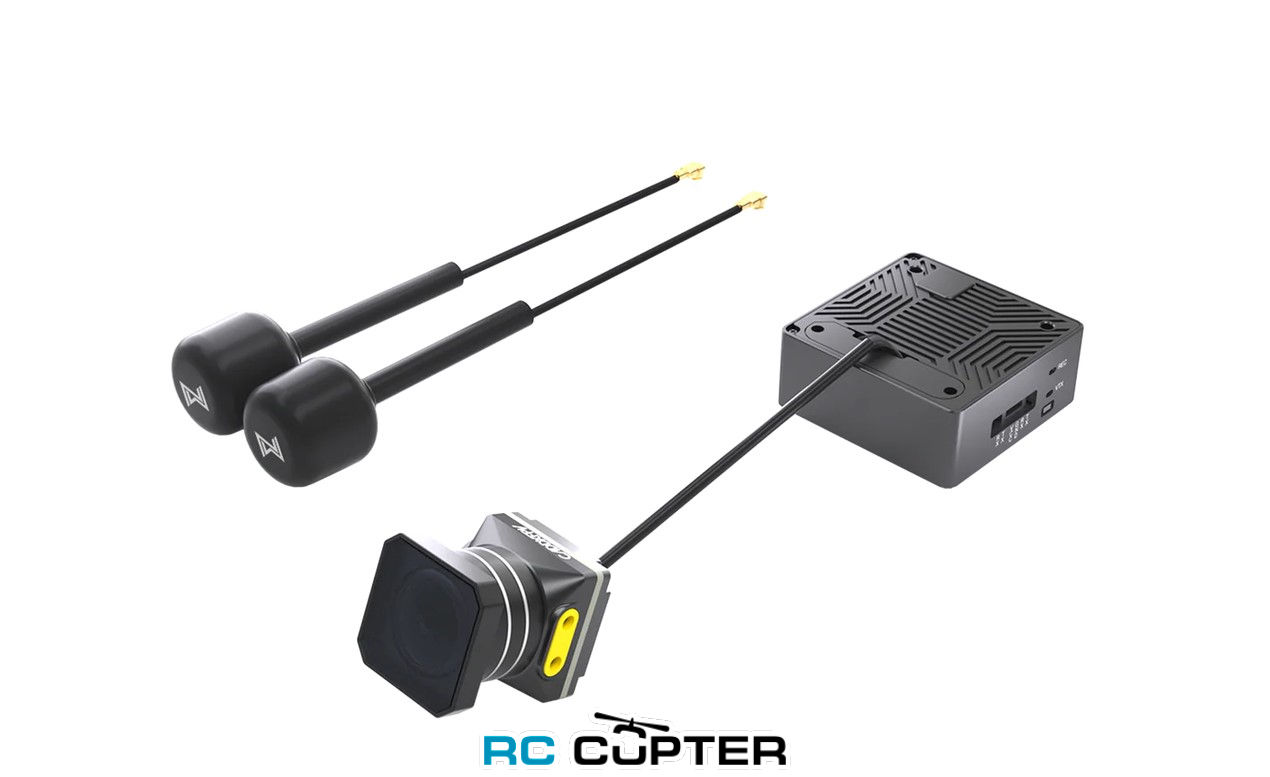

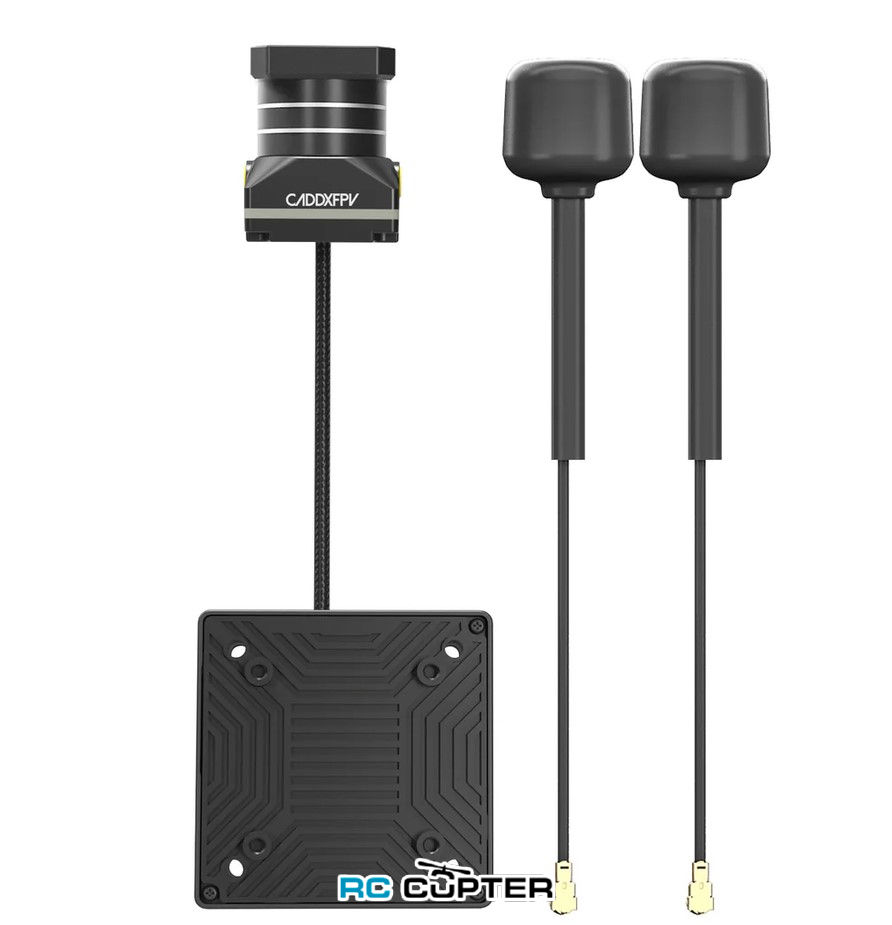

Видеопередатчик + камера CADDX Walksnail Moonlight Kit (Startligh) SKU: WN11-4K14B

Артикул: 37274
нет в наличии
под заказ, пишите
27489 руб
добавить к сравнению перейти к сравнению
  • Описание
  • Характеристики
  • Отзывы (0)

Features:

●4K/60FPS Startlight Camera
●Built-in EIS Support Gyroflow
●SD card ●FOV 160°
Dual Antennas ●7.4V-25.2V

Bullet Points:

  • Supports 4K/60fps, ensuring that FPV embraces true 4K. Shooting stable and HD videos without unnecessary latency, bring pilots a smoother FPV experience.

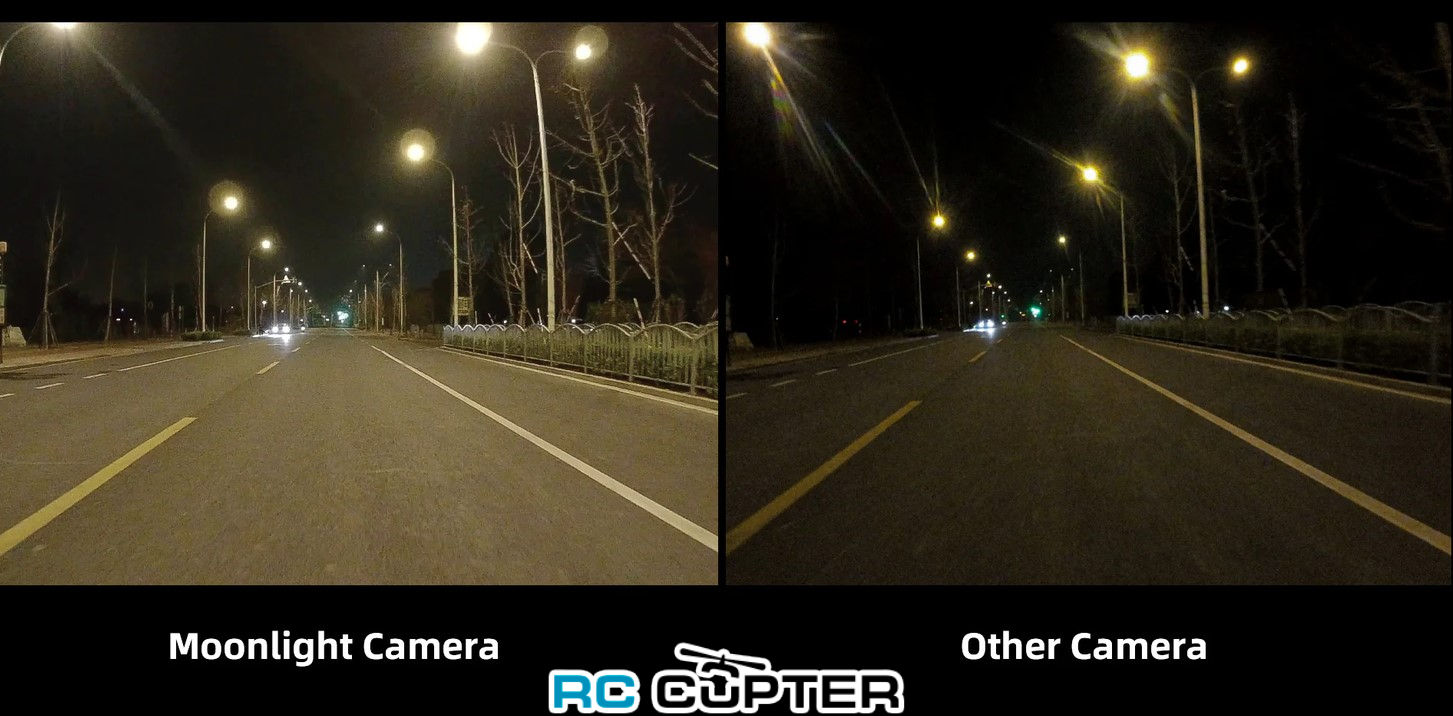

  • Feature starlight sensor, to improve image quality and performance in low-light scene shooting, ensuring night vision shooting and eliminating frequent camera switching.



  • Built-in EIS and supports Gyroflow technology, taking you a smooth and stable video quality, to facilitate and enjoy freestyle fly.



  • Comes with silicone pads for mounting the camera, ensuring stability and minimizing camera shake for perfect captures.



  • Supports manual shutter and manual ISO settings, take perfect photos regardless of any lighting limits.



  • The moonlight camera has a 160° FOV, providing you with a more natural and real picture for the ultimate flying experience.

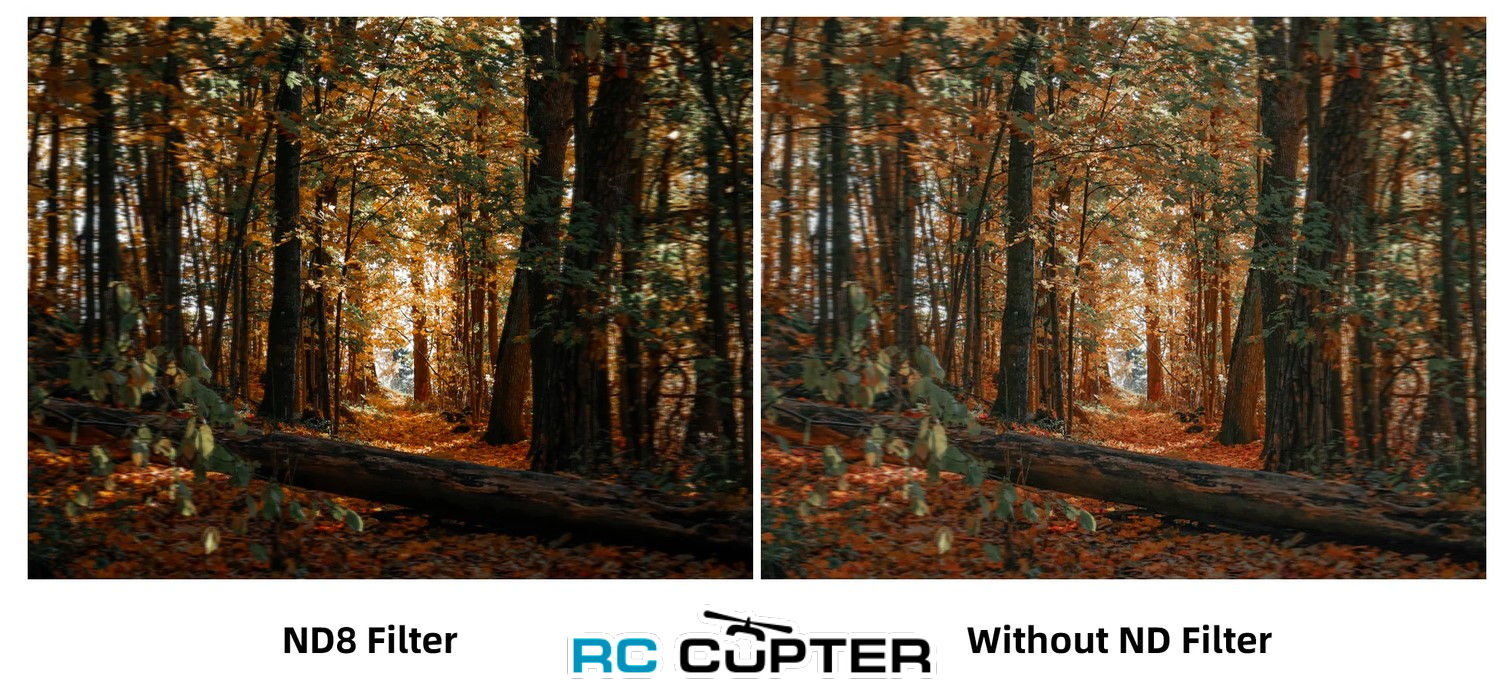

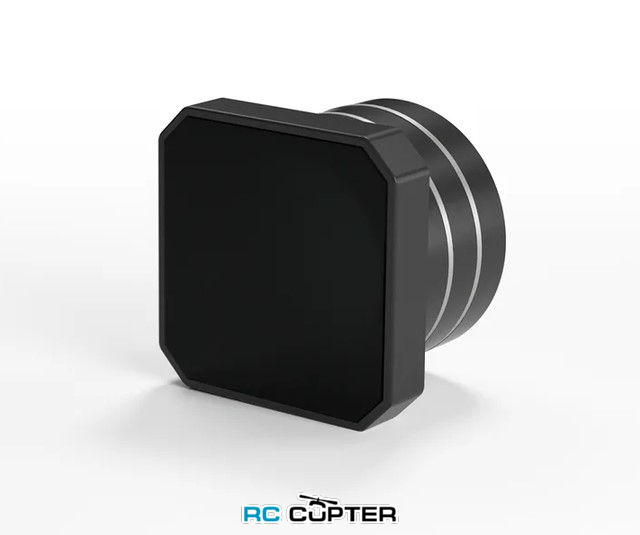

  • Come with ND8 filters to meet the needs of more different shooting scenes, to bring different effects to the shooting.

Q: When will it be shipped?A: In order to give pilots a better experience. Currently, each order will be shipped within 5 working days.

Q: Can moonlight vtx use other WS cameras?A: No, but other vtx can use moonlight camera

Q: Where to download the manual?A:  You can check it on the Download Center page.

Q: How to install the Moonlight Camera (With video board) on other VTX?A: View Moonlight Camera Installation Guide,  compatible with GT VTX, VTX V2 Module, Mini VTX V3 Module, Mini 1s And Mini 1s Lite Module.



Specification
Model Moonlight Kit
Firmware name AvatarMoonlight_Sky_X.X.X
Communication Frequency 5.725-5.850GHz
Transmitter Power (EIRP) FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm

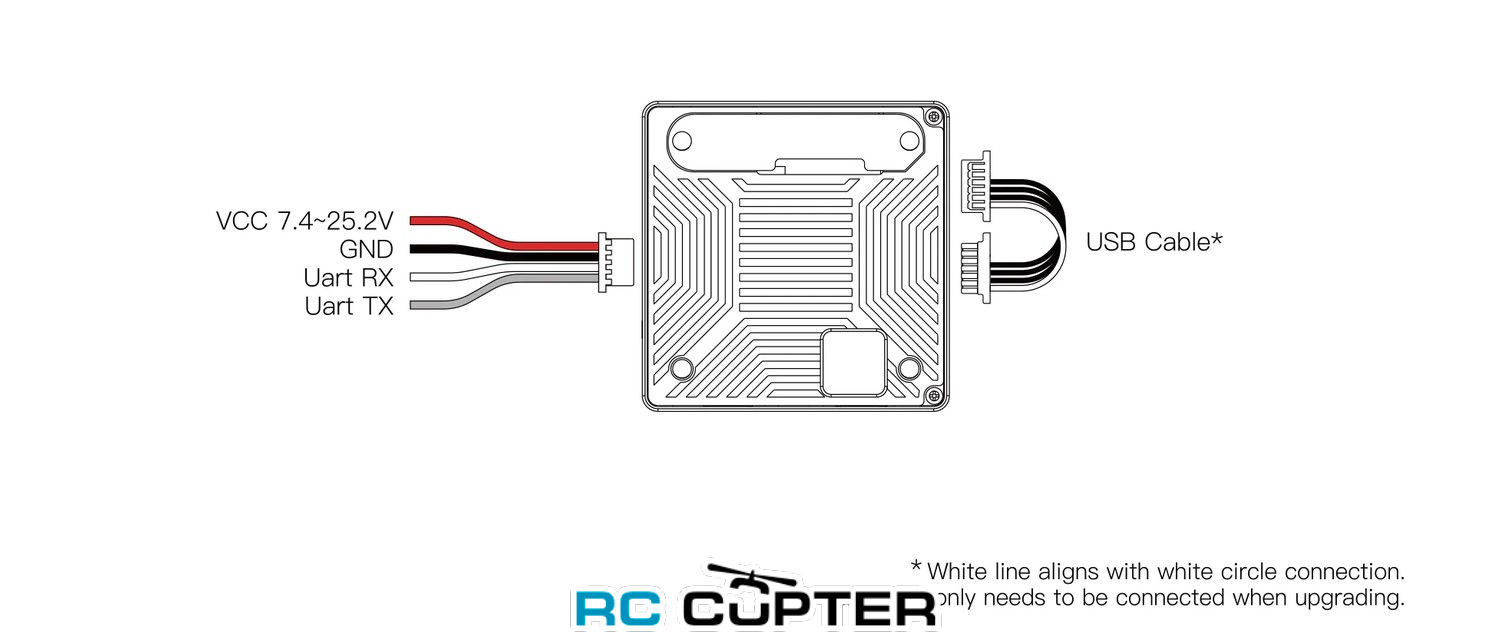

1/O Interface JST1.0*4(Power in)JST0.8*6(USB),Micro SD card Slot;IPEX-1
Sensor Starlight sensor
FOV Max 160°
Aperture F2.1
Shutter Rolling shutter
ISO 100-25600
Recording resolution 4K@30/60fps,2.7K@30/60fps,1080p@100/60fps,720p@60fps
Max Mbps 150Mbps
Video format MP4 (H.264)
3D DNR Support
Gyroflow Support
Built-in EIS Support
Wide Power Input 7.4V-25.2V
Power consumption 12V@1.4A, 8V@2.2A
Memory card type U3 MicroSD, Max 256G

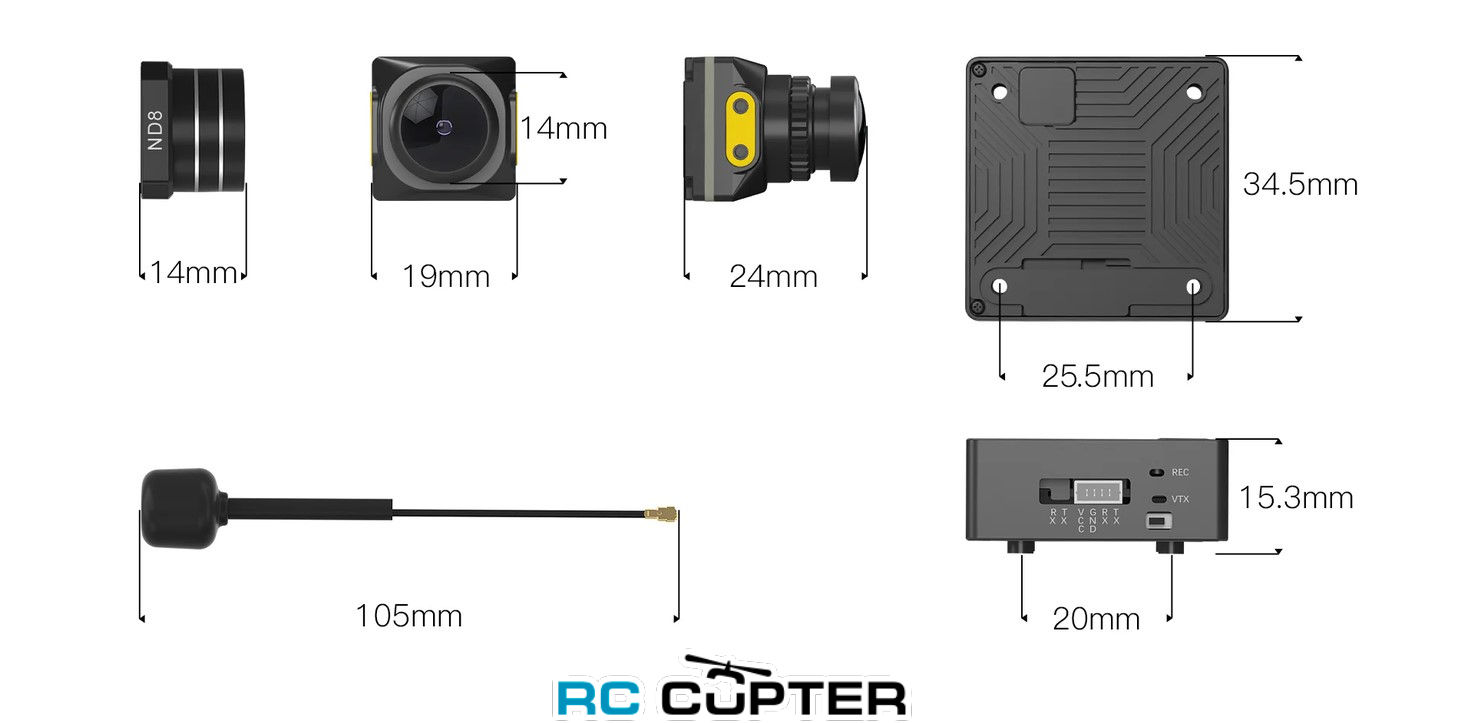

Camera size 19.6mm*19mm*24mm

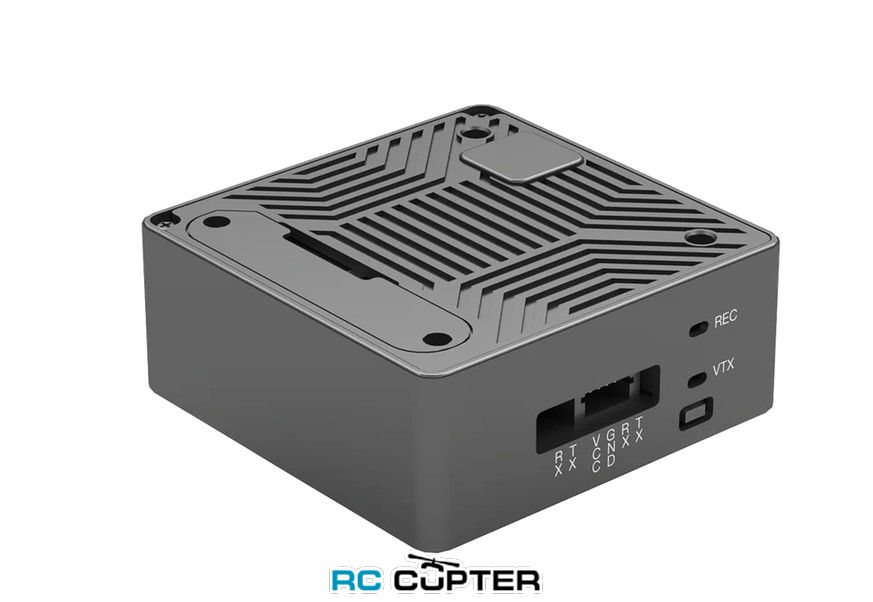

VTX size 15.3mm*34.5mm*34.5mm
VTX Installation hole distance 20*20mm/25*25mm (M2)
Weight Gross weight: 38.5g(Antenna not included)
OSD Canvas mode
Latency Average delay 22ms
Antenna 2 (IPEX)
Specification
Model Moonlight Camera
Firmware name AvatarMoonlight_Sky_X.X.X
Sensor 1/1.8”Inch
FOV 160°
Aperture F2.1
ISO 100-25600
Recording resolution 4K@30/60fps; 2.7K@30/60fps;1080p@100/60fps;720p@60fps
Max Mbps 150Mbps
Video format MP4 (H.264)
Shutter Rolling shutter
3D DNR Support
Gyro flow Support
Built-in ElS Support
Wide Power input 7.4V-25.2V
Memory card type Micro SD, Max 256G
Power consumption 12V@0.8+0.1A
Dimensions Camera:19.5mm*19mm*24mmREC Board: 34.5mm* 34.5mm*8.3mm
Weight Camera(without wire): 8.9g;Recording board: 10g
VTX Antenna
model avatar V2 antenna
Polarization LHCP
Frequency range 5600MHz-6000MHz
Average Gain 1.9dBi
VSWR <1.5
Input Impedance 50Ω
Interface IPEX-1
Dimension R15 X 45mm (without cable)
Weight 2g

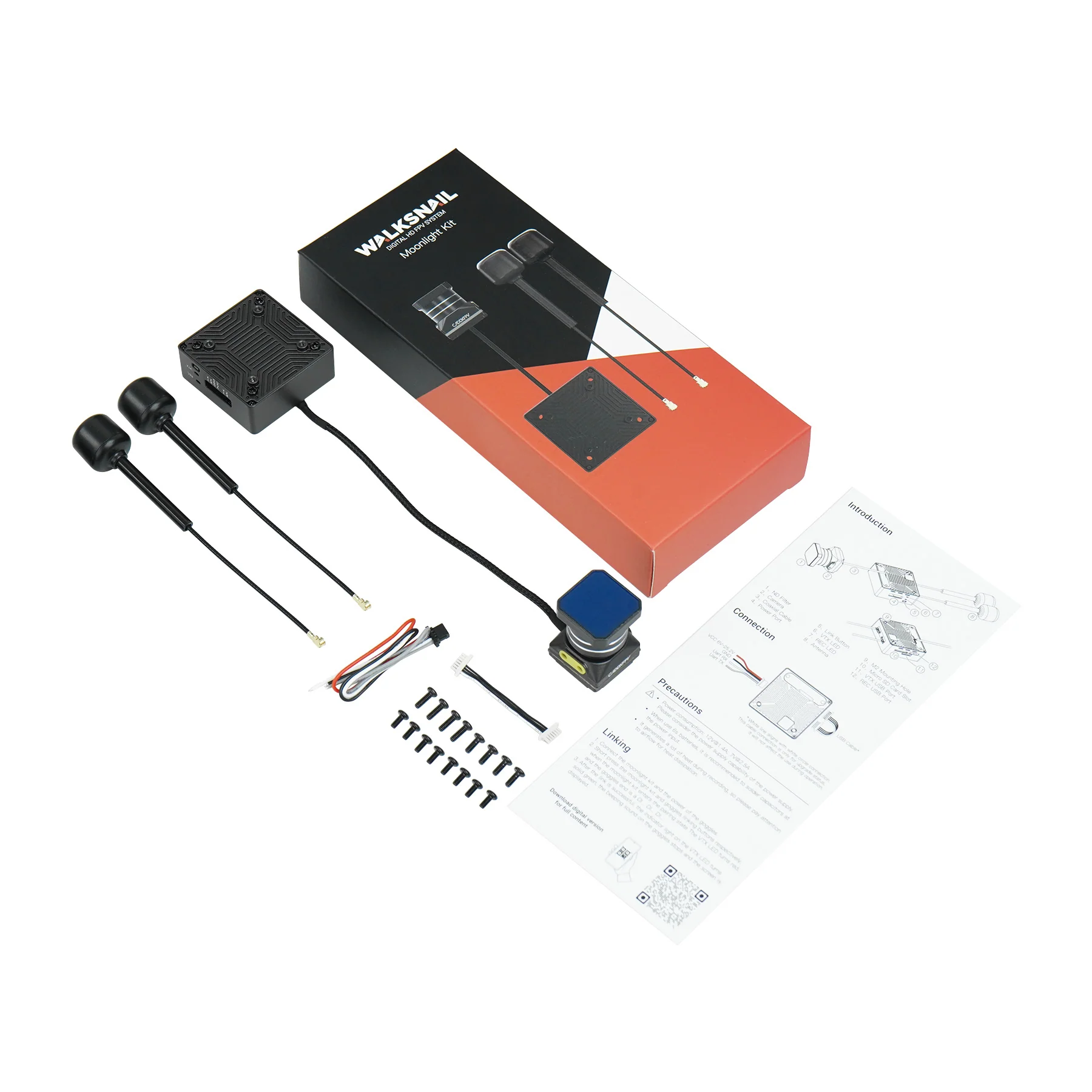

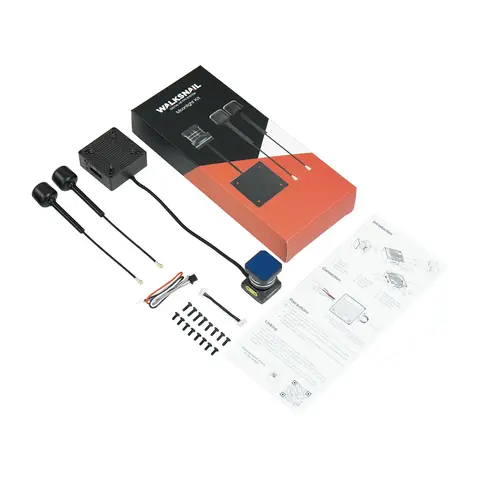

Moonlight Kit Packing List:
Walksnail Moonlight kit X1
M2*4mm round head screws X8
M2*5mm round head screws X4
M2*6mm round head screws X4
Double head 0.8mm*6PIN (4 wires) X1
4PIN silicone cable X1
Quick Start Guide X1
Moonlight Camera Packing List:
Moonlight Camera X1
M2*4mm X4
M2*5mm screw X4
M2*6mm screw X4
M2*18mm screw X4
M2 nut X8
M2*5*0.5mm washer X4
6pin 0.8mm to 6pin 0.8mm X1
6pin 0.8mm to 4pin 0.8mm X1
6pin 0.8mm to 4pin 1.0mm X1
