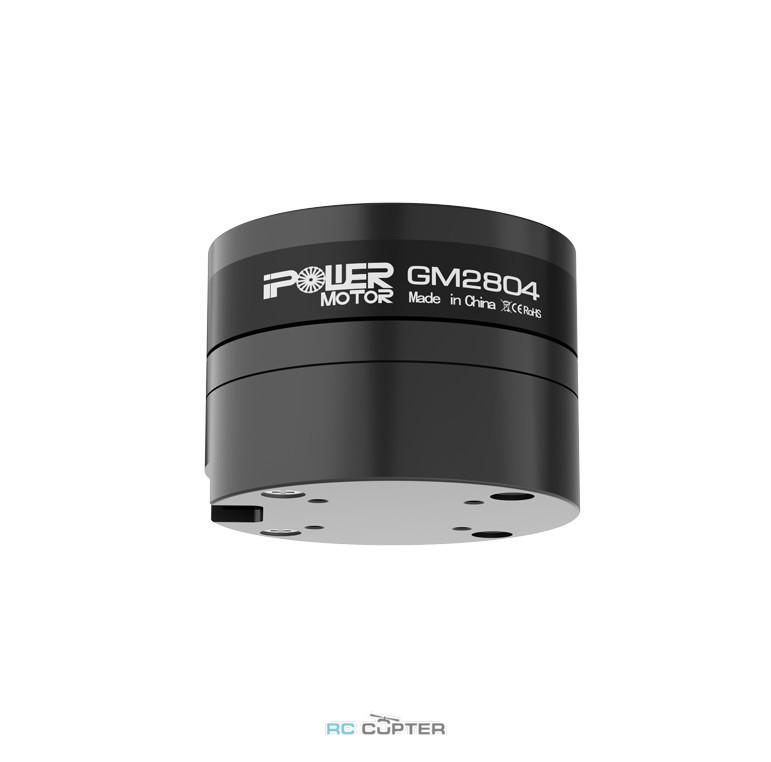

Мотор для подвеса iPower GM2804 с энкодером AS5048A

• Motor Out Diameter: Ф35±0.05mm
• Motor Height: 25±0.2mm (Included with Encoder housing)
• Hollow Shaft(OD): Ф8-0.008/-0.012 mm
• Hollow Shaft(ID): Ф6.5+0.05/0 mm
• Wire Length: 60±3mm
• Cable AWG: #24
• Motor Weight: 51±0.2g
• Wire plug: PH3P connector
• No-load current: 10V
• No-load volts: 0.09±0.05 A
• No-load Rpm: 1602~1771 RPM
• Load current: 10V
• Load volts: 0.8A
• Load torque(g): 250-350
• Motor internal resistance: 9Ω±5%（Resistance varies with temperature）
• High voltage test: DC500V 1mA @2sec
• Rotor housing runout: ≤0.1mm
• Steering (axle extension): clockwise
• High-low temperature test:
• High temperature: Keep at 60℃ for 100 hours, and the motor can work normally after 24 hours at room temperature
• Low temperature: Keep at -20℃ for 100 hours, and the motor can work normally after 24 hours at room temperature
• Maximum power: ≤25W
• Working current: 2-3S
• Working temperature: -20~60℃;10~90%RH

Комплектация:

• Мотор для подвеса iPower GM2804 с энкодером AS5048A - 1шт
