Модуль питания Matek PM12S-3 (BEC 5 и 12 В, 6 А+15 А)

Артикул: 33108
Есть в наличии
7920 руб
добавить к сравнению перейти к сравнению
  • Описание
  • Характеристики
  • Отзывы (0)

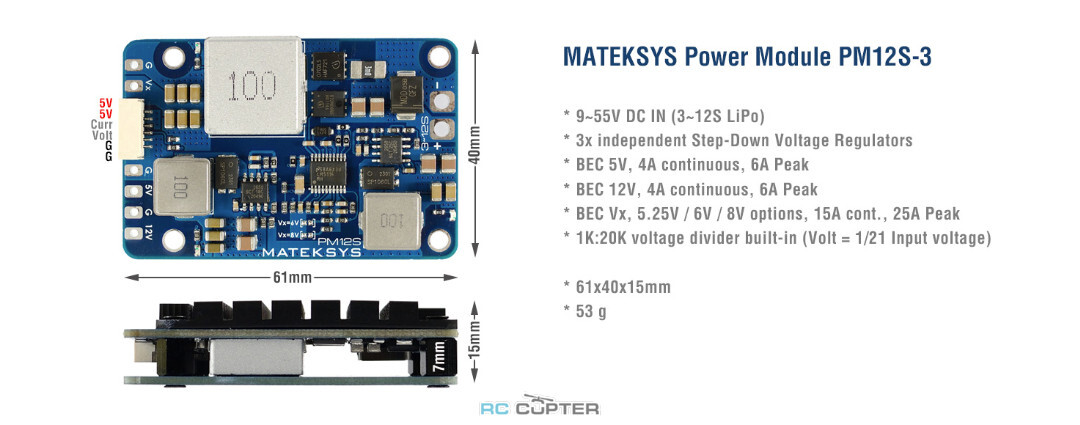

Модуль питания Matek PM12S-3.









  • Wide 9V to 55V Operating Input Range with TVS protection
  • 3x independent Step-Down Voltage Regulators
  • BEC Vx,  5.2V / 6V / 8V output options.  supports typical continuous output current of up to 15A, Peak current of up to 25A.
  • BEC 5V (Fixed), 4A continuous
  • BEC 12V (Fixed), 4A continuous
  • 1K:20K voltage divider built-in (Volt = 1/21 Input voltage)
  • Current sensor signal passthrough pad

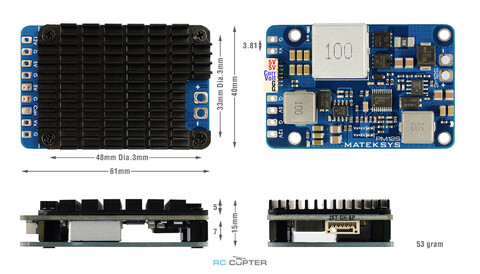

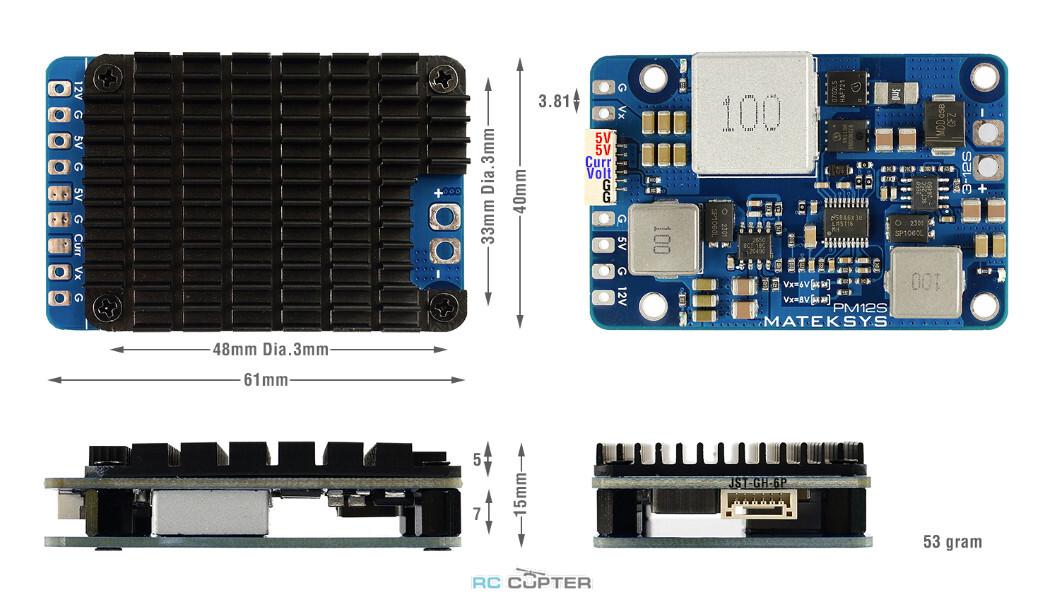

  • Size & Weight: 61x40x15mm, 53g
BEC Vx

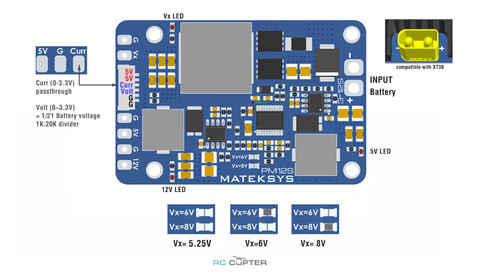

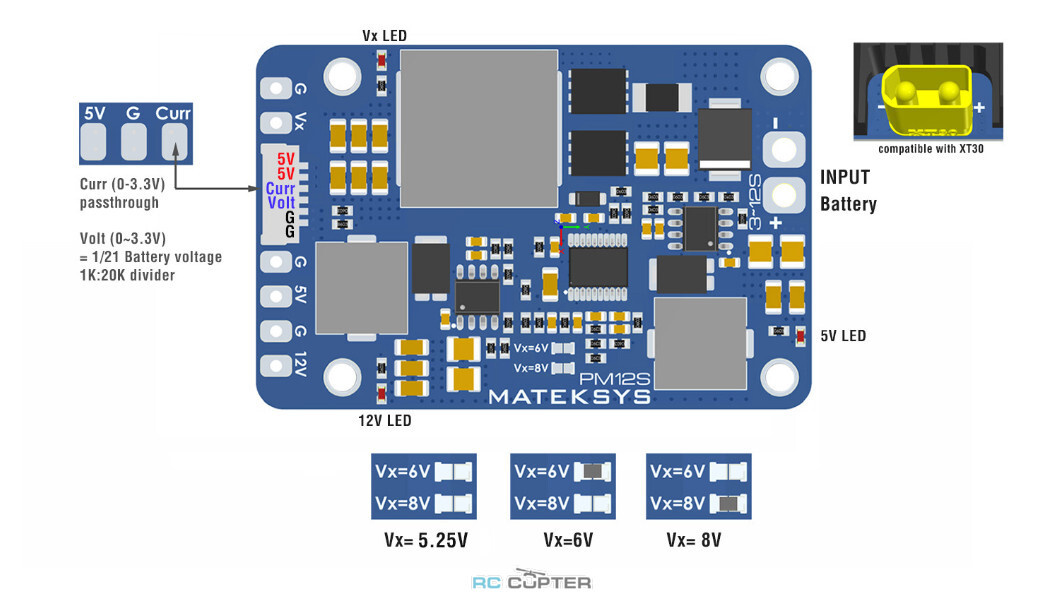

  • Output voltage 5.25V / 6V / 8V options.
  • Output voltage tolerance 1.5%
  • Synchronous switching step-down (or buck) regulator with typical efficiencies of 90% to 96%
  • Supports typical continuous output current of up to 15A,  Peak current of up to 25A.
  • Output ripple  32mV (VIN=50V,  Output 5.25V @ 15A),  43mV (VIN=50V,  Output @ 5A)
  • Standby current: 10~20mA
  • Reverse Input voltage protection: No
  • Thermal Shutdown
  • Output Short-circuit tolerant (2 seconds)
  • Overcurrent protection & self-recovery
  • Tip: Input voltage >= 15V is required for continuous output current of 15A
BEC 5V
  • Output voltage 5.2V, tolerance 1.5%
  • Supports continuous output current of up to 4A,  Peak current of 6A
  • Output ripple  20mV (VIN=24V,  Output @ 5A),  50mV (VIN=50V,  Output @ 5A)
  • Reverse Input voltage protection: No
  • Thermal Shutdown
  • Output Short-circuit tolerant (2 seconds)
  • Overcurrent protection & self-recovery
BEC 12V
  • Output voltage 12V, tolerance 1.5%
  • Supports continuous output current of up to 4A,  Peak current of 6A
  • Output ripple  18mV (VIN=24V,  Output @ 5A),  32mV (VIN=50V,  Output @ 5A)
  • Reverse Input voltage protection: No
  • Thermal Shutdown
  • Output Short-circuit tolerant (2 seconds)
  • Overcurrent protection & self-recovery
  • Tip: Input voltage >= 13V is required for stable 12V output

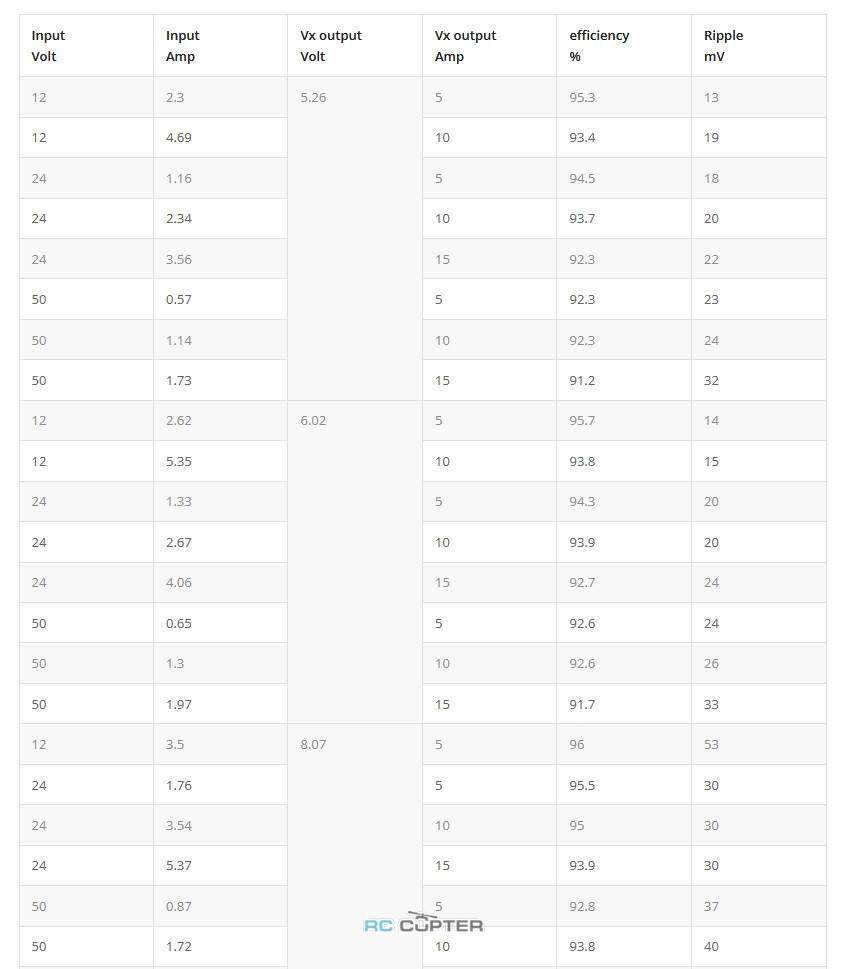

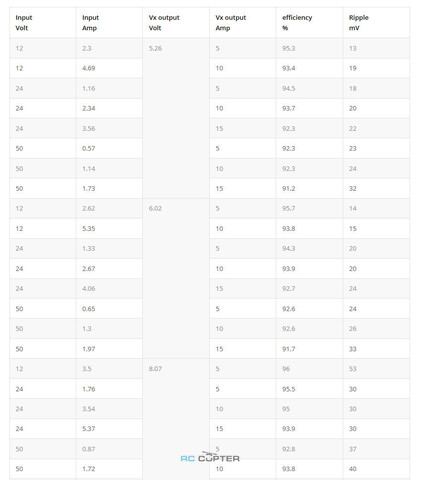

modul-pitaniya-matek-pm12s-3-04.jpgmodul-pitaniya-matek-pm12s-3-05.jpg Комплектация:
  • Модуль питания Matek PM12S-3 - 1 шт.
  • Low ESR capacitor ZLJ 63v 390uf - 1 шт
  • Совет: Если входное напряжение шумит, необходимо припаять конденсатор к входным площадкам.



Вес: 53 г
Производитель: Matek
