Контроллер Tarot X TL8X002 для складных шасси Electronic Landing Gear Controller

Контроллер Tarot X TL8X002 для складных шасси Electronic Landing Gear Controller

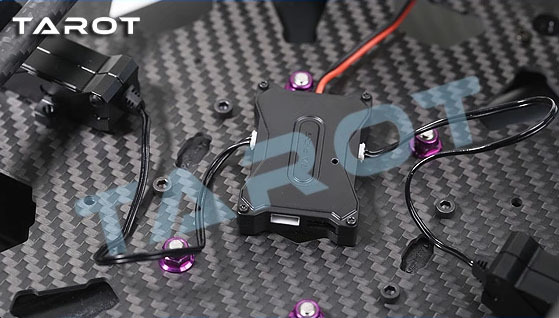

Подходит для

•    Electric landing gear controller             TL8X002
•    New electric landing gear                    TL65S01
•    Small electric landing gear                   TL65B43
•    Small electric landing gear group           TL65B44
•    Medium electric landing gear                TL8X003
•    X-series electric landing gear               TL96030
•    Large electric landing gear                  TL4N001
•    Large elecric landing gear group           TL4N002

Tarot TL8X002 Product Function Description:

1. reverse power protection: The power of positive and negative polarity will not damage the landing gear control panel.
2. receiver connection description: Enter a channel through 3P ​​line which connected to ordinary receiver, the signal for the PWM, pulse width of zero value is 1520us, when the pulse width is greater than 1520us  which is opening the landing gear, the pulse width is less than 1520us is closed landing gear.
3. receiver connection instructions: if there is no receiver signal when initial power-up , the indicator flashes rapidly until the receiver detects the signal.
4. Power Protection: After initial power-up, if the singnal given by the receiver is to close the landing gear, landing gear will not respond, and the indicator light flashes slowly, until the receiver instruction becomes open the landing gear, the light will go out.
5, work instructions: When the retractable landing gear operation is being performed, the indicator will lit until the landing gear completely stopped, then the light goes out.
6. runaway protection: During working process, the landing gear will automatically put down, after the loss of receiver signal.




How to check the motor polarity:


When the landing gear works properly, remove the receiver signals to let the control panel to enter the failsafe state, if the state is to put the landing gear then the positive and negative electrical wiring is correct, otherwise described motor positive and negative reversed.

Tarot TL8X002 Trouble Shooting:

1. power did not respond: Please check the power of positive and negative connections are correct.
2. landing gear stops in the middle during the operation: Please check if there are objects blocking retractable landing gear.
3. when performing  the action retractable landing gear does not respond: Check if there are objects blocking retractable landing gear.
4. after the landing gear completely stopped, the light does not go out: Check whether the supply voltage can meet the requirements.
5. power indicator has been rapidly flashing: Check the receiver is connected correctly.

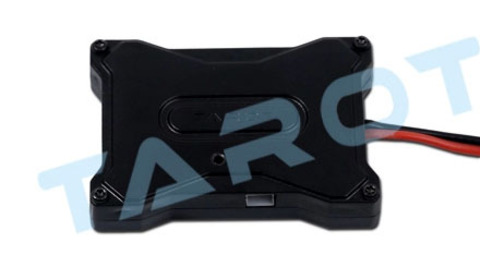

Tarot Electric Retractable Landing Gear Controller TL8X002

Operating voltage: 3S-6S (12.6V --- 25.2V)
Minimum voltage: 10V
Maximum voltage: 26V

Includes:

1x electric controller for Tarot retractable landing gears
